AD1212HB-A71GL ADDA 12V DC Axial Fan

Description

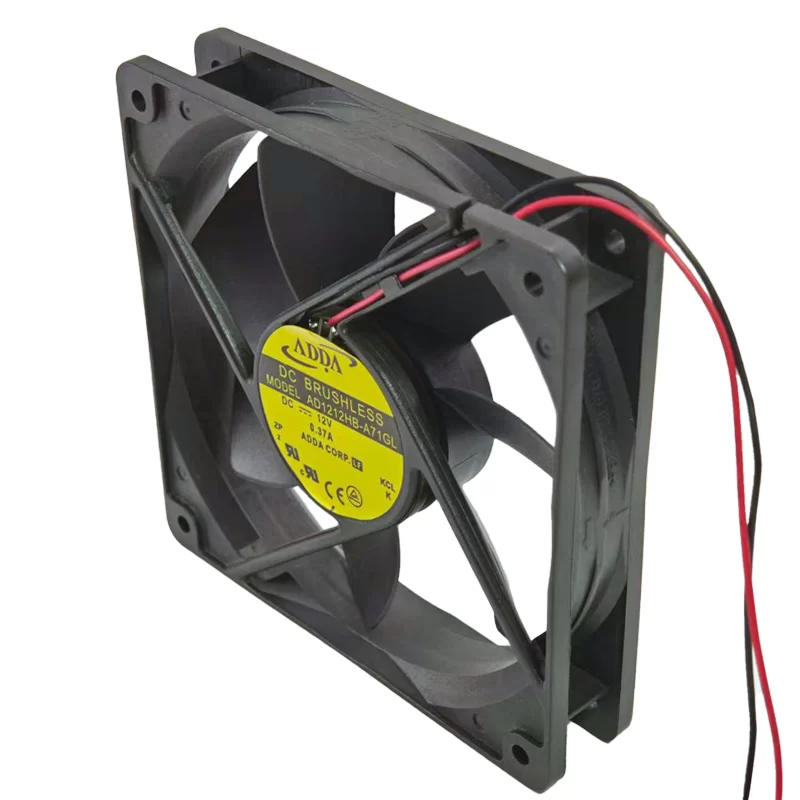

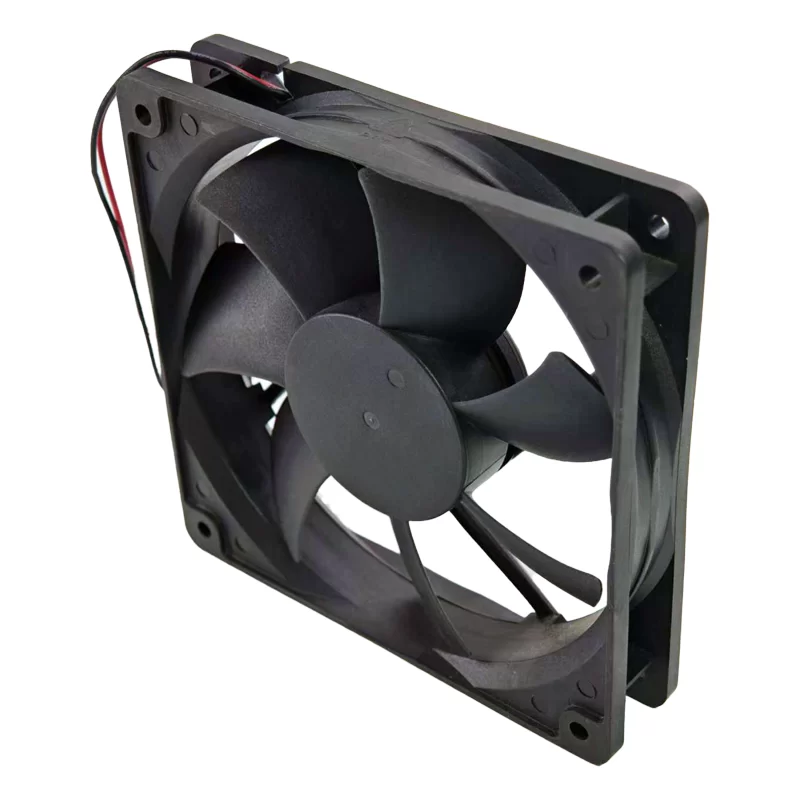

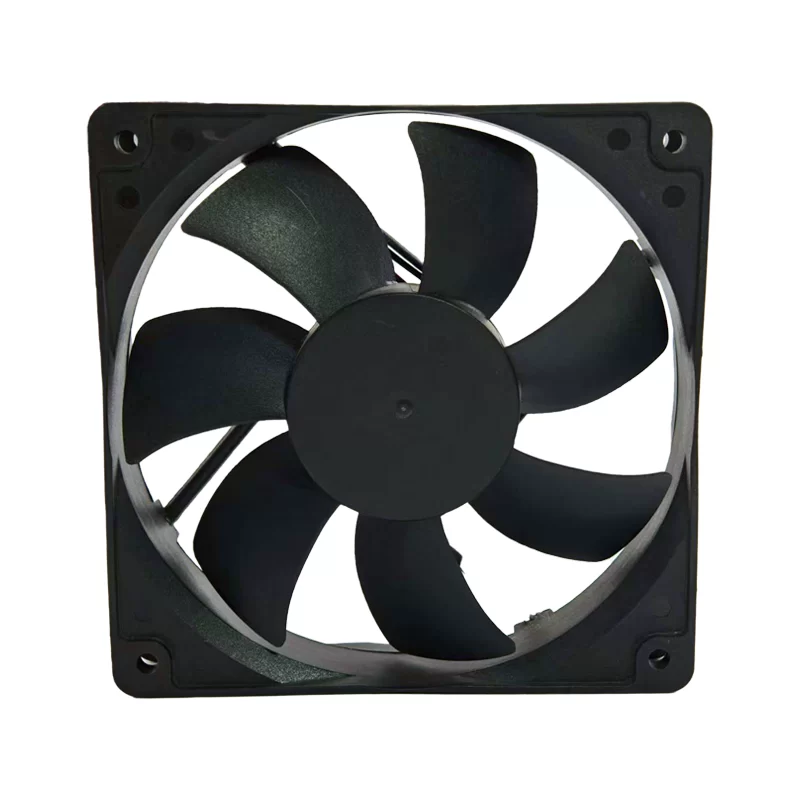

The ADDA AD1212HB-A71GL is a 12V DC Axial Fan with dimensions of 120x120x25mm. It draws 0.37A (4.44W), spins at 2200RPM, and delivers an airflow of 144.8m³/h (85.2CFM) with a static pressure of 33.38Pa (0.134IN H2O), while producing a noise level of 39.1dB(A). This fan features durable ball bearings, and its frame and impeller are constructed from plastic. It comes with a 2-wire termination. It is widely used in power supplies, PCs, industrial control equipment, and general cooling applications requiring reliable airflow.

AD1212HB-A71GL Fan Parameters
Model: AD1212HB-A71GL
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 7.0 .. 13.8 V DC
Rated Current: 0.37 A
Power Consumption: 4.44 W
Speed: 2200 RPM
Airflow: 144.8 m³/h (85.2 CFM)
Static Pressure: 33.38 Pa (0.134 IN H2O)
Noise Level: 39.1 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 50000 h at 40°C
Termination: 2-wire leads
Motor Protection: Not specified
Features: Not specified
Approval: UL, CUL, TUV, CE
Application: Power supplies, desktop PCs, industrial control equipment, test and measurement devices, and general cooling.
