Description

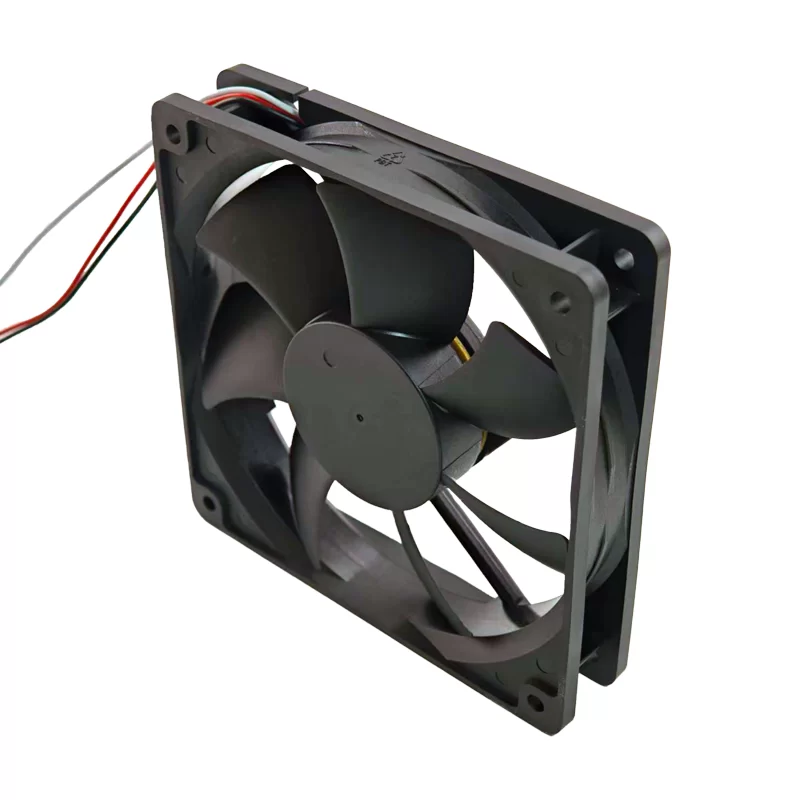

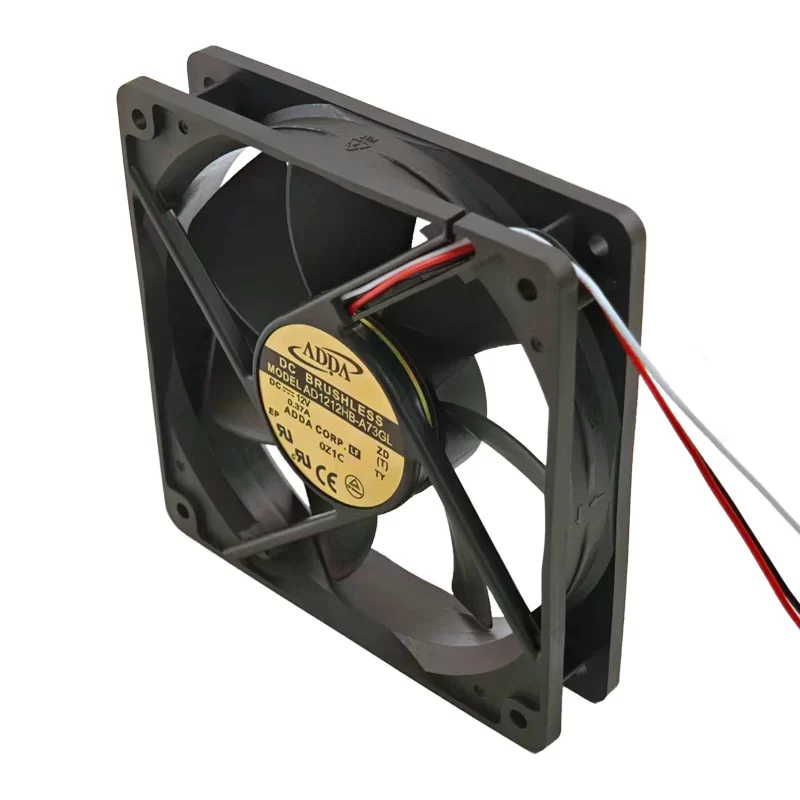

The ADDA AD1212HB-A73GL is a high-performance DC Axial Fan with dimensions of 120×120×25 mm. This High Speed model operates on a 12 VDC Rated Voltage with a Rated Current of 0.37 A, resulting in a Rated Input Power of 4.44 W. It is equipped with a Ball Bearing system for longevity and uses 3-wire leads to include a Locked Rotor Sensor (L.R.S.) output for speed monitoring. The fan achieves a Rated Speed of 2,200 RPM, providing a significant Airflow of 85.2 CFM (144.7 m3/h) and a Static Pressure of 0.136 inAq. It is widely used in server power supplies, desktop PCs, and industrial cabinet cooling systems.
AD1212HB-A73GL Fan Parameters
Model: AD1212HB-A73GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 120×120×25 mm
Motor Design: Brushless DC Motor
Bearing Type: Ball Bearing
Rated Voltage: 12 VDC
Rated Current: 0.37 A
Rated Input: 4.44 W
Rated Speed: 2,200 RPM
Airflow: 85.2 CFM (144.7 m3/h)
Static Pressure: 0.136 inAq (3.45 mmAq)
Noise Level: 39.1 dB/A
Weight: 156 g
Operating Voltage Range: 10.8 VDC to 13.2 VDC
Number of blades: 7
Frame Material: Plastic (P.B.T., UL94V-0)
Impeller Material: Plastic (P.B.T., UL94V-0)
Termination: 3-Wire Leads (with Locked Rotor Sensor / Tachometer)
Life Expectancy: 50,000 h (at 40∘ C)
Safety Approval: UL, CUL, CE
Application
The AD1212HB-A73GL is a highly versatile and common cooling fan. It is an excellent choice for general-purpose applications requiring high volume airflow in a standard 120 mm frame, such as desktop computer cases, server chassis, large electronic enclosures, and HVAC system ventilation where reliable operation and speed feedback are required.
