Description

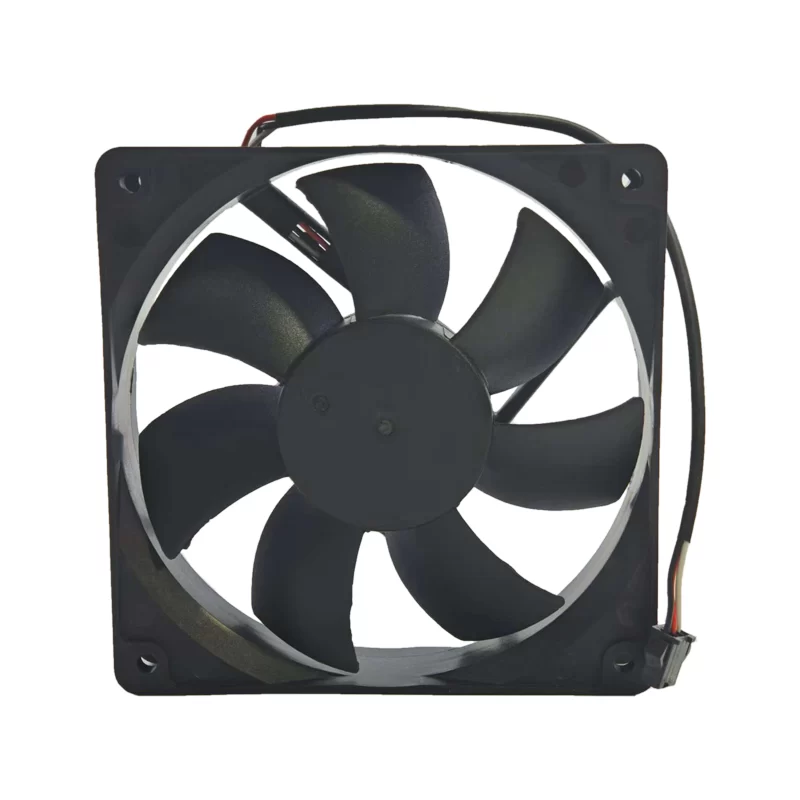

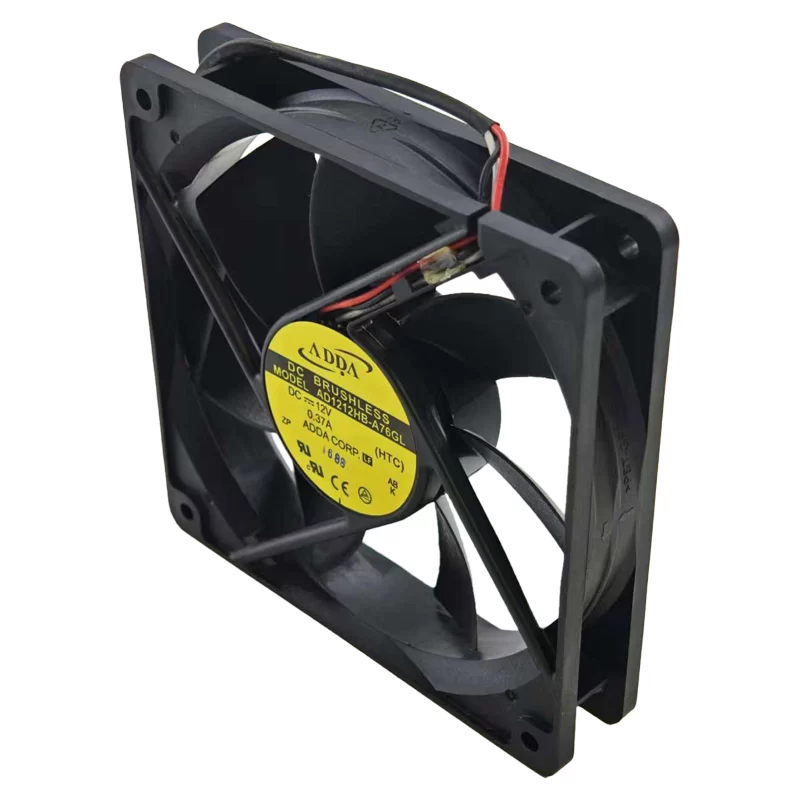

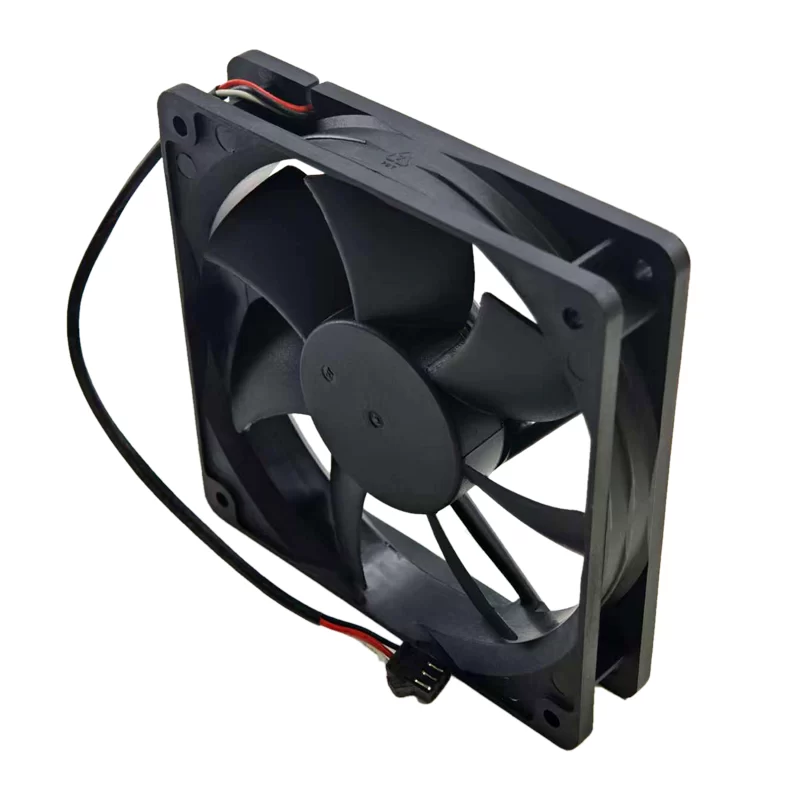

The ADDA AD1212HB-A76GL is a DC axial fan measuring 120 x 120 x 25 mm. It operates on 12V DC, drawing 0.37 A of current and consuming 4.44 W of power. The fan delivers an airflow of 85.2 CFM (144.8 m³/h) and a static pressure of 0.136 inch H₂O (33.9 Pa). It runs at a speed of 2200 RPM with a noise level of 39.1 dB(A). This fan uses ball bearings for enhanced durability and features three-wire leads, which provide a tachometer signal for speed monitoring. This fan is a common choice for general-purpose cooling in electronic devices.
AD1212HB-A76GL Fan Parameters
Manufacturer: ADDA
Model: AD1212HB-A76GL
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.37 A
Power Consumption: 4.44 W
Airflow: 85.2 CFM (144.8 m³/h)
Static Pressure: 0.136 inch H₂O (33.9 Pa)
Speed: 2200 RPM
Noise Level: 39.1 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Weight: 156 g
Application: The AD1212HB-A76GL is a versatile fan suitable for a wide range of cooling applications. Its balanced performance and low noise make it an excellent choice for PC cases, power supplies, servers, and networking equipment, especially in systems where fan speed monitoring is necessary for optimized cooling.
