Description

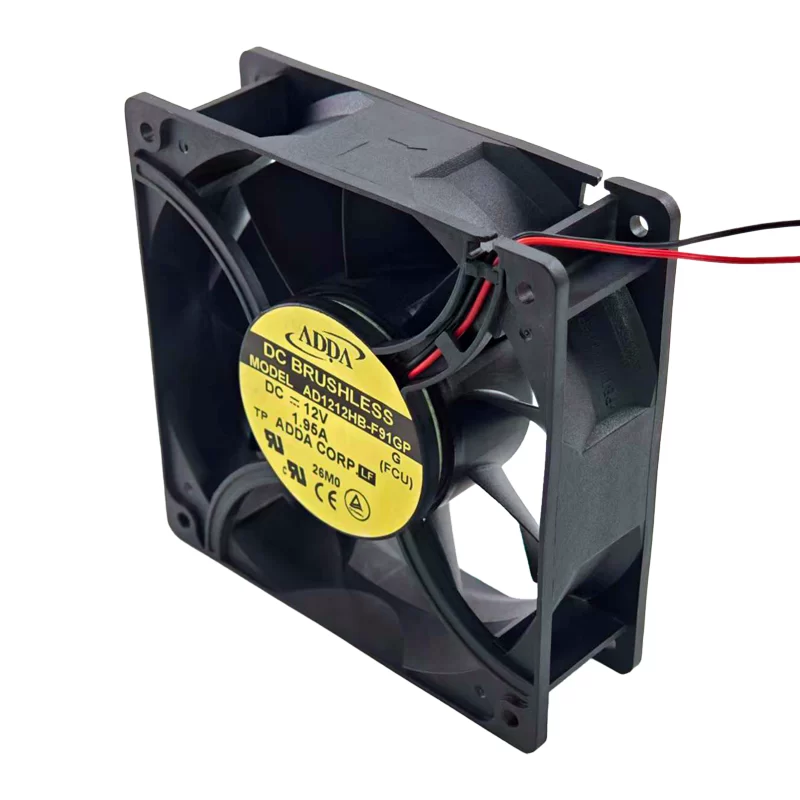

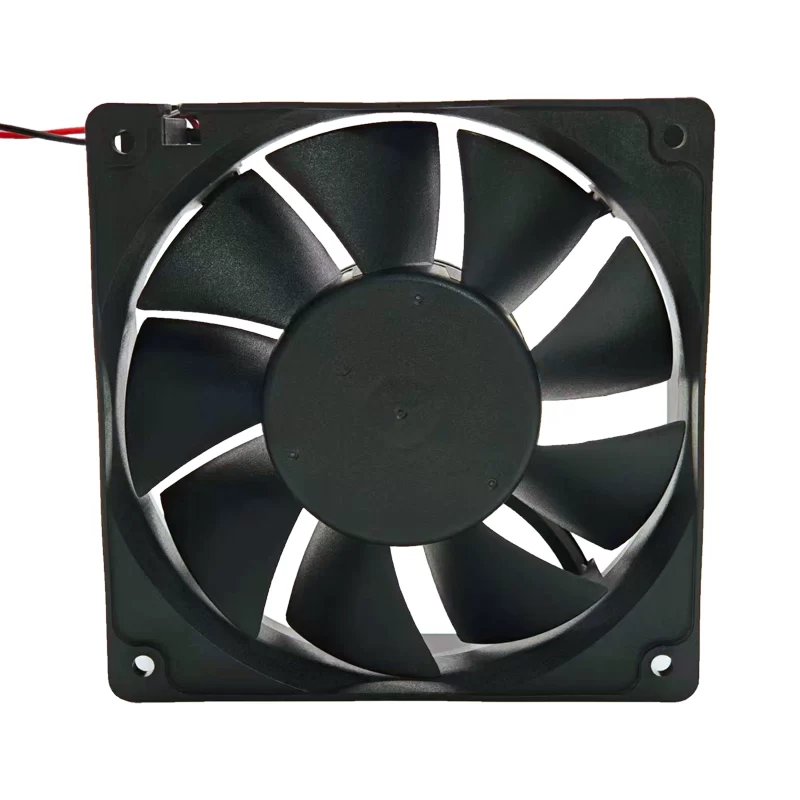

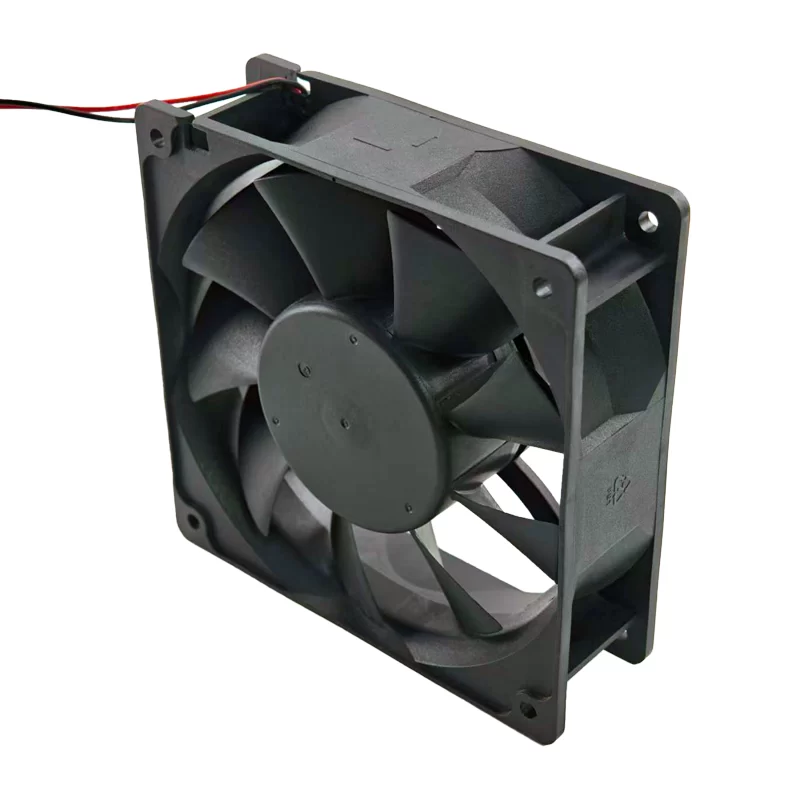

The ADDA AD1212HB-F91GP is a high-performance DC Axial Fan with dimensions of 120 x 120 x 38 mm. Operating on a 12VDC power supply, this fan draws a high rated current of 1.95A, resulting in an input power of 23.40W. It utilizes durable Double Ball Bearings for reliability. This “High Speed” model achieves a rotational speed of 4300RPM, delivering an exceptional maximum airflow of 339.8m³/h (200.00CFM) and generating a high static pressure of 156.9Pa (0.63inAq). As part of ADDA’s Great Performance series, it is designed for maximum thermal output in restrictive cooling applications.
| Parameter | Value |
| Model | AD1212HB-F91GP |
| Manufacturer | ADDA |
| Type | DC Axial Fan |
| Dimensions | 120 x 120 x 38 mm |
| Nominal Voltage | 12VDC |
| Rated Current | 1.95A |
| Input Power | 23.40W |
| Bearings | Double Ball Bearings |
| Speed | 4300RPM |
| Airflow | 339.8m³/h (200.00CFM) |
| Static Pressure | 156.9Pa (0.63inAq) |
| Noise Level | 61.0dBA |
| Frame Material | Plastic (UL94V-0) |
| Impeller Material | Plastic (UL94V-0) |
| Connection | Wire Leads |
ApplicationThe AD1212HB-F91GP is a powerful, high-performance cooling solution essential for managing heat in demanding, high-resistance electronic enclosures. It is widely used in high-performance computing (HPC) servers, power supplies, industrial equipment, networking devices, and other systems that require maximum heat dissipation at a $12text{VDC}$ operating voltage.
