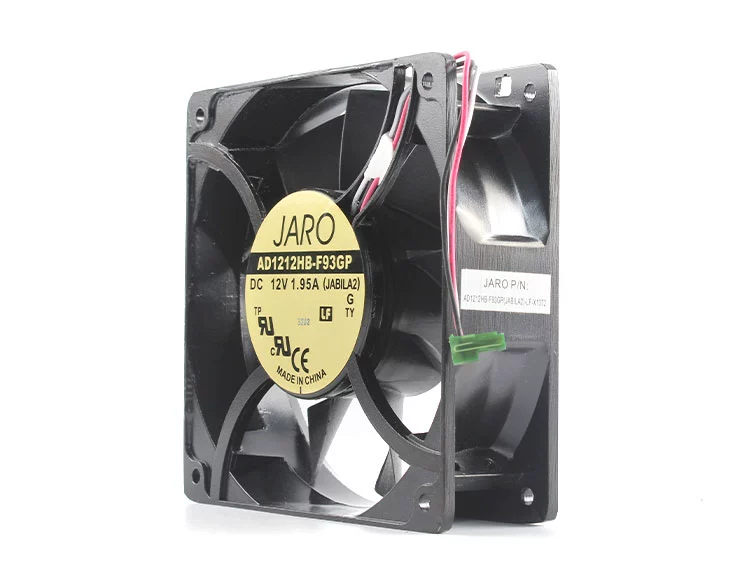

AD1212HB-F93GP JARO 12V 1.95A 12cm fan

Description

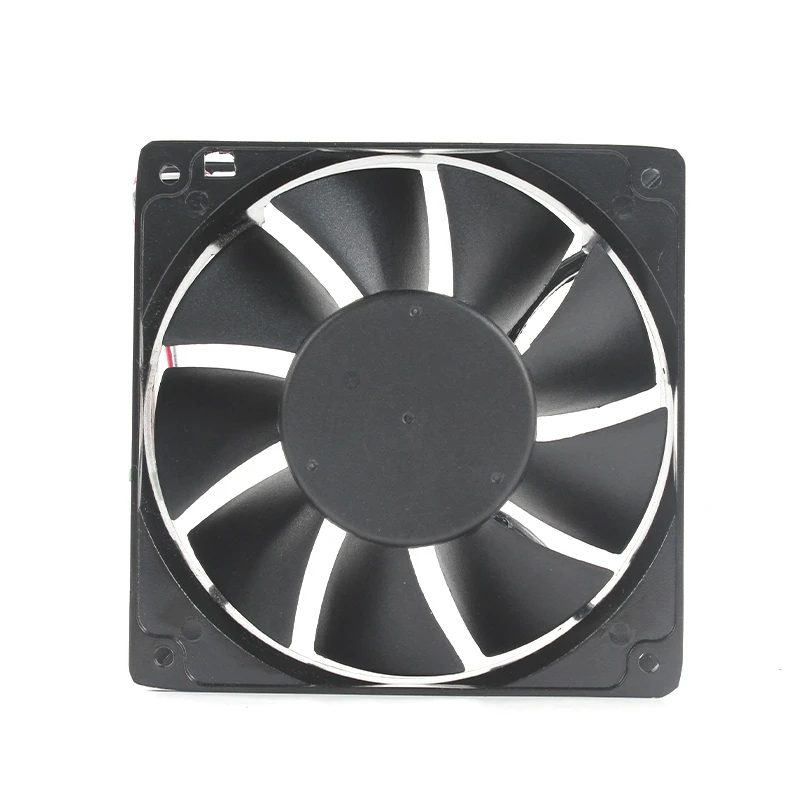

The ADDA AD1212HB-F93GP is a high-performance DC Axial Fan with dimensions of 120 mm x 120 mm x 38 mm. It features a Brushless DC Motor and utilizes 9 blades within a UL94V-0 plastic frame. Operating on 12 VDC, it draws 1.95 A for a power consumption of 19.44 W, achieving an extreme speed of 4300 RPM. This fan delivers a massive airflow of 339.4 m³/h (200 CFM) and a maximum static pressure of 0.64 inAq, with a noise level of 61 dBA. It uses a Ball Bearing system and is a 3-wire fan equipped with IC + Alarm features for critical cooling applications.

AD1212HB-F93GP Fan Parameters
Model: AD1212HB-F93GP
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 120 mm x 120 mm x 38 mm
Motor Design: Brushless DC Motor
Number of blades: 9
Nominal Voltage: 12 VDC
Operating Voltage Range: 6 VDC to 13.2 VDC
Rated Current: 1.95 A
Power Consumption: 19.44 W
Speed: 4300 RPM
Airflow: 339.4 m³/h (200 CFM)
Static Pressure: 0.64 inAq (16 mmAq)
Noise: 61 dBA
Bearing Type: Ball Bearing (Dual Ball)
Features: IC + Alarm (Rotation Detector/Lock Rotor Signal)
Termination Style: Wire Leads (3-Pin)
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10 °C to 75 °C
Life Expectancy: 50000 hours min. at 25 °C
Weight: 290 g

Application
The ADDA AD1212HB-F93GP is an Ultra-High Speed DC Axial Fan designed for intensive thermal management in environments with high airflow resistance. Its powerful airflow (339.4 m³/h) and high static pressure (0.64 inAq) are crucial for server racks, high-end workstations, telecommunications cabinets, and industrial power supplies that require reliable, high-performance cooling to overcome system impedance. The 3-wire connection includes a signal for fan status monitoring (Alarm), ensuring system reliability in critical operations.
