Description

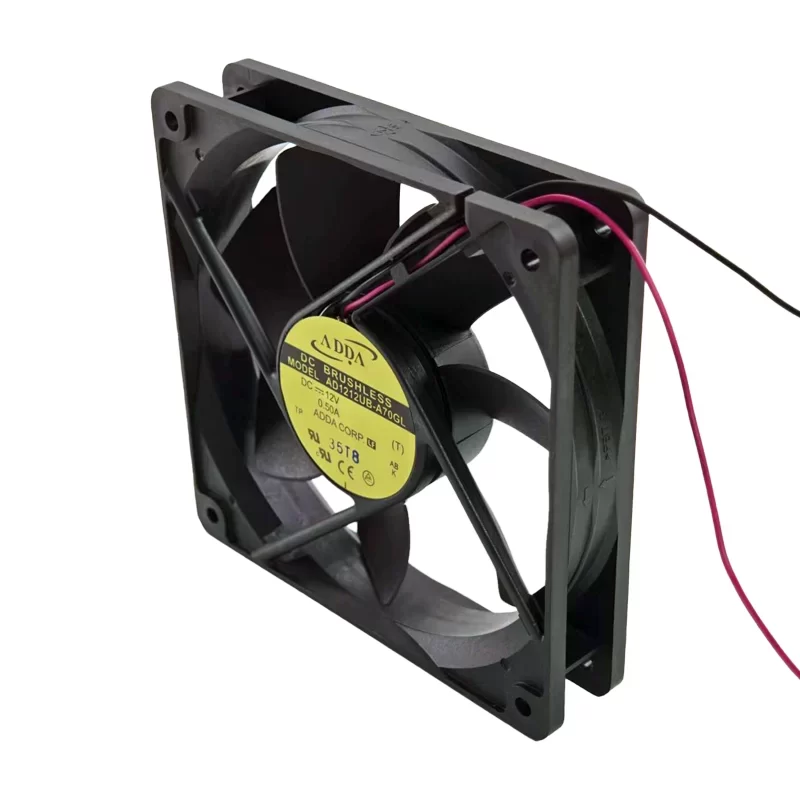

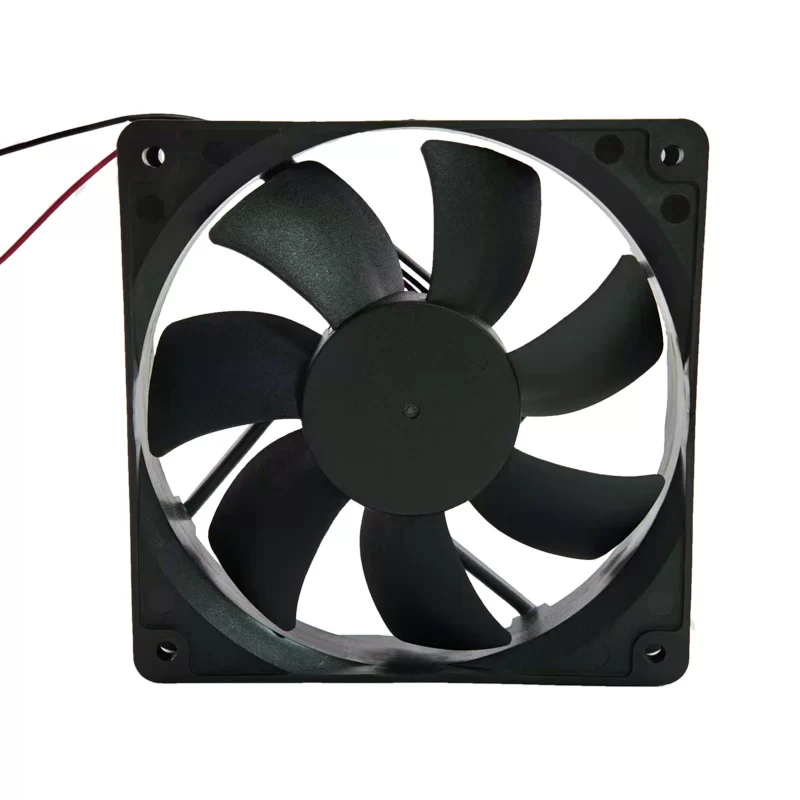

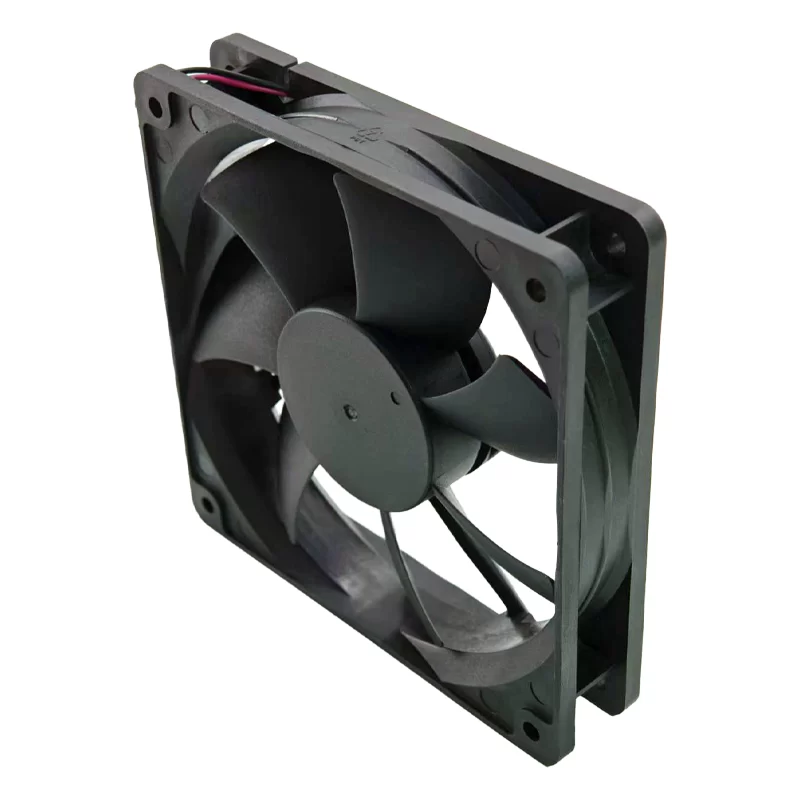

The ADDA AD1212UB-A70GL is a high-performance DC axial fan with measuring dimensions of 120 x 120 x 25 mm. It operates on a rated voltage of 12V DC, drawing 0.50 A of current and consuming 6.0 W of power. This fan is designed to maximize airflow, providing 98.6 CFM (167.5 m3/h) and a static pressure of 0.179 inch-H₂O (44.6Pa) at a speed of 2500 RPM, while operating with a noise level of 43.3 dB(A). Featuring a durable ball bearing system, the fan has an expected service life of 50,000 hours at 25°C. The housing and impeller are constructed from PBT plastic, and this model connects using a 2-wire lead.
AD1212UB-A70GL Fan Parameters
Manufacturer: ADDA
Model: AD1212UB-A70GL
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12 V DC
Current Rating: 0.50 A
Power Consumption: 6.0 W
Airflow: 98.6 CFM
Static Pressure: 0.179 inch-H₂O
Speed: 2500 RPM
Noise Level: 43.3 dB(A)
Weight: 156 g
Number of blades: 7
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 hours at 25 °C
Approval: UL, cUL, CE
Application
The AD1212UB-A70GL fan is widely used for computer chassis cooling, server rack ventilation, industrial power supplies, and other electronic enclosures requiring high-volume spot cooling and robust performance.
