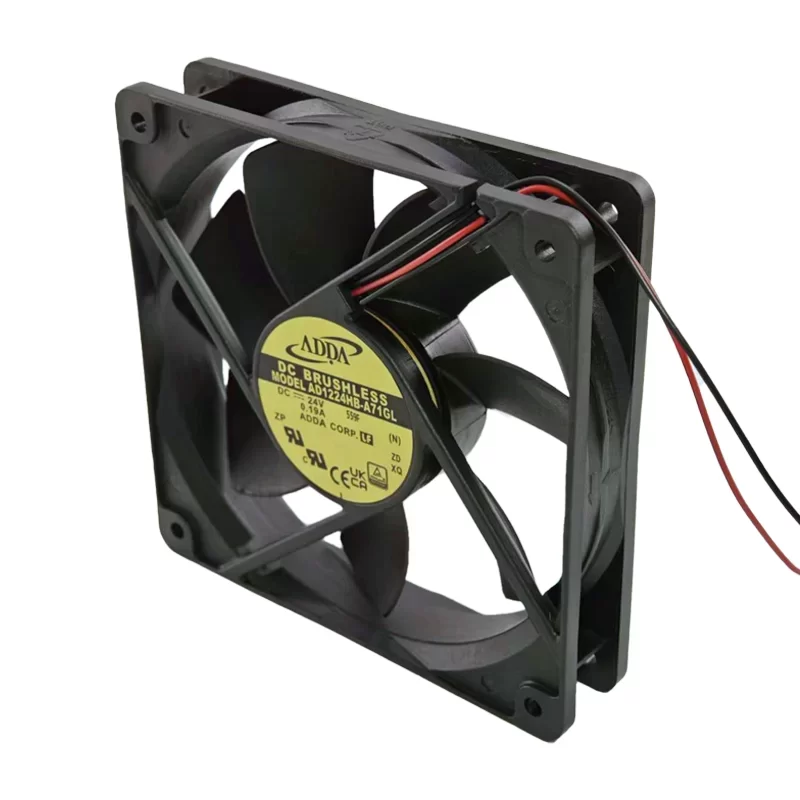

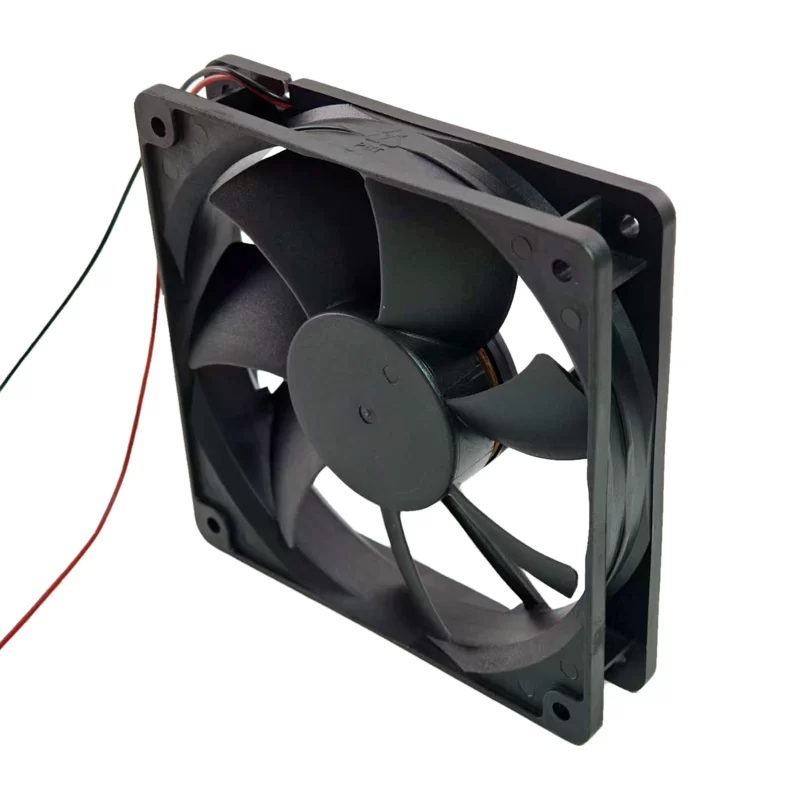

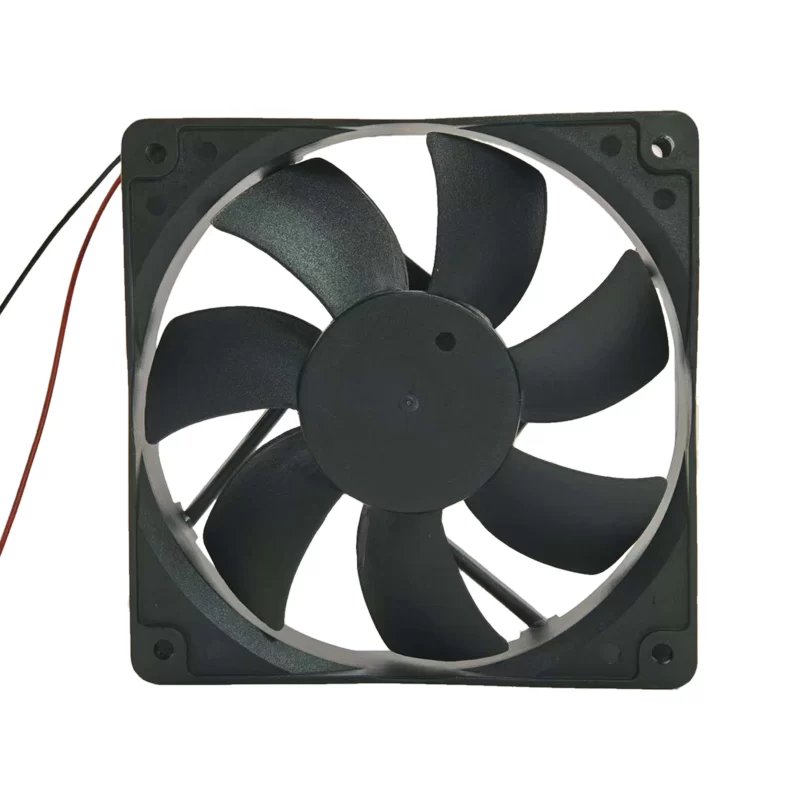

AD1224HB-A71GL ADDA 24V DC Axial Fan

Description

The ADDA AD1224HB-A71GL is a high-performance DC Axial Fan with dimensions of 120×120×25 mm. Operating at 24 V, this High Speed fan has a Rated Current of 0.19 A (or 0.13 A) and a Power Consumption of 4.56 W (or 3.12 W). It utilizes a Ball Bearing system and operates at a Nominal Speed of 2,200 RPM. It delivers an Airflow of 144.8 m3/h (85.2 CFM) and Static Pressure of 33.9 Pa (0.136 inAq), with a Noise Level of 39.1 dB(A).

AD1224HB-A71GL Fan Parameters
Model: AD1224HB-A71GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 120×120×25 mm
Operating Voltage: 24 V
Rated Current: 0.19 A
Power Consumption: 4.56 W
Nominal Speed: 2,200 RPM
Airflow: 144.8 m3/h (85.2 CFM)
Static Pressure: 33.9 Pa (0.136 inAq)
Noise Level: 39.1 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Weight: 156 g
Safety Approvals: UL, cUL, TUV, CE
RoHS Status: Compliant

Application
The AD1224HB-A71GL is a versatile High Speed fan commonly employed in standard chassis and equipment cooling applications. Its 120 mm size and moderate Airflow and Static Pressure levels make it highly suitable for cooling computer server racks, industrial cabinets, larger power supplies, and telecommunication infrastructure that requires good airflow with balanced acoustics.
