Description

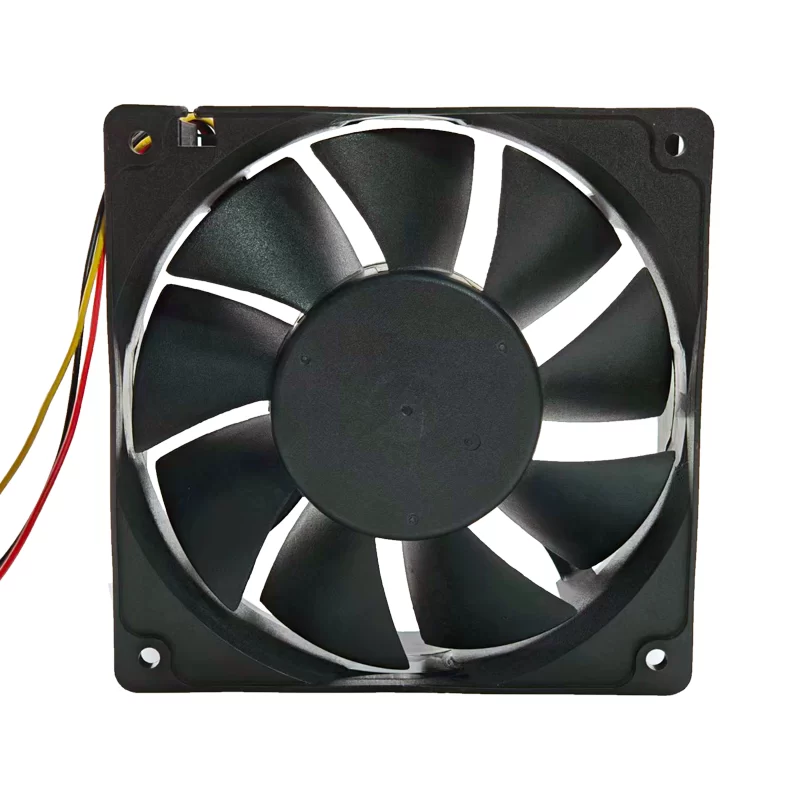

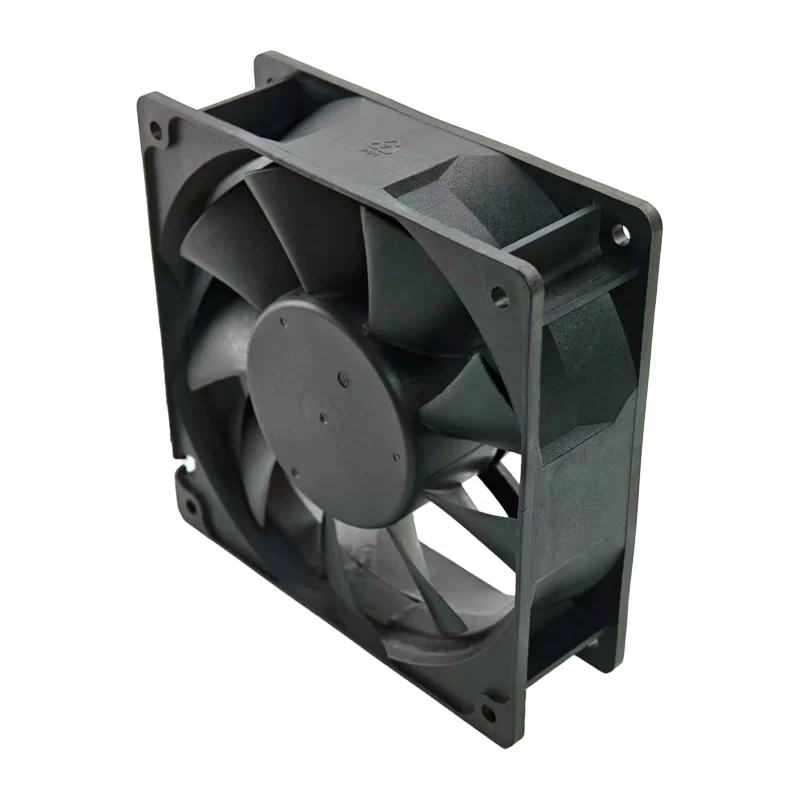

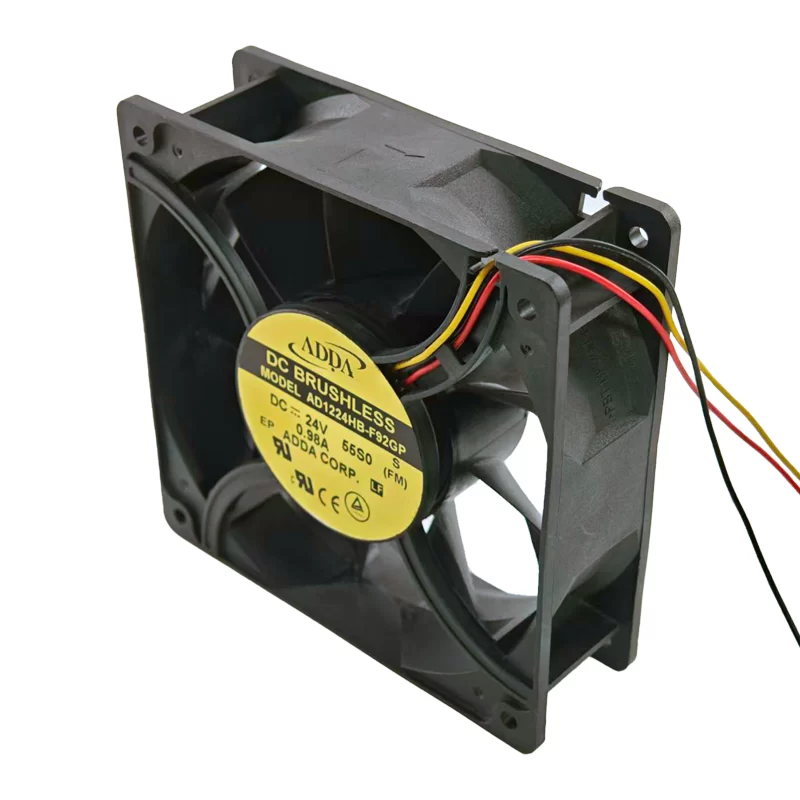

The ADDA AD1224HB-F92GP is a high-performance DC Axial Fan with dimensions of 120 x 120 x 38 mm. This fan operates on 24VDC with a high rated current of 0.98A, resulting in an input power of 23.52W. It uses robust Double Ball Bearings and typically features a 3-wire connection for speed sensing. Achieving a High Speed of up to 4300RPM, it delivers a massive airflow of 315.0m³/h (185.42CFM) and generates a high static pressure of 186.8Pa (0.75inAq). This fan is part of ADDA’s Great Performance series, engineered for heavy-duty industrial and server cooling applications.
| Parameter | Value |
| Model | AD1224HB-F92GP |
| Manufacturer | ADDA |
| Type | DC Axial Fan |
| Dimensions | 120 x 120 x 38 mm |
| Nominal Voltage | 24VDC |
| Rated Current | 0.98A |
| Input Power | 23.52W |
| Bearings | Double Ball Bearings |
| Speed | 4300RPM |
| Airflow | 315.0m³/h (185.42CFM) |
| Static Pressure | 186.8Pa (0.75inAq) |
| Noise Level | 61.0dBA |
| Frame Material | Plastic (UL94V-0) |
| Impeller Material | Plastic (UL94V-0) |
| Connection | Three lines (Speed Sensor) |
The AD1224HB-F92GP is a “Great Performance” fan primarily used in industrial and high-reliability environments where continuous, high-volume cooling is essential. Key applications include frequency converters (VFDs), industrial control cabinets, high-density server racks, mining equipment, and other large electronic systems requiring substantial airflow against high system resistance (static pressure).
