Description

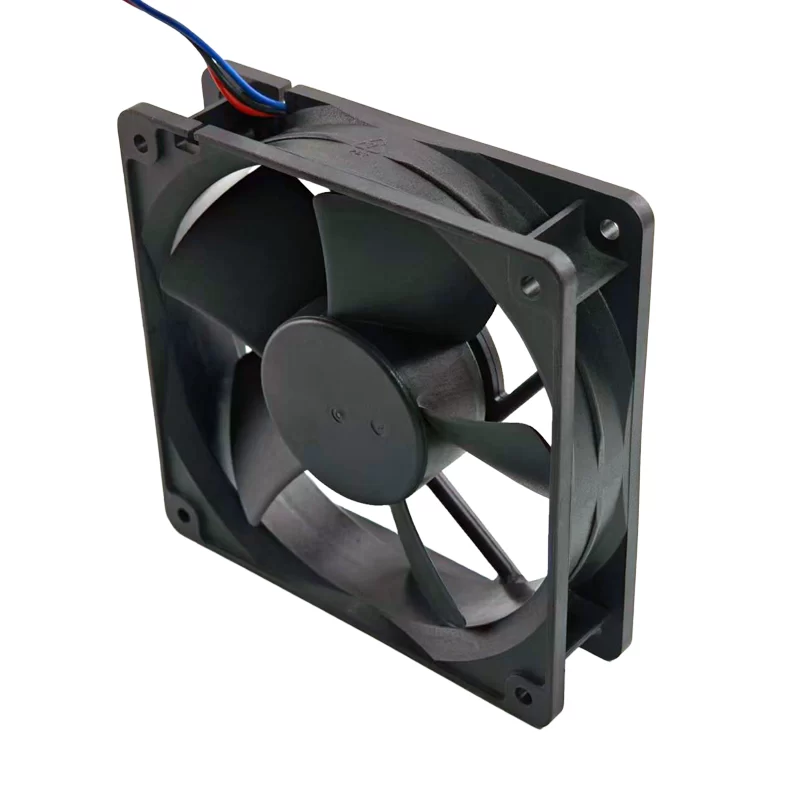

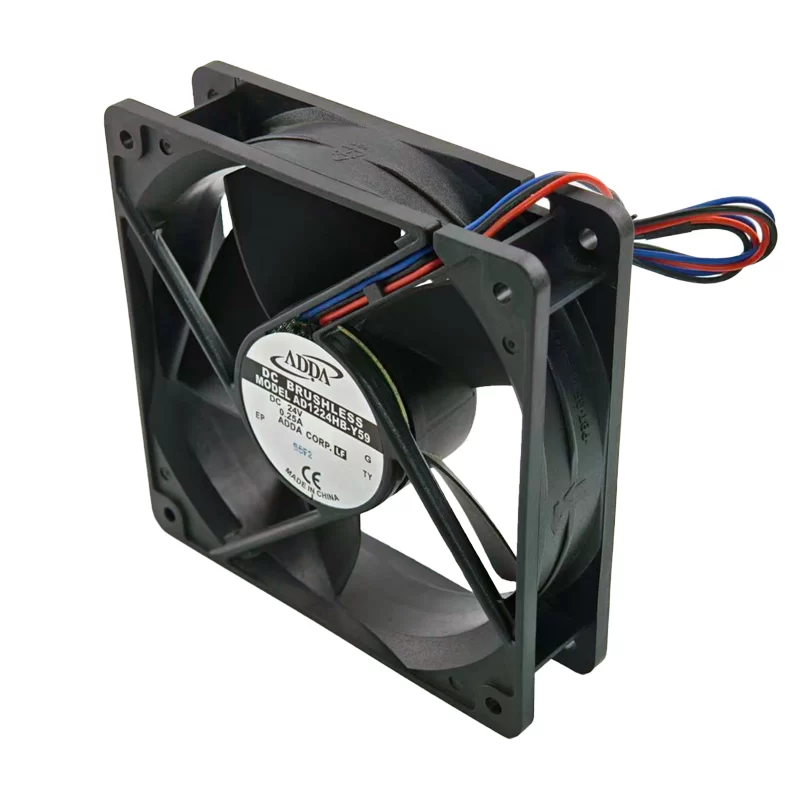

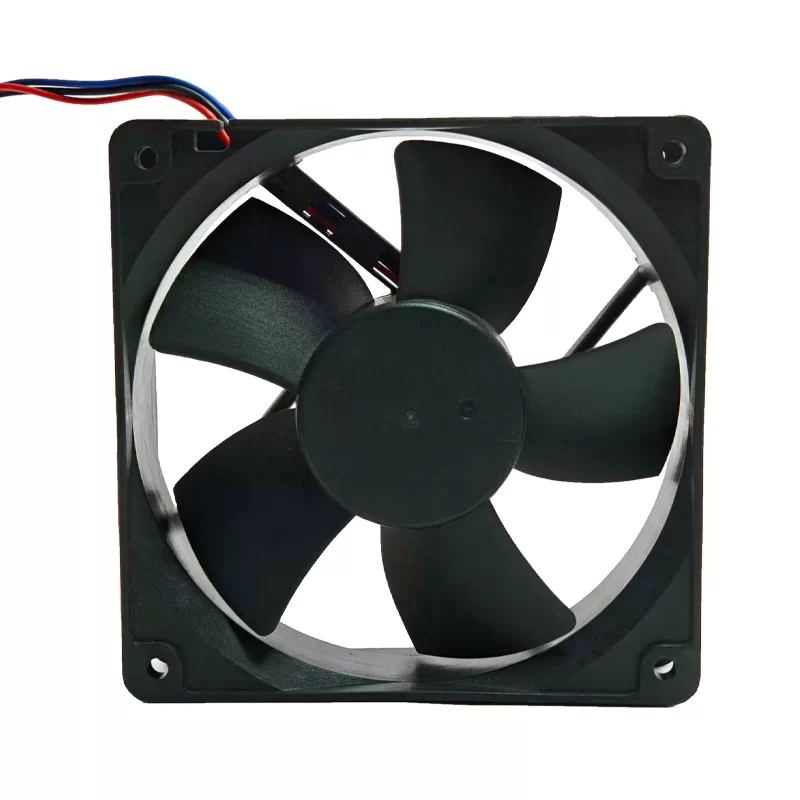

The ADDA AD1224HB-Y59 is a high-performance DC Axial Fan with dimensions of 120 x 120 x 32 mm. This fan operates on 24VDC with a current draw of 0.25A, resulting in an input power of 6W. It features Double Ball Bearings, 5 blades, and construction from UL94V-0 rated plastic. It achieves a high speed of 2800RPM and delivers a substantial airflow of 170m³/h (100.1CFM) with a static pressure of 70Pa (0.281inAq). This fan is typically used for cooling in demanding electronic and industrial equipment, such as inverters and various control systems.
| Parameter | Value |
| Model | AD1224HB-Y59 |
| Manufacturer | ADDA |
| Type | DC Axial Fan |
| Dimensions | 120x120x32mm |
| Nominal Voltage | 24VDC |
| Rated Current | 0.25A |
| Input Power | 6W |
| Bearings | Double Ball Bearings |
| Speed | 2800RPM |
| Airflow | 170m³/h (100.1CFM) |
| Static Pressure | 70Pa (0.281inAq) |
| Noise Level | 45dBA |
| Number of blades | 5 |
| Frame Material | Plastic (UL94V-0) |
| Impeller Material | Plastic (UL94V-0) |
| Connection | Three lines |
Application
The AD1224HB-Y59 fan is specifically suited for high-reliability cooling of critical electronic components. Typical applications include forced air cooling for industrial inverters, 24VDC power supply units, telecommunication enclosures, and server rack equipment where its high static pressure capability and double ball bearings ensure effective, long-life performance in confined spaces.
