Description

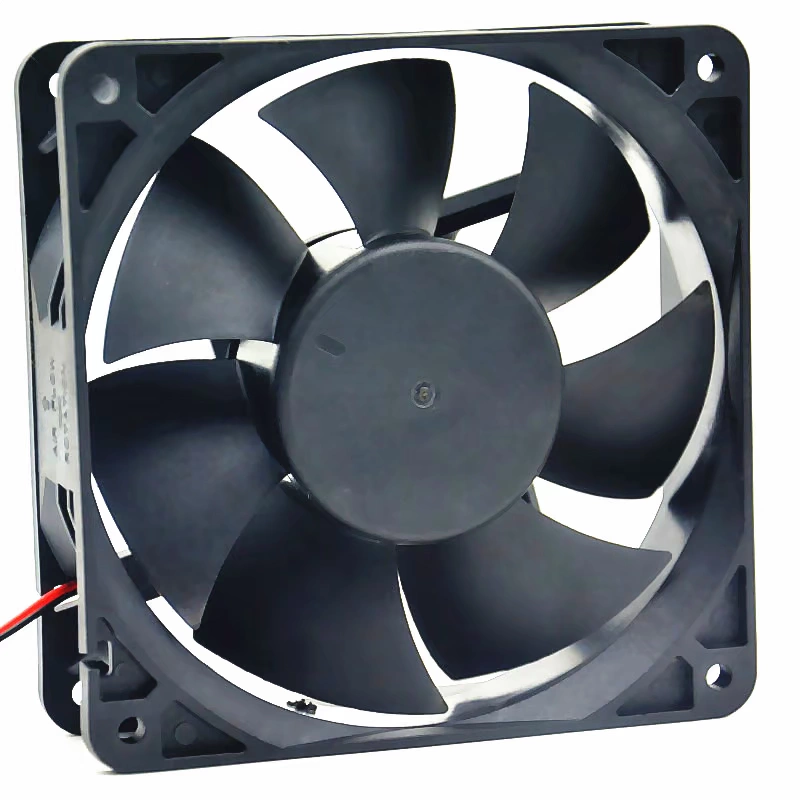

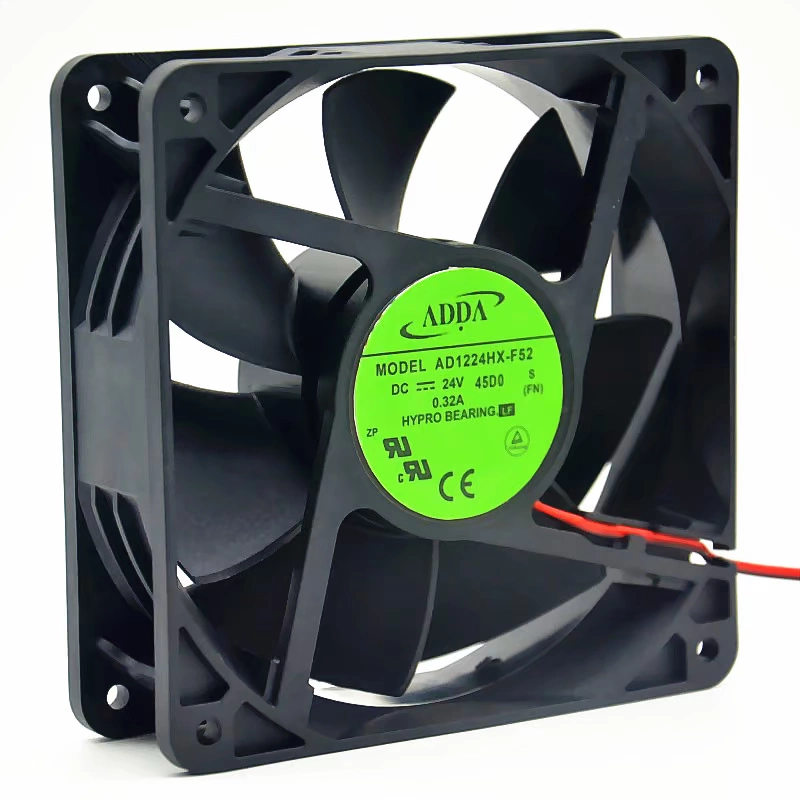

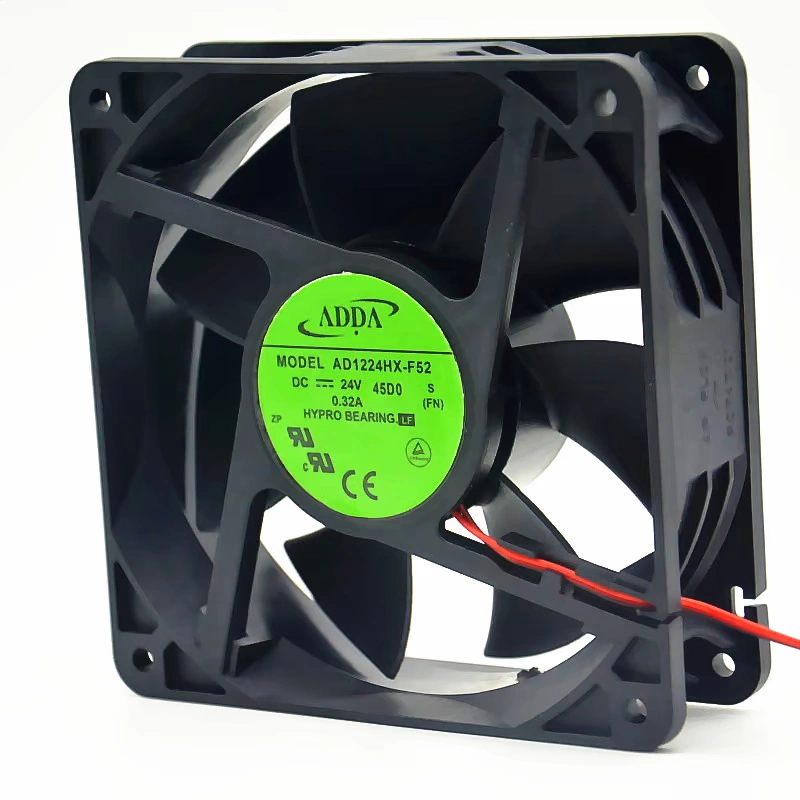

The ADDA AD1224HX-F52 is a DC axial cooling fan measuring 120x120x38mm. It operates on 24 VDC, drawing 0.32 A of current, with a power consumption of 7.68 W. This fan achieves a speed of 2600 RPM, providing an airflow of 106 CFM (3.11 m³/min) with a static pressure of 0.41 inch H2O. The noise level is 38 dB(A). It features high precision maintenance ball bearings for enhanced durability and connects via 3-wire Leads. This fan is suitable for general cooling applications in various electronic equipment and systems.
AD1224HX-F52 Fan Parameters
Model: AD1224HX-F52
Manufacturer: ADDA Corporation
Type: DC Cooling Fan
Dimensions: 120x120x38 mm
Rated Voltage: 24 VDC
Rated Current: 0.32 A
Power Consumption: 7.68 W
Speed: 2600 RPM
Airflow: 106 CFM (3.11 m³/min)
Static Pressure: 0.41 inch H2O
Noise Level: 38 dB(A)
Bearing Type: High Precision Maintenance Ball Bearing
Termination: 3-wire Leads
Weight: 156 g
Application: General cooling in electronic equipment and systems.
