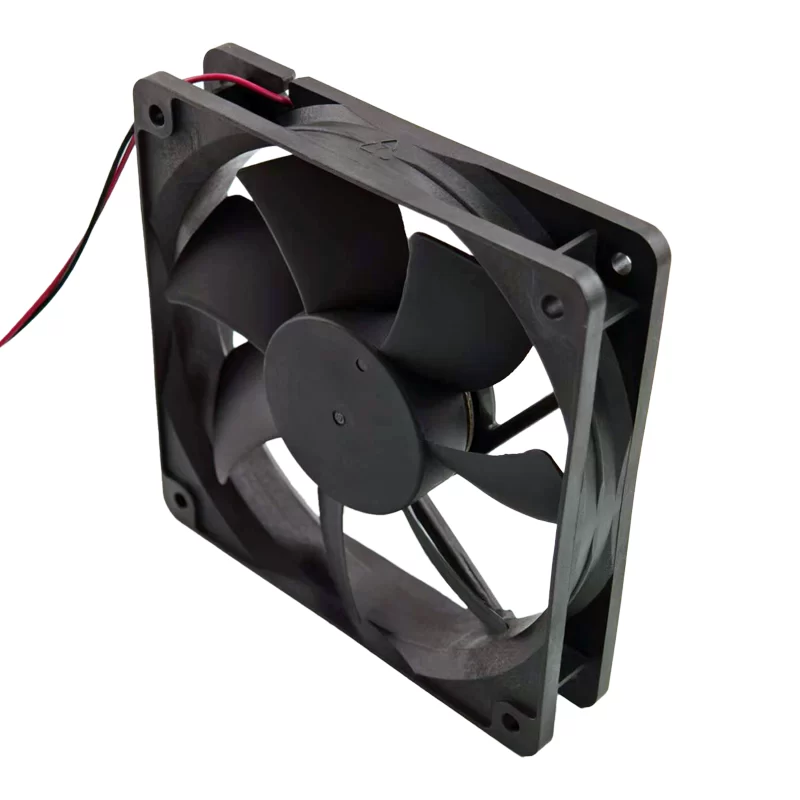

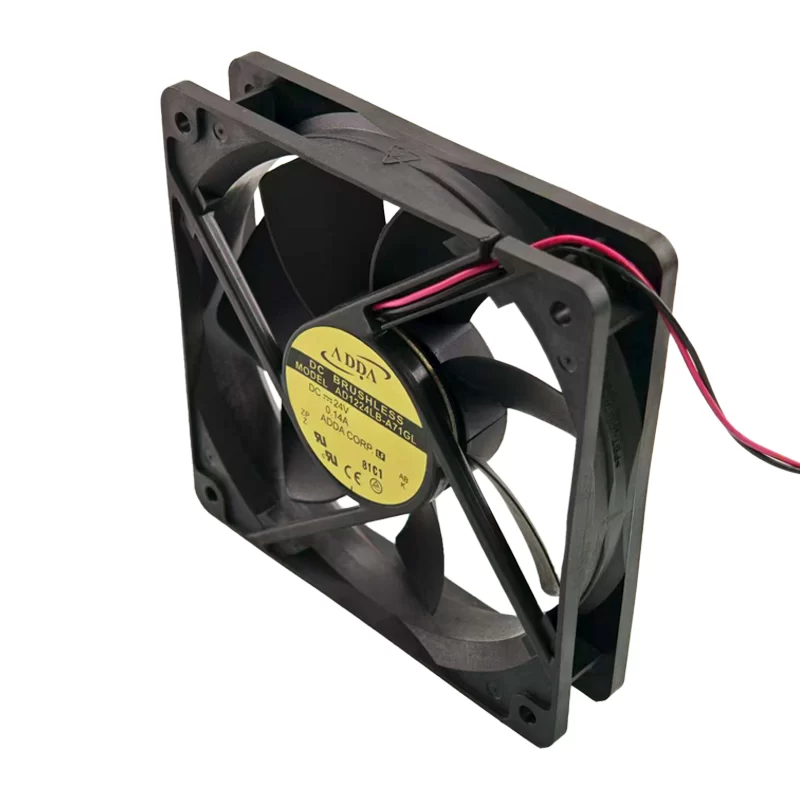

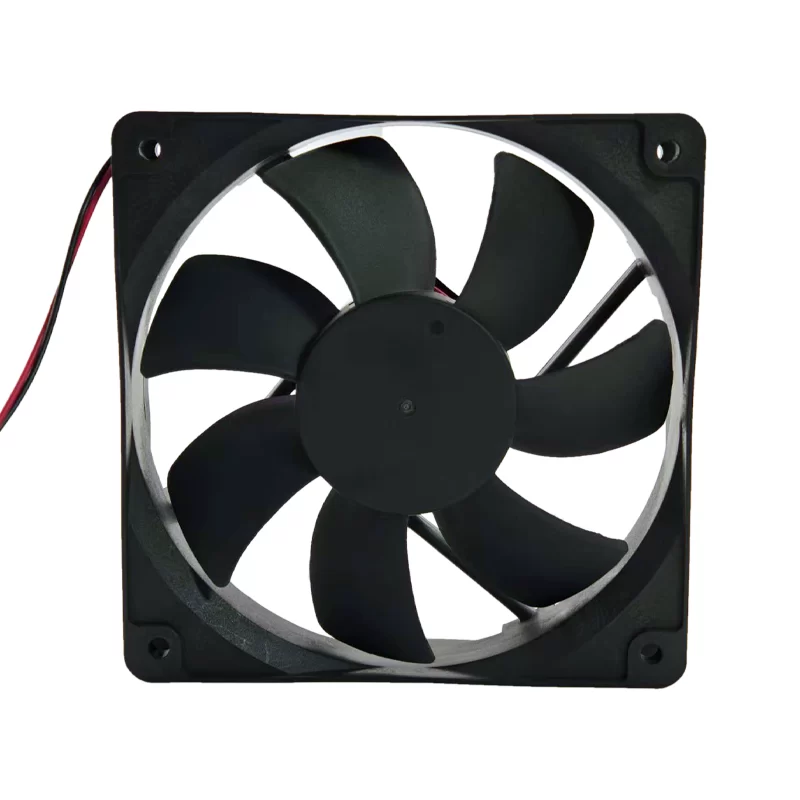

AD1224LB-A71GL ADDA 24V DC Axial Fan 120x25mm

Description

The ADDA AD1224LB-A71GL is a DC Axial Fan designed to provide reliable, low-to-medium airflow for general cooling purposes with an emphasis on low acoustic output. Measuring 120 x 120 x 25 mm, the fan operates from a 24 V DC power source. Its relatively low current rating of 0.14 A yields a power consumption of 3.36 W. Key performance metrics include an airflow of 72.0 CFM (approximately 2.04 m3/min) and a static pressure of 0.095 InAq, achieved at a rated speed of 1800 rpm. This model uses a durable Ball Bearing system and features a frame and impeller constructed from Plastic (UL94V-0) for compliance and safety.

AD1224LB-A71GL Fan Parameters
Manufacturer: ADDA
Model: AD1224LB-A71GL
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 24 V DC
Current Rating: 0.14 A
Power Consumption: 3.36 W
Rated Speed: 1800 rpm
Airflow: 72.0 CFM
Static Pressure: 0.095 InAq
Noise Level: 34.3 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire Leads

Application
This fan is best suited for applications where quiet operation is critical, such as cooling audio/visual equipment, desktop computers, small network enclosures, and various types of medical and laboratory instruments.
