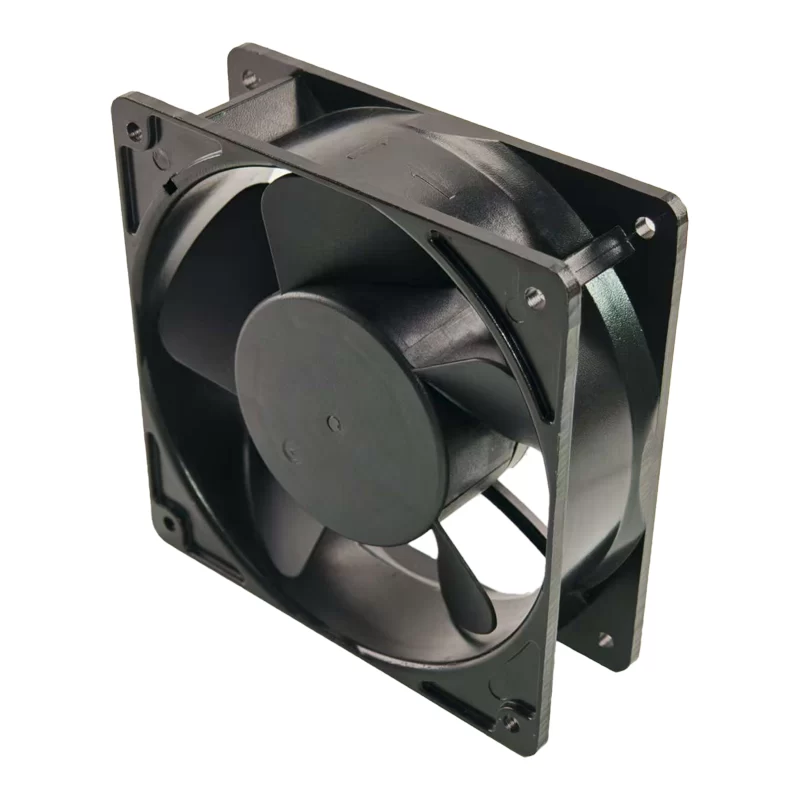

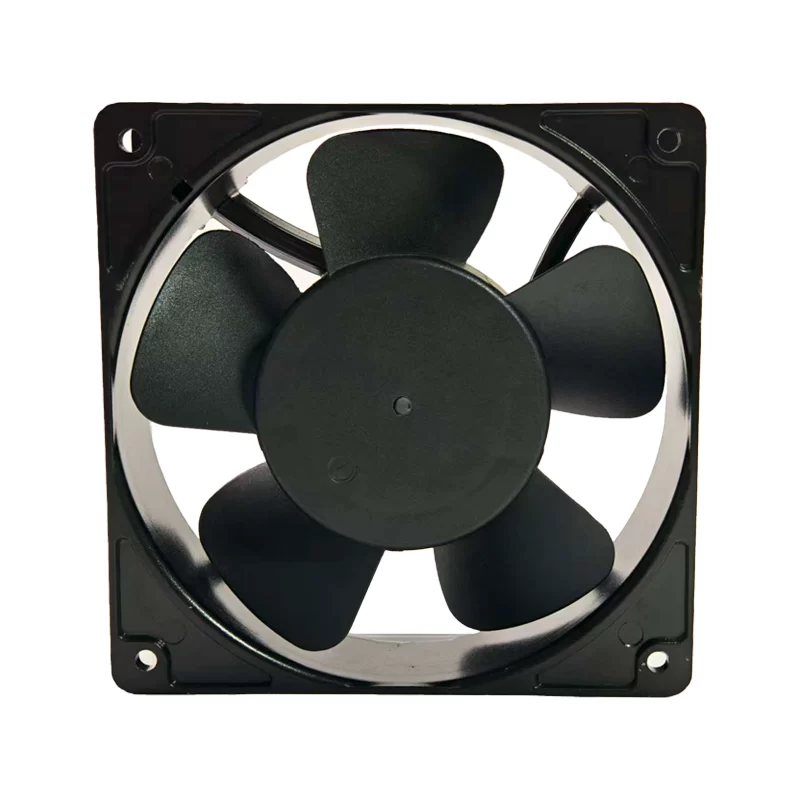

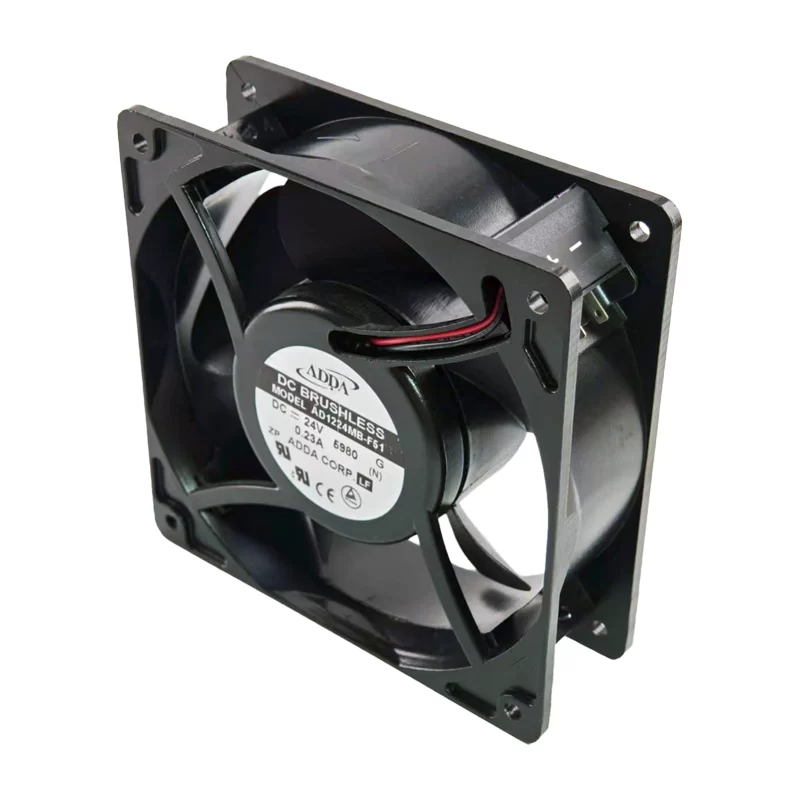

AD1224MB-F51 ADDA 24V DC Axial Fan

Description

The ADDA AD1224MB-F51 is a widely used DC Axial Fan designed for general equipment cooling. Measuring 120 x 120 x 38 mm, the fan operates with a nominal voltage of 24 V DC. It has a current rating of 0.23 A and an input power of 5.52 W. The fan is built with a long-life Ball Bearing system, achieving a rated speed of 2540 RPM. It provides an airflow of 94 CFM (approximately 2.66 m3/min) and a static pressure of 0.244 inH2O (around 6.1 mmAq). The fan connects via 2 wire leads, has a mass of 297 g, and maintains a quiet noise level of 41 dB(A).

AD1224MB-F51 Fan Parameters
Manufacturer: ADDA
Model: AD1224MB-F51
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24 V DC
Current Rating: 0.23 A
Input Power: 5.52 W
Rated Speed: 2540 RPM
Airflow: 94 CFM
Static Pressure: 0.244 inH2O
Noise Level: 41 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Frame Material: Plastic
Mass: 297 g

Application
The AD1224MB-F51 fan is a popular choice for effective and moderately quiet cooling in various electronic devices and industrial equipment. Its standard size and medium airflow profile make it suitable for applications such as server racks, industrial control cabinets, personal computers (PC), power supply cooling, and general ventilation where a balance between airflow and noise is required.
