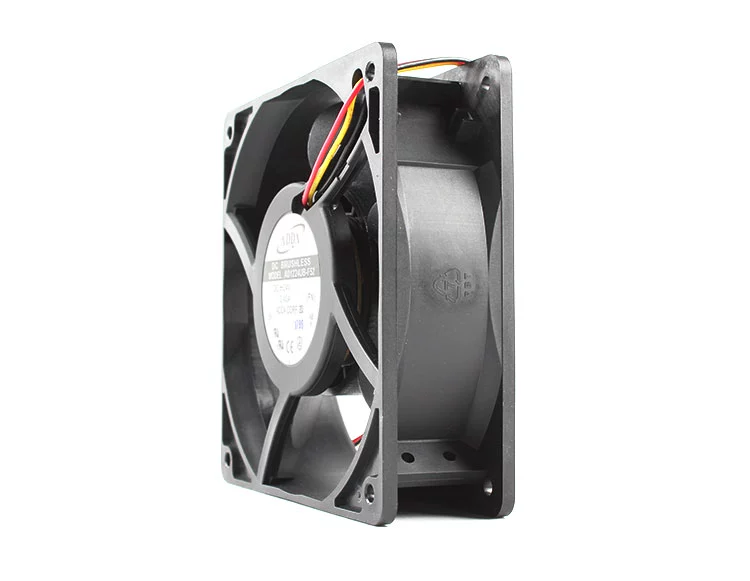

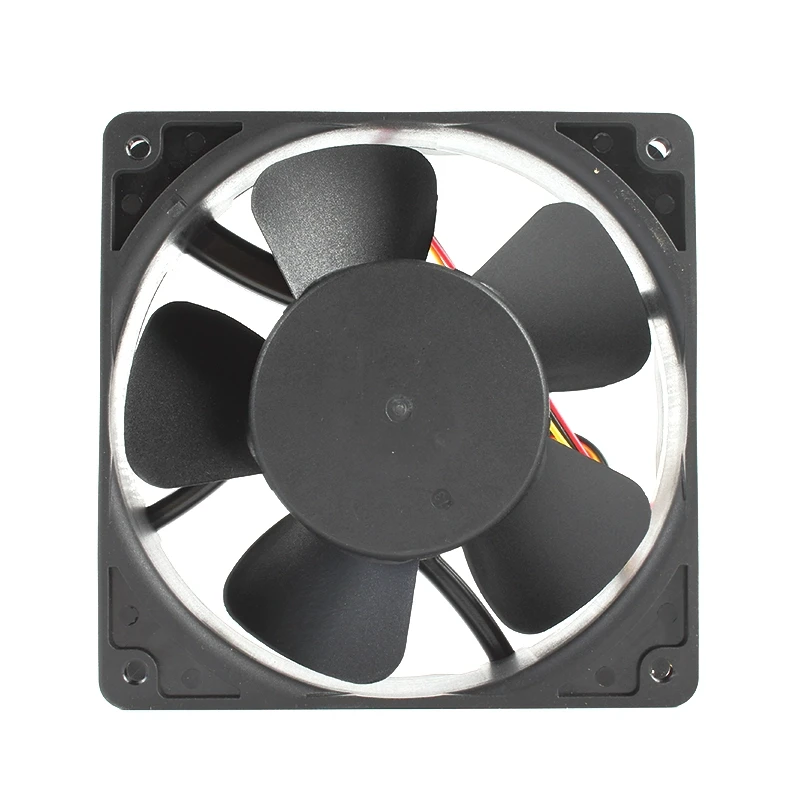

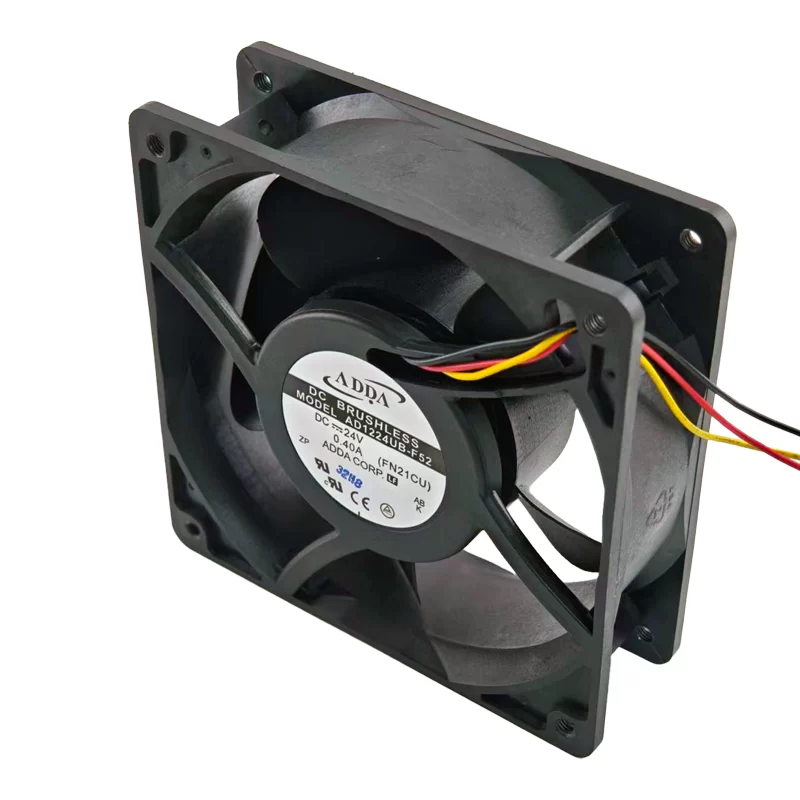

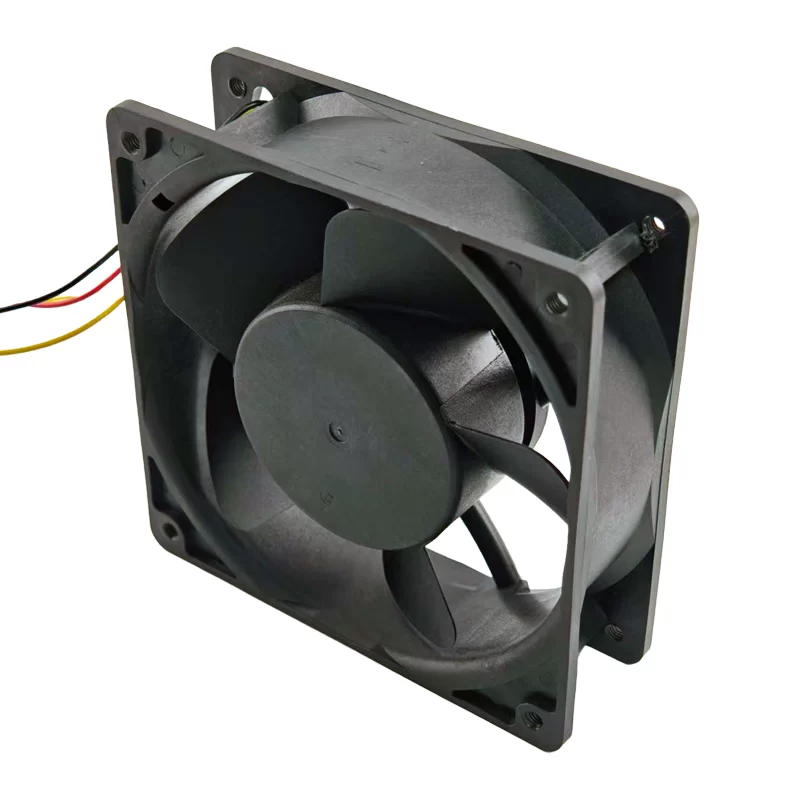

AD1224UB-F52 ADDA 24V 0.40A inverter fan

Description

The ADDA AD1224UB-F52 is a high-performance DC Axial Fan with dimensions of 120×120×38 mm. It operates on 24 VDC with a Rated Current of 0.400 A and Rated Power of 9.60 W. The fan features a Ball Bearing system, achieving a Rated Speed of 3,200 RPM. It delivers a significant Airflow of 207.3 m3/h (122.0 CFM) and Static Pressure of 99.1 Pa (0.394 inAq), with a Noise Level of 48.0 dB(A). The standard 3-wire termination provides a Tachometer (FG) signal for essential speed monitoring, making it suitable for industrial controls, inverters, and telecom equipment requiring high-volume cooling air.

AD1224UB-F52 Fan Parameters
Model: AD1224UB-F52
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 120×120×38 mm
Bearing Type: Ball Bearing
Operating Voltage: 24 V
Operating Voltage Range: 21.6 V to 26.4 V
Rated Current: 0.400 A
Rated Input: 9.60 W
Rated Speed: 3,200 RPM
Airflow: 207.3 m3/h (122.0 CFM)
Static Pressure: 99.1 Pa (0.394 inAq)
Noise Level: 48.0 dB(A)
Termination: 3-Wire Leads (Tachometer Output)
Motor Protection: By IC
Frame Material: Plastic (PBT UL 94V-0), Glass-filled
Impeller Material: Plastic (PBT UL 94V-0)
Operating Temperature: −10 to +75 ∘C
Expected Life: 50,000 h (25 ∘C)
Safety Approvals: UL, cUL, CE

Application
The AD1224UB−F52 is primarily used for spot-cooling and general ventilation in DC powered systems such as industrial automation equipment, inverters, telecom rectifiers, and network cabinets. Its ultra-high speed and high static pressure capability are essential for overcoming resistance in densely packed enclosures, while the Tachometer output ensures system reliability through fan speed monitoring.
Genuine spot ADDA AD1224UB-F52 12038 24V 0.40A inverter cooling fan fan
