Description

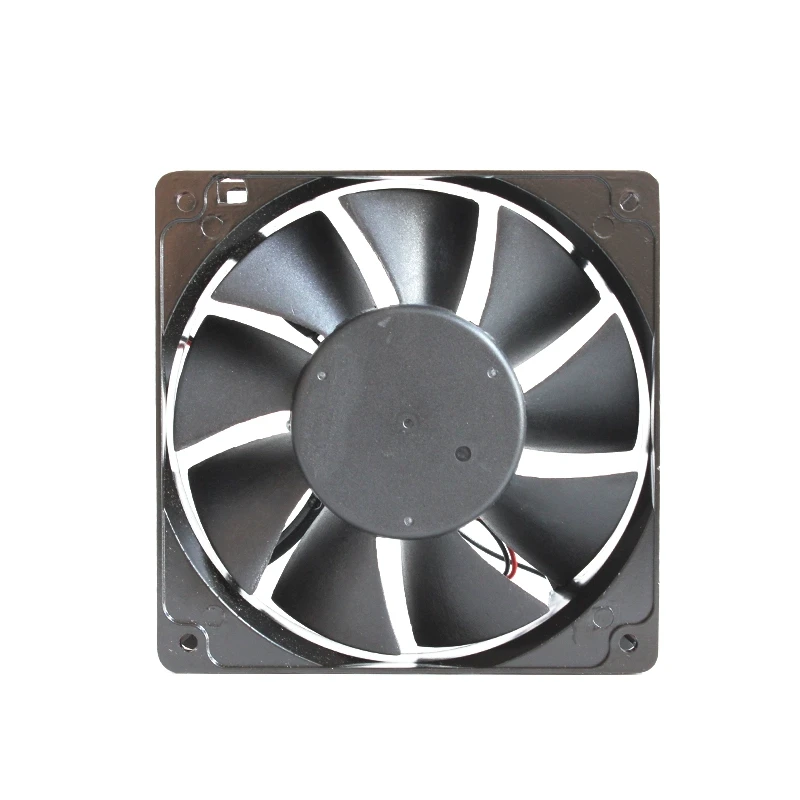

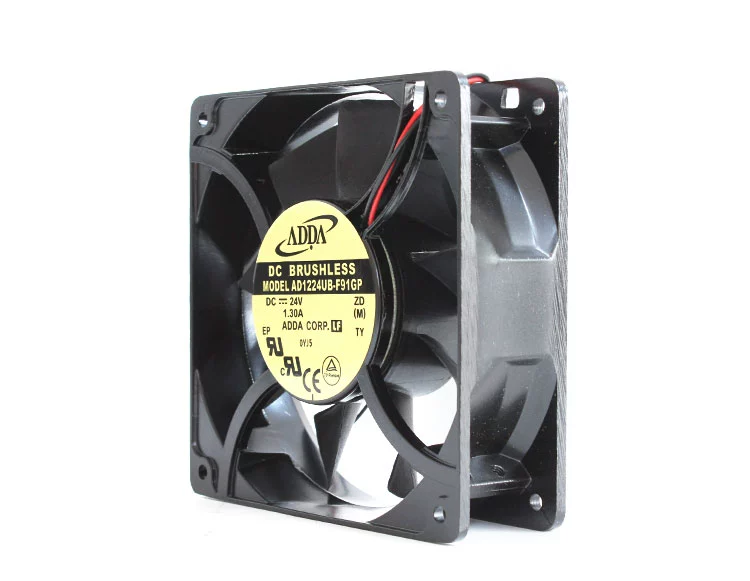

Spot ADDA Xiexi AD1224UB-F91GP 12038 24V 1.30A inverter cooling fan
Model Number: AD1224UB-F91GP
Manufacturer: ADDA Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 18V to 27.6V DC
Rated Current: 1.30A
Rated Power: 31.2W
Speed: Approximately 4700 RPM
Airflow: Approximately 221.4 CFM
Static Pressure: Approximately 0.75 inch-H2O
Noise Level: Approximately 63 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Features: Locked Rotor Protection, Polarity Protection
Product Summary
The ADDA AD1224UB-F91GP is an extremely powerful DC Axial Cooling Fan manufactured by ADDA Corporation, designed for robust thermal management in demanding applications. Operating on 24V DC power, it draws a significant 1.30A of current, resulting in 31.2W of power consumption. Measuring 120mm x 120mm x 38mm, this fan is highly effective for moving a large volume of air, often used in server cooling, industrial equipment, or high-power electronics. It rotates at an ultra-high speed of approximately 4700 RPM, delivering an impressive airflow of around 221.4 CFM and generating substantial static pressure at approximately 0.75 inch-H2O. With a noise level of around 63 dBA, it provides strong cooling performance. Equipped with 2-wire leads, this fan simplifies installation where basic power connection is sufficient, and it features durable ball bearings. The fan boasts a life expectancy of 50,000 hours at 25°C and is designed to operate reliably within a temperature range of -10°C to 70°C, including locked rotor protection and polarity protection for dependable performance.
