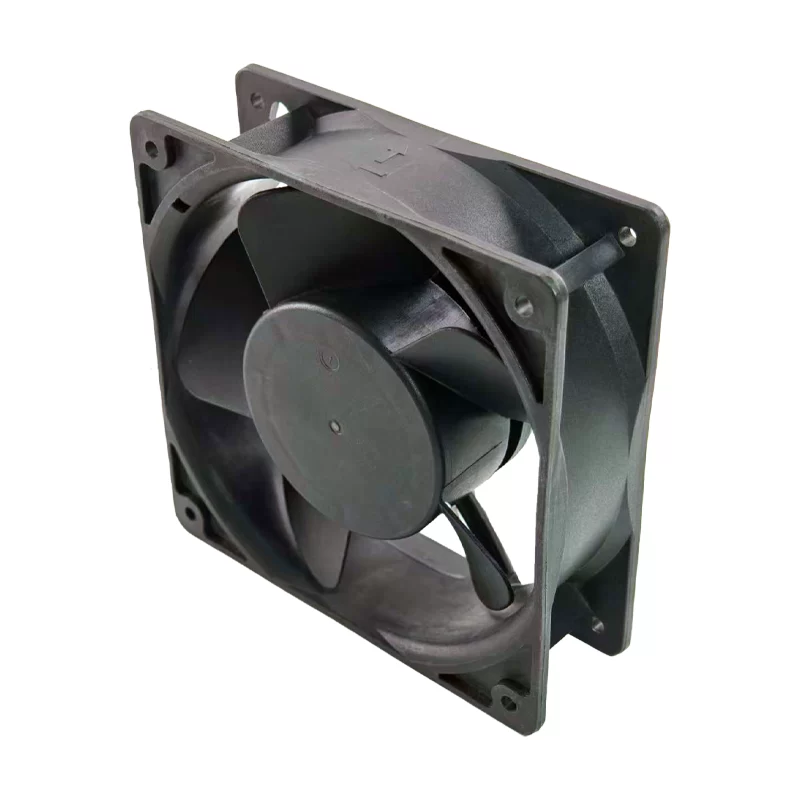

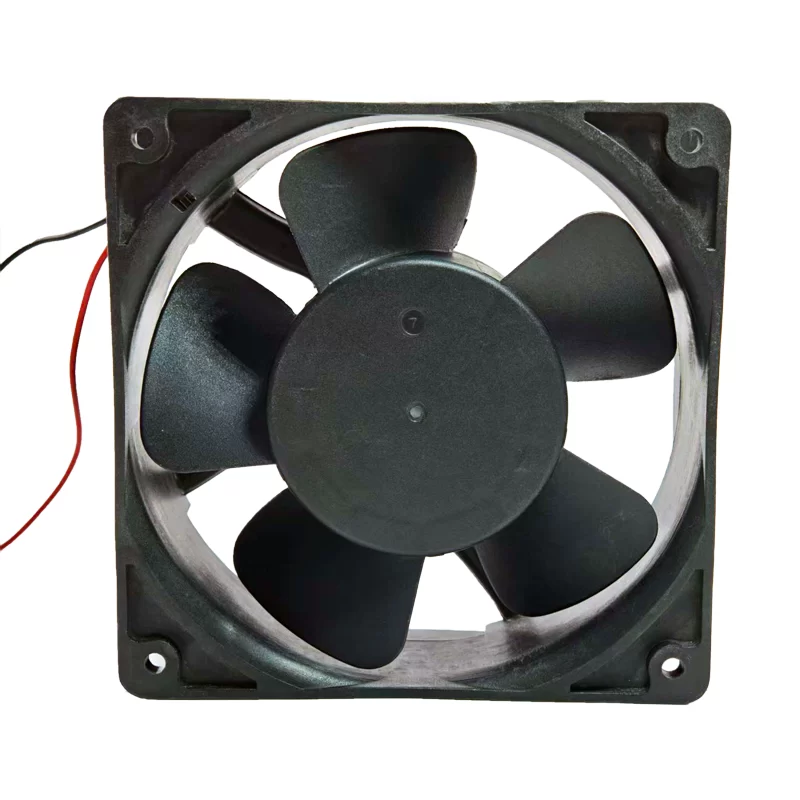

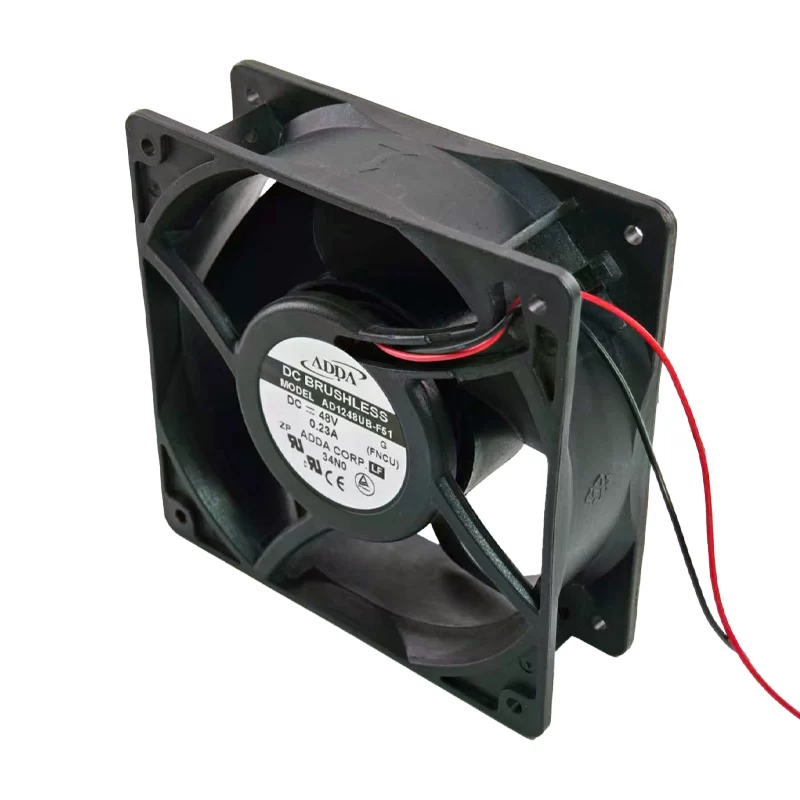

AD1248UB-F51 ADDA 48V DC Axial Fan

$12.97

SKU: AD1248UB-F51
Tag:

Description

The ADDA AD1248UB-F51 is a high-power DC Axial Fan with robust dimensions of 120×120×38 mm. It operates on a high nominal voltage of 48 VDC, drawing a rated current of 0.22 A for a power consumption of 10.56 W. Featuring a reliable Ball Bearing system, this fan achieves a high speed of 3,200 RPM. It delivers a powerful maximum airflow of 204.1 m3/h (120.1 CFM) and generates a static pressure of 98.1 Pa (0.394 inH2O) while maintaining a moderate noise level of 48 dB(A).

AD1248UB-F51 Fan Parameters
Model: AD1248UB-F51
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 120×120×38 mm
Nominal Voltage: 48 VDC
Rated Current: 0.22 A
Rated Power: 10.56 W
Rated Speed: 3,200 RPM
Airflow: 204.1 m3/h (120.1 CFM)
Static Pressure: 98.1 Pa (0.394 inH2O)
Noise Level: 48 dB(A)
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 5
Label Current: 0.23A
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The AD1248UB-F51 is a heavy-duty cooling solution primarily used in telecommunications equipment, network infrastructure (e.g., switches, routers), and industrial systems that utilize a 48 VDC power bus. Its high airflow and high static pressure capabilities are essential for pulling air through densely packed enclosures and high-impedance heat sinks.

AD1248UB-F51 ADDA 48V DC Axial Fan
AD1248UB-F51 ADDA 48V DC Axial Fan
AD1248UB-F51 ADDA 48V DC Axial Fan
AD1248UB-F51 ADDA 48V DC Axial Fan

Additional information

Weight 1 kg
