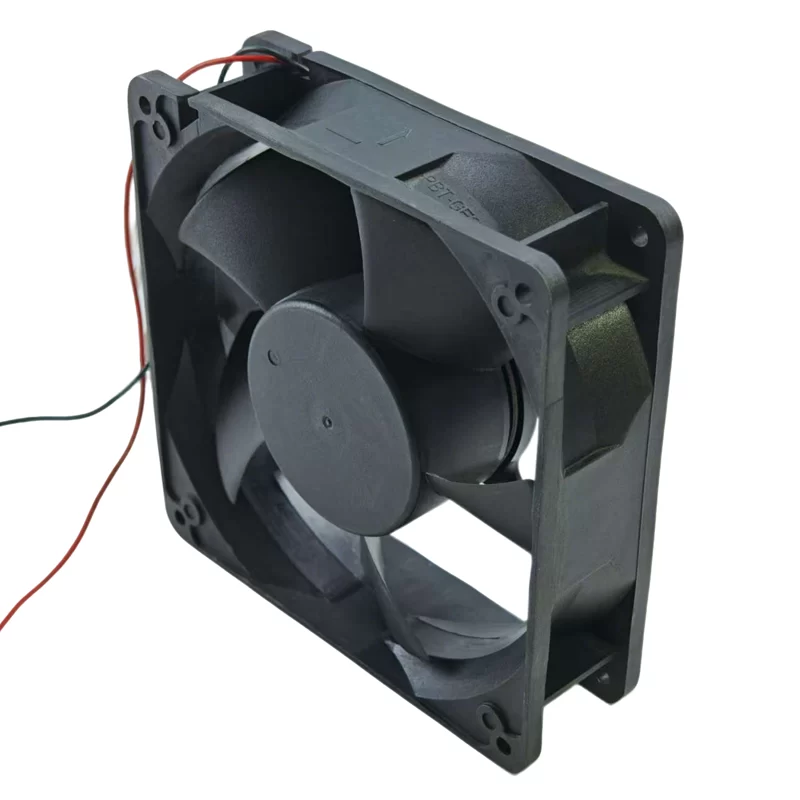

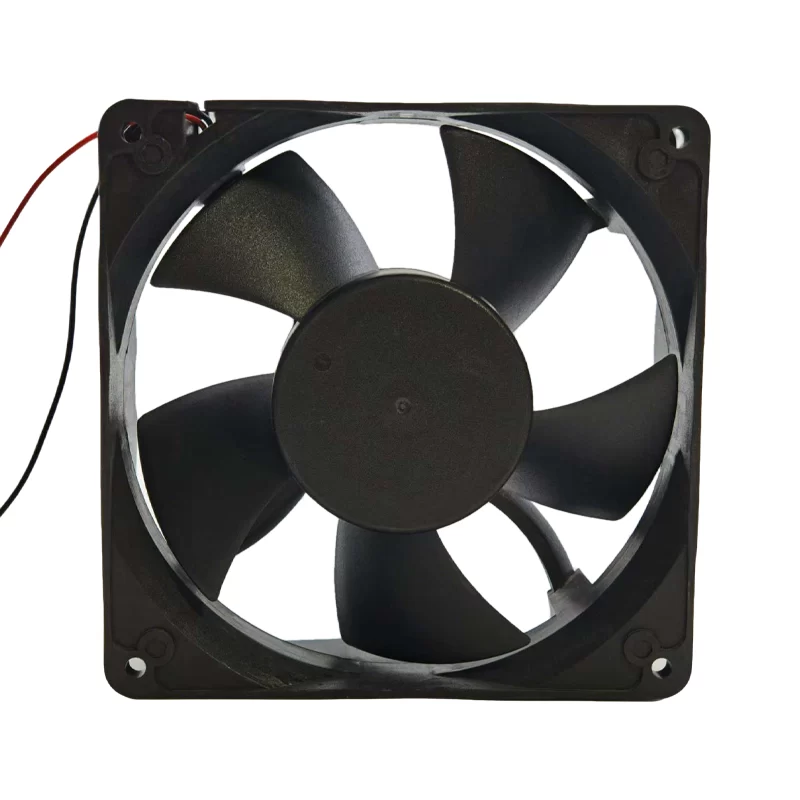

AD1324VB-F51 ADDA 24V DC Axial Fan

Description

The ADDA AD1324VB-F51 is a DC axial fan with dimensions of 127 x 127 x 38 mm. It operates on 24V DC, drawing 1.30 A of current and consuming 31.2 W of power. This fan delivers an airflow of 175.7 CFM (298.5 m³/h) with a static pressure of 0.322 inch H₂O (80 Pa). It runs at a speed of 3000 RPM with a noise level of 46.5 dB(A). The fan uses ball bearings for reliability and is terminated with two-wire leads. It operates within a temperature range of -10 °C to 60 °C.

AD1324VB-F51 Fan Parameters
Manufacturer: ADDA
Model: AD1324VB-F51
Fan Type: DC Axial Fan
Dimensions: 127 x 127 x 38 mm
Rated Voltage: 24V DC
Current Rating: 1.30 A
Power Consumption: 31.2 W
Airflow: 175.7 CFM (298.5 m³/h)
Static Pressure: 0.322 inch H₂O (80 Pa)
Speed: 3000 RPM
Noise Level: 46.5 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94-0)
Impeller Material: Thermoplastic PBT (UL94-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 180 g

Application
The AD1324VB-F51 fan is suitable for applications requiring high airflow and reliability, such as in server racks, industrial equipment, air purification systems, and large electronic enclosures.
