Description

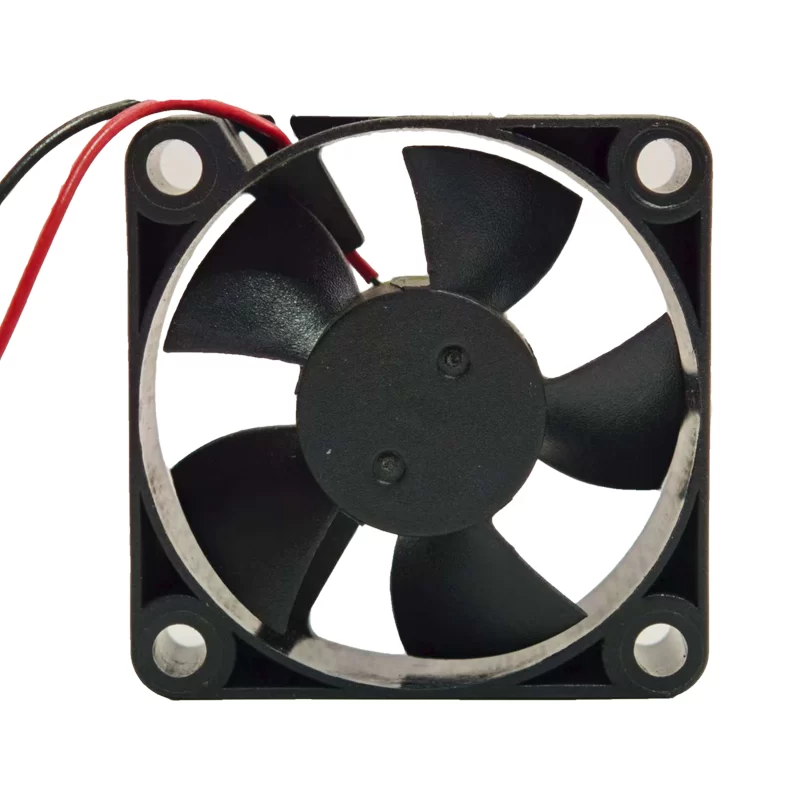

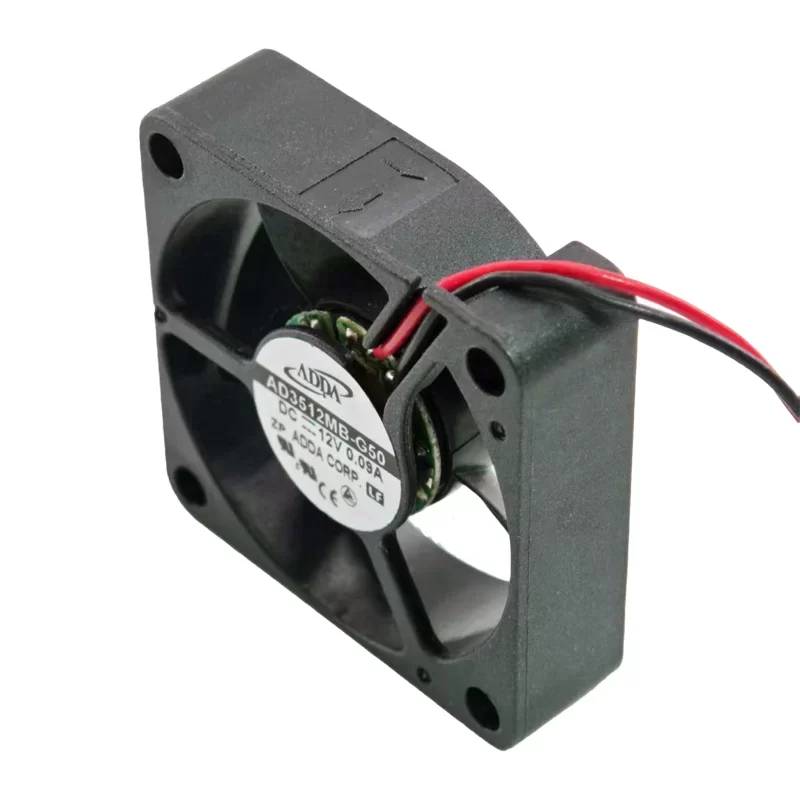

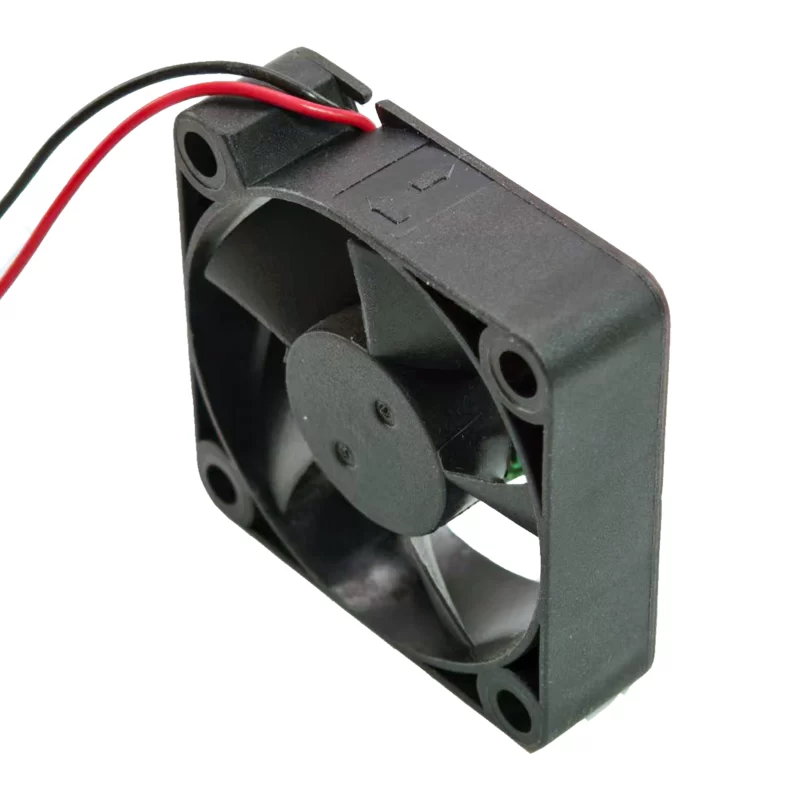

The ADDA AD3512MB-G50 is a high-performance DC Axial Fan with dimensions of 35×35×10 mm. This medium-speed (M) fan operates on a 12.0 VDC nominal voltage (operating range 10.8−13.2 VDC) and utilizes a Ball Bearing system. It has a rated current of 0.09 A and a power consumption of 1.08 W. The fan achieves a speed of 8,000 RPM, delivering an airflow of 10.2 m3/h (6.00 CFM) and a static pressure of 42.3 Pa (0.170 inH2O). The typical noise level is 32.0 dB(A).
AD3512MB-G50 Fan Parameters
Model: AD3512MB-G50
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 35×35×10 mm
Nominal Voltage: 12.0 VDC
Operating Voltage Range: 10.8−13.2 VDC
Rated Current: 0.09 A
Rated Power: 1.08 W
Rated Speed: 8,000 RPM
Airflow: 10.2 m3/h (6.00 CFM)
Static Pressure: 42.3 Pa (0.170 inH2O)
Noise Level: 32.0 dB(A)
Weight: 9 g
Bearing System: Ball Bearing
Termination: 2-Wire Leads (AWG#28)
Life Expectancy: 70,000 Hours at 40 ∘C
Frame Material: Plastic (P.B.T, UL94V−0)
Impeller Material: Plastic (P.B.T, UL94V−0)
Motor Design: Brushless DC Motor with IC Protection
Safety Approvals: UL, cUL, TUV, CE
Application
The AD3512MB-G50 is a compact fan suitable for micro-cooling applications in dense electronic assemblies. It is typically used for cooling chipsets, small embedded systems, portable electronic devices, and mini-servers where space is severely limited and effective spot cooling is required.
