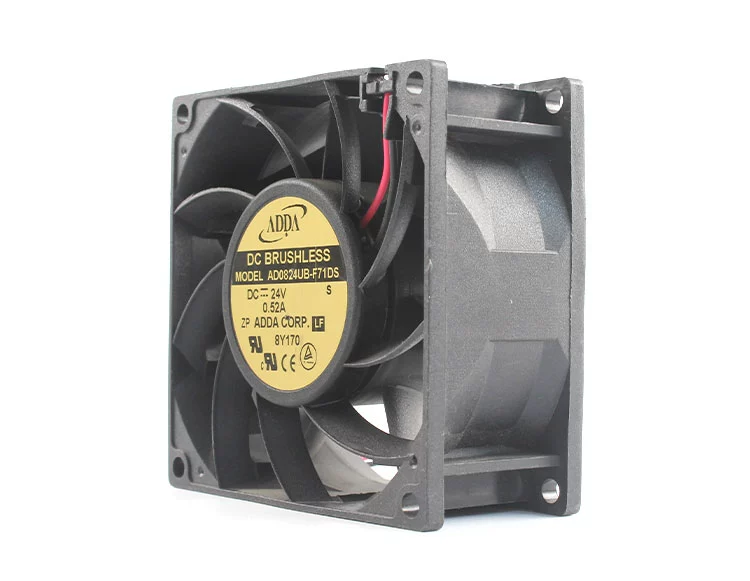

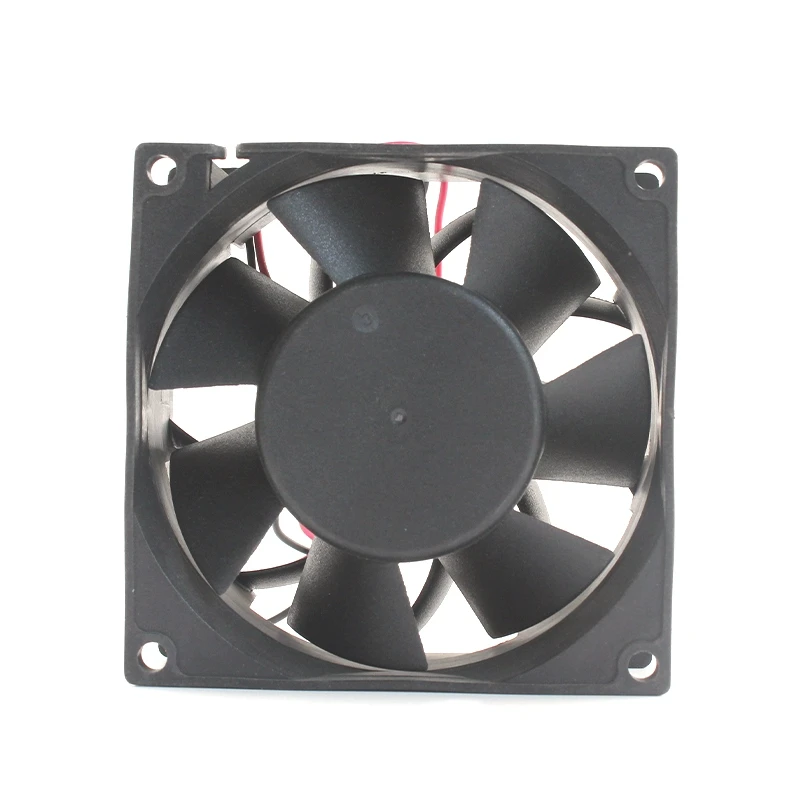

ADDA AD0824UB-F71DS 24V 0.52A cooling fan

Description

The ADDA AD0824UB-F71DS is a high-performance DC Axial Fan with dimensions of 80 mm x 80 mm x 38 mm. It operates on a nominal voltage of 24 VDC and draws a current of 0.52 A, resulting in a power consumption of 12.48 W. This fan is typically rated for an Ultra-High Speed (UB) performance, achieving approximately 5500 RPM, a high airflow of 149.5 m³/h (88 CFM), and excellent static pressure. Utilizing a highly reliable Ball Bearing system and a 2-Wire connection, this fan is dynamically and statically optimized for applications demanding maximum cooling and pressure capability.

AD0824UB-F71DS Fan Parameters
Model: AD0824UB-F71DS
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80 mm x 80 mm x 38 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 14 VDC – 27.6 VDC
Current Draw: 0.52 A
Power Consumption: 12.48 W
Speed: 5500 RPM
Airflow: 149.5 m³/h (88 CFM)
Static Pressure: 0.54 inAq (134.5 Pa)
Noise: 55.0 dBA
Bearing Type: Ball Bearing (Dual Ball)
Connection: 2 Wire Leads
Life Expectancy: 50,000 hours min. @ 40 °C
Housing Material: Glass Filled Polyester (UL94V-0)
Protection: Motor and Polarity Protection

ApplicationThe ADDA AD0824UB-F71DS is a fan designed for extreme airflow and pressure requirements, characteristic of Ultra-High Speed models. Its 38mm thickness and high current rating make it a preferred choice for cooling mission-critical systems such as server power supplies, networking devices, industrial inverters, and high-density electronic chassis where high system impedance must be overcome.
