Description

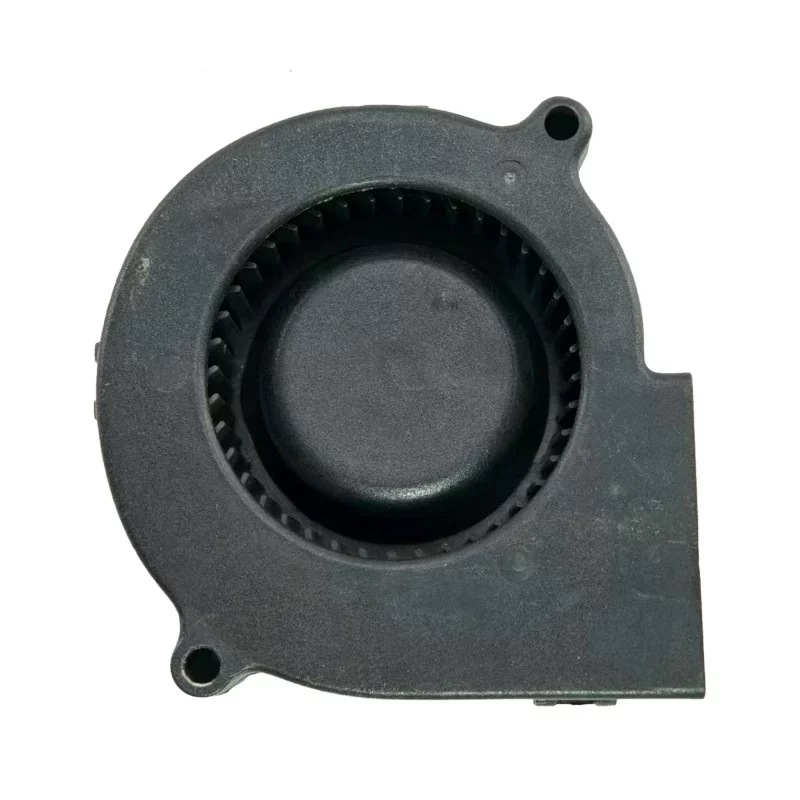

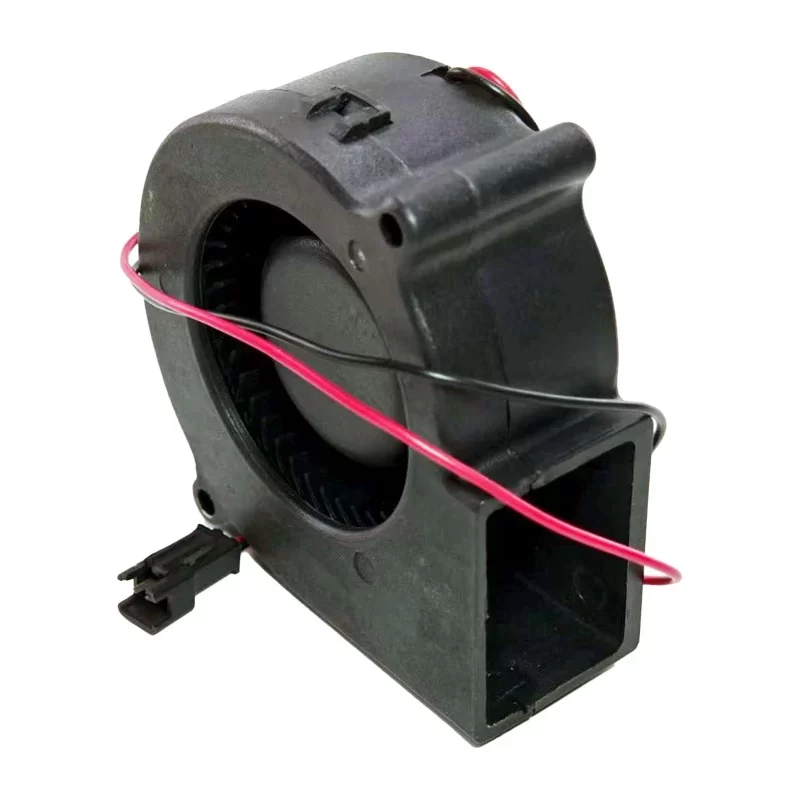

The ADDA AD7524UB is a 24VDC blower fan with dimensions of 75 x 75 x 30 mm. This fan operates under 24VDC, drawing 0.27A of current and consuming 6.28W of power. It provides 13.1CFM (approximately 22.3m³/h) of airflow and can generate 212Pa (21.6mmAq) of static pressure. The fan runs at a high speed of 4200RPM, with a noise level of 44.7dB(A). It utilizes durable ball bearings and a two wire lead connection.
AD7524UB Fan Parameters
Manufacturer: ADDA
Model: AD7524UB
Fan Type: DC Blower Fan
Dimensions: 75 x 75 x 30 mm
Rated Voltage: 24 VDC
Current Rating: 0.27 A
Power Consumption: 6.28 W
Airflow: 13.1 CFM (22.3 m³/h)
Static Pressure: 212 Pa (21.6 mmAq)
Speed: 4200 RPM
Noise Level: 44.7 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Weight: 0.08 kg
Application: This ADDA DC blower fan is suitable for compact electronic devices, small appliances, and systems requiring concentrated airflow.
