Description

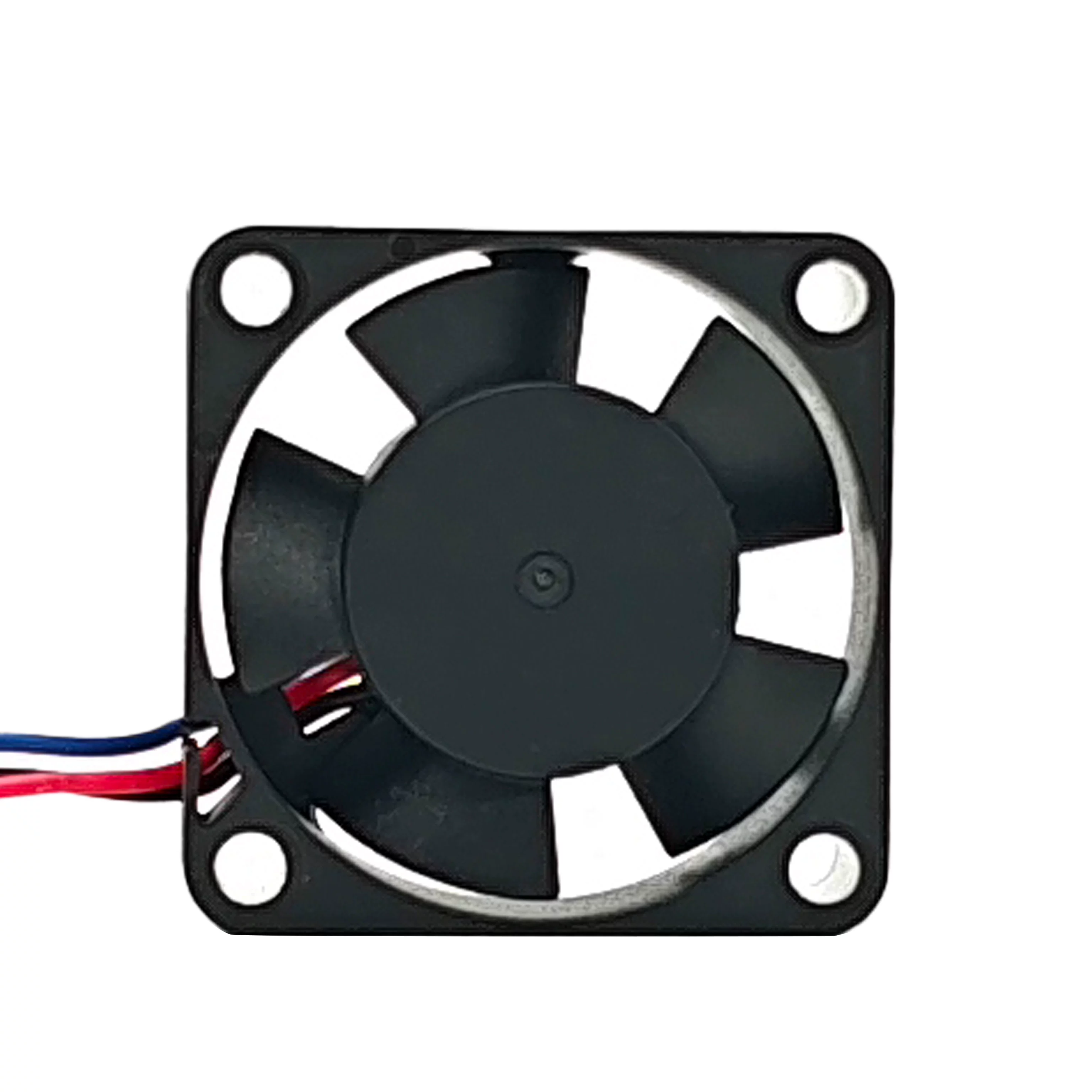

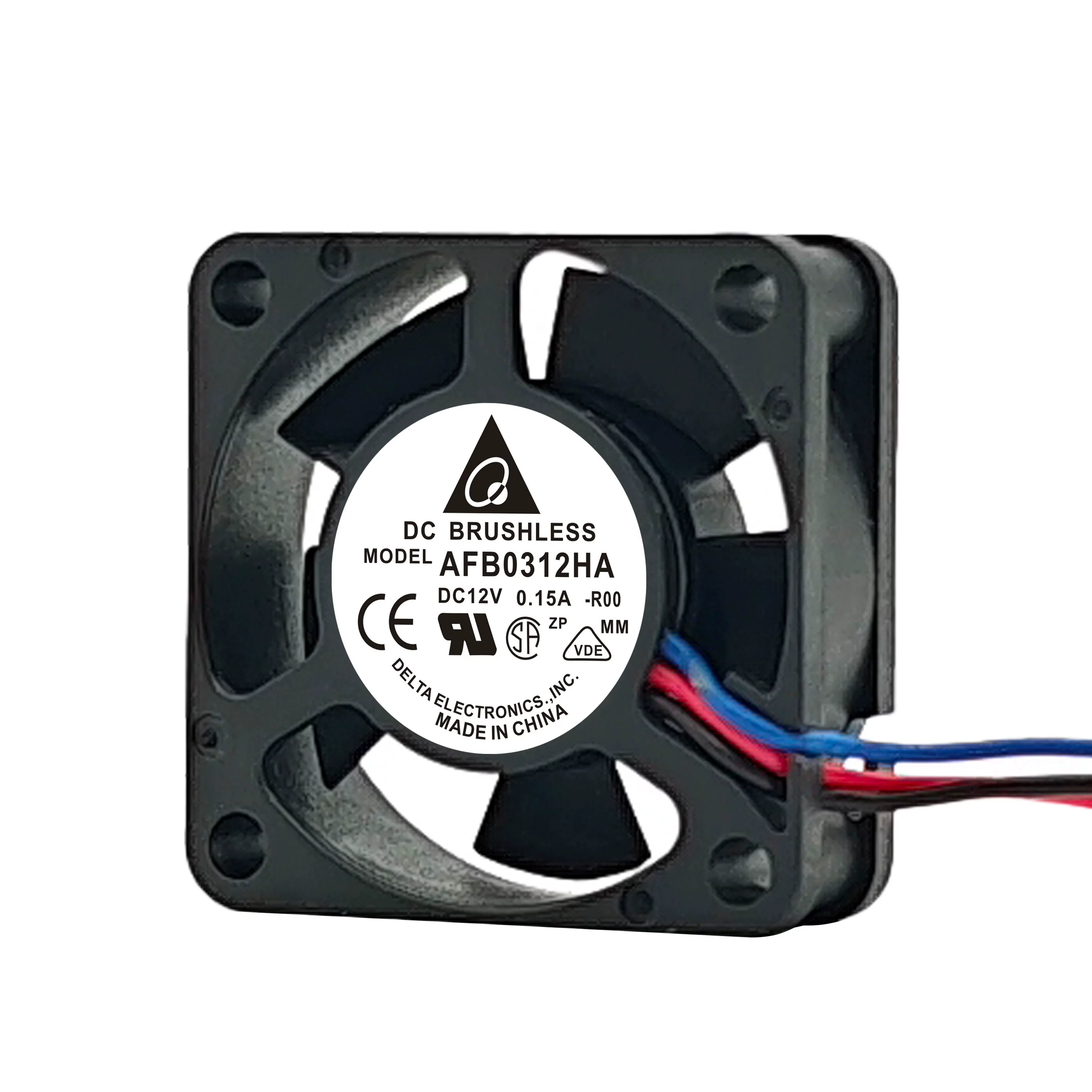

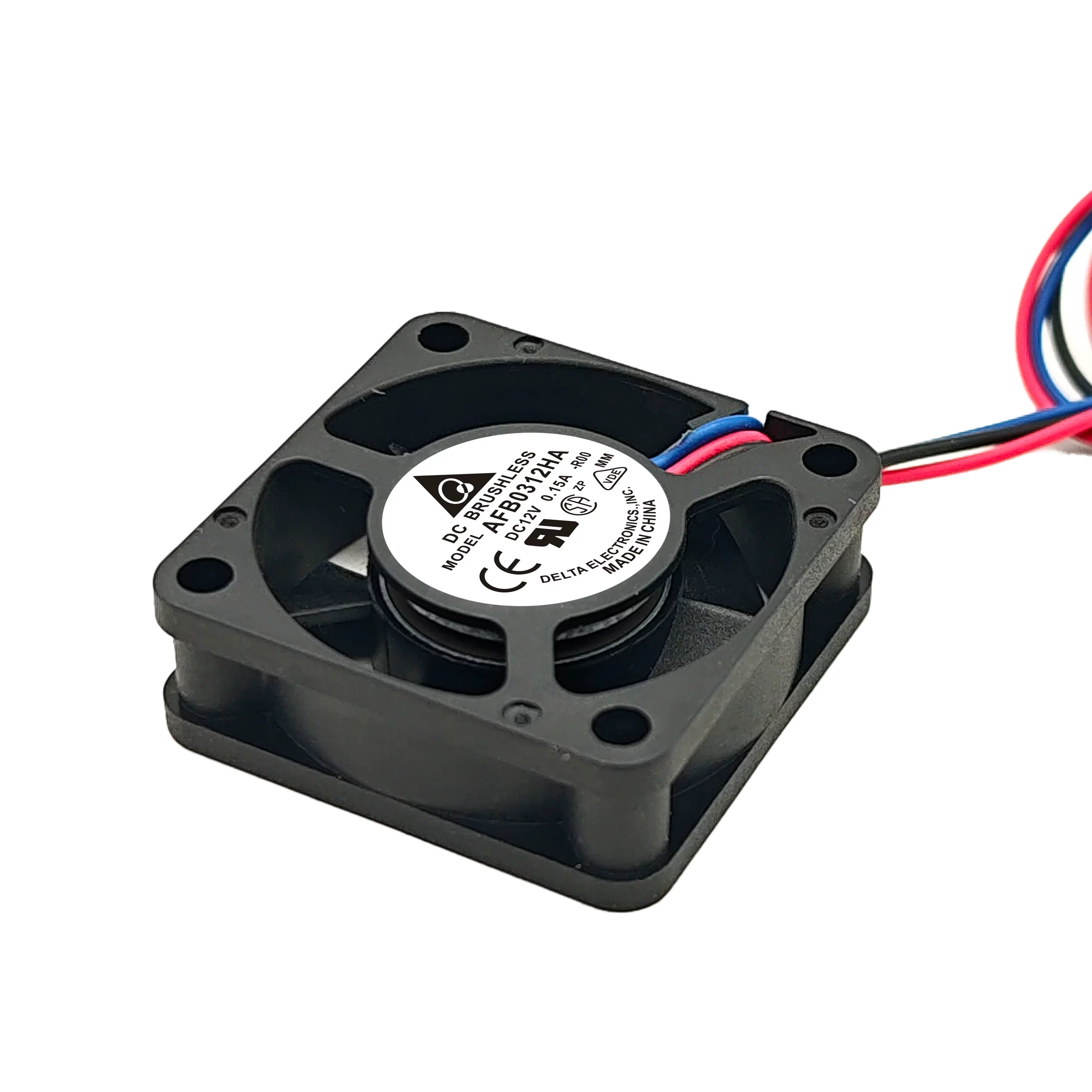

The Delta AFB0312HA-R00 is a high-performance 12V DC axial cooling fan, specifically designed for compact electronic applications requiring efficient thermal management. Measuring 30mm x 30mm x 10mm, this fan is a powerful solution for its size. It operates at a rated current of 0.15A with a power consumption of 1.08W. This fan achieves a very high rotational speed of 9000 RPM, delivering an airflow of 3.5 CFM. Despite its high speed, it maintains a low noise level of 25 dBA. Equipped with durable ball bearings, it ensures a long operational lifespan. The “R00” suffix indicates a 3-wire connection that includes a rotation detect signal (tachometer) for speed monitoring.
Model Number: AFB0312HA-R00
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 30mm x 30mm x 10mm
Rated Voltage: 12V DC
Operating Voltage Range: 9.5V to 13.8V DC
Rated Current: 0.15A
Rated Power: 1.08W
Speed: 9000 RPM
Airflow: 3.5 CFM
Static Pressure: 0.098 inch-H2O (2.5 mmAq)
Noise Level: 25 dBA
Connector: 3-Wire Leads (with Rotation Detect/Tachometer Output Signal)
Bearing Type: Ball Bearing
Life Expectancy: 60,000 to 70,000 hours at 40°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Rotation Detect/Tachometer Output
