Description

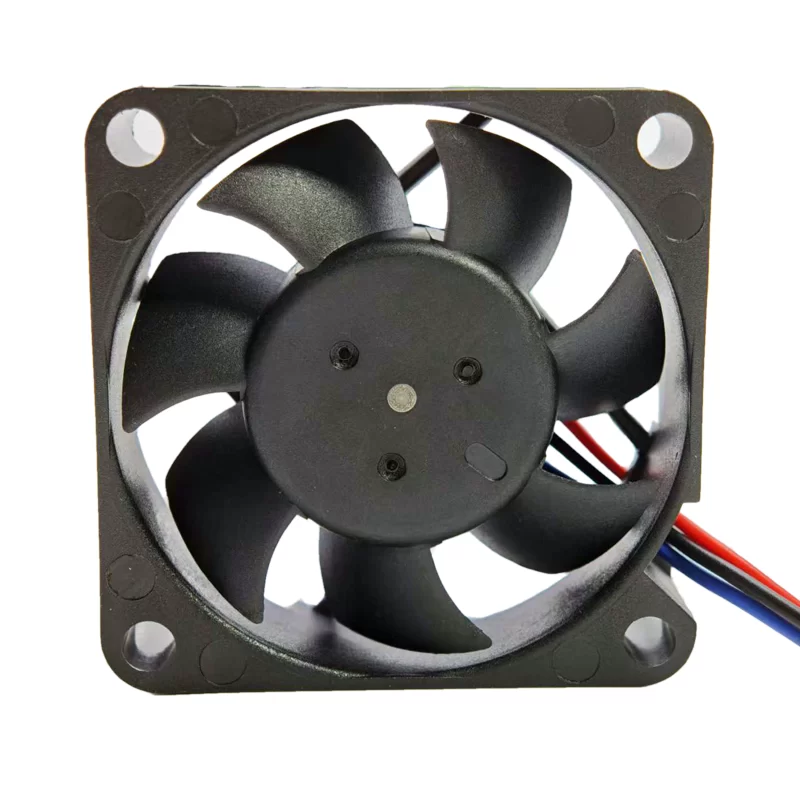

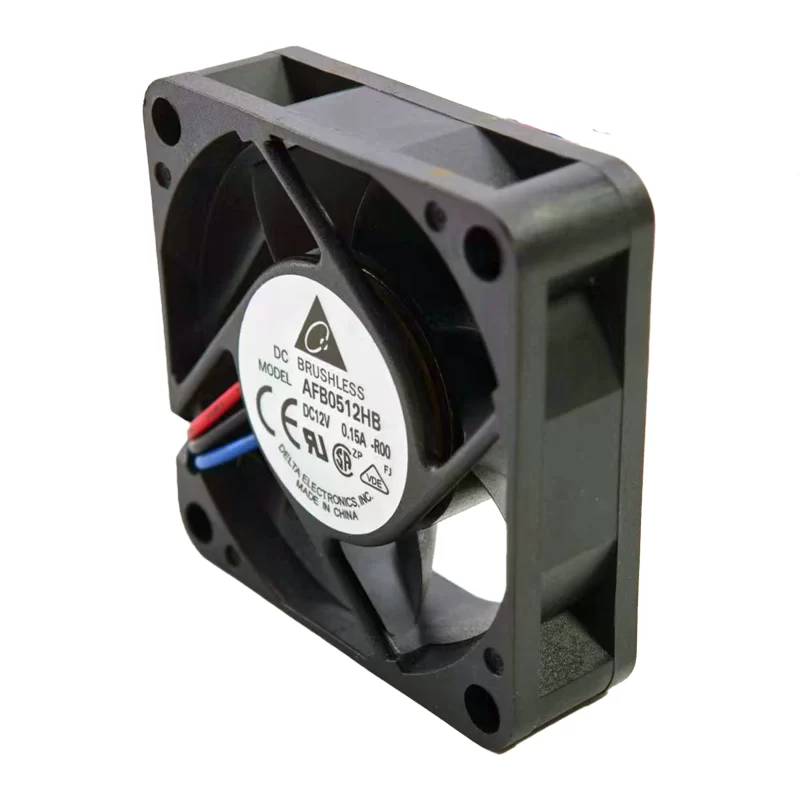

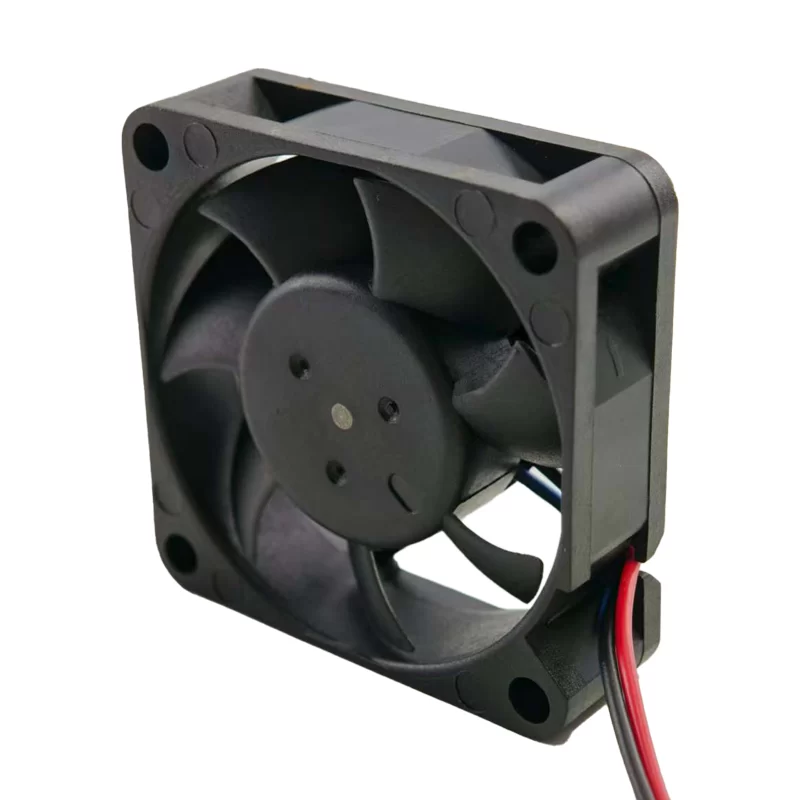

The Delta AFB0512HB-R00 is a DC Axial Fan with dimensions of 50x50x15mm. It operates on a rated voltage of 12VDC within a range of 7.0 to 13.8VDC. The fan has a current draw of 0.15A and consumes 1.8W of power. It achieves a speed of 5600 RPM, providing an airflow of 14.13 CFM and a static pressure of 0.240 inchH2O. With a noise level of 32.0 dBA, a durable ball bearing system, and a 3-wire lead including a lock signal, this fan offers a long life expectancy of 70,000 hours at 40°C. The fan also features locked rotor protection.
AFB0512HB-R00 Fan Parameters
Model: AFB0512HB-R00
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 50 x 50 x 15 mm
Weight: 32 g
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Current Draw: 0.15 A
Power Input: 1.8 W
Fan Speed: 5600 RPM
Airflow: 14.13 CFM
Static Pressure: 0.240 inchH2O
Noise Level: 32.0 dB(A)
Bearing Type: Ball Bearing
Termination: 3-wire lead
Rotation: Clockwise, viewed from name plate side
Insulation Class: UL: CLASS A
Life Expectancy: 70,000 hours at 40 °C
Operating Temperature: -10 to +70 °C
Features: Locked Rotor Sensor, Over Current Shut Down when locking rotor
Application: Computer and server cooling, Industrial electronics, Medical equipment, Appliances
