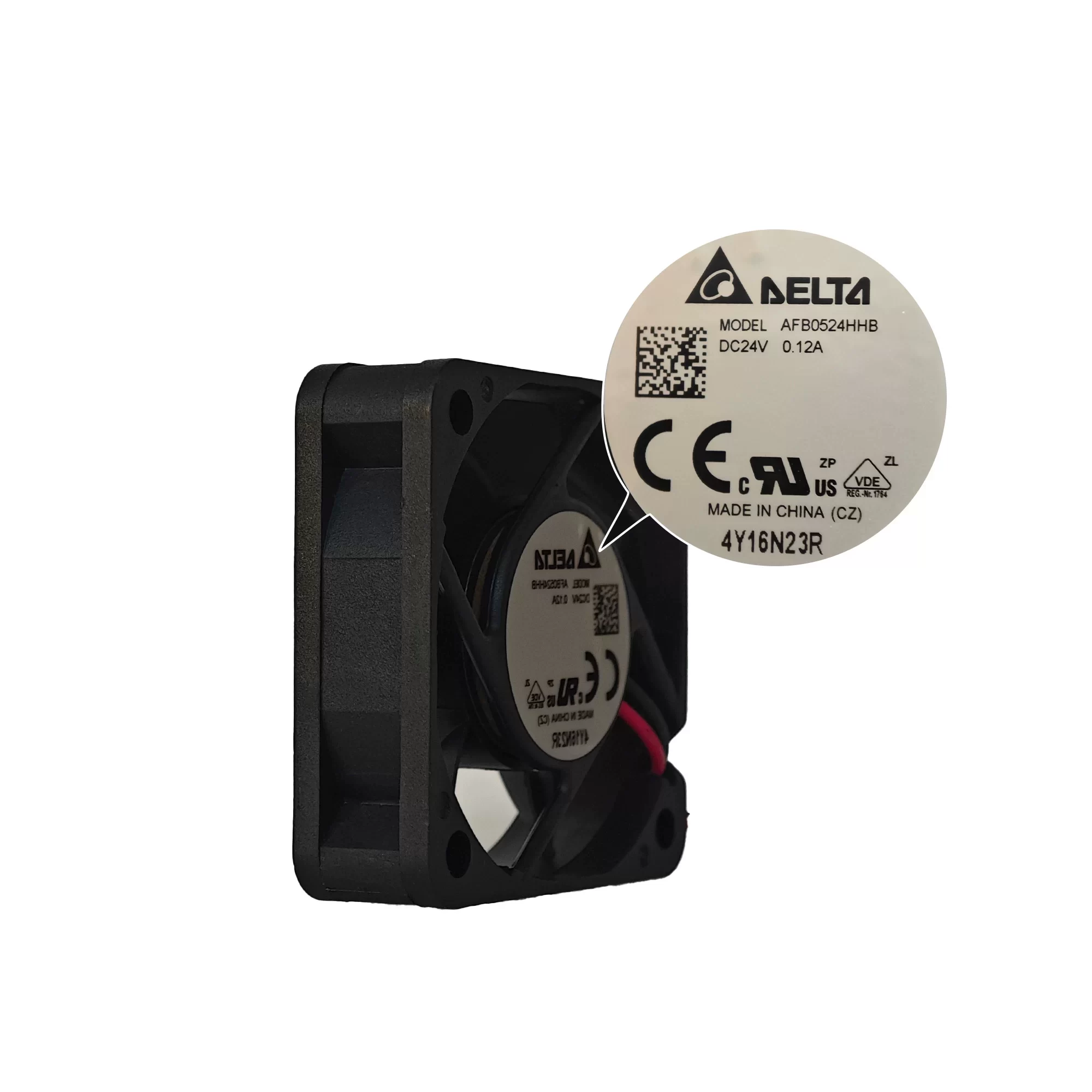

AFB0524HHB Delta 24V DC Axial Fan

Description

The Delta AFB0524HHB is a high-speed 24VDC axial fan with dimensions of 50x50x15mm. It is designed to provide powerful airflow for its size, reaching 16.24CFM (0.460m³/min), and can generate up to 8.00mmH₂O (0.315inchH₂O) of static pressure while operating at a speed of 6400RPM. This fan consumes 2.88W of power and draws 0.12A of current. It incorporates reliable ball bearings for a rated lifetime of 70,000hours at 40°C and features a plastic frame and impeller. The fan operates effectively within a temperature range of -10 to 70°C and includes locked rotor protection. It is commonly used for cooling components in compact electronic devices, small servers, and other equipment where space is limited but high airflow is required.

AFB0524HHB Fan Parameters
Manufacturer: Delta
Model: AFB0524HHB
Fan Type: DC Axial Fan
Dimensions: 50 x 50 x 15 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14 ~ 27.6 VDC
Current Rating: 0.12 A
Power Consumption: 2.88 W
Airflow: 16.24 CFM (0.460 m³/min)
Static Pressure: 8.00 mmH₂O (0.315 inch H₂O)
Speed: 6400 RPM
Noise Level: 36.0 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Features: Locked Rotor Protection
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 ~ 70°C
Lifetime @ Temp: 70,000 Hours @ 40°C
Weight: 0.032 kg
Application: This Delta DC axial fan is suitable for cooling components in compact electronic devices, small servers, and other equipment where high airflow is required.
