Description

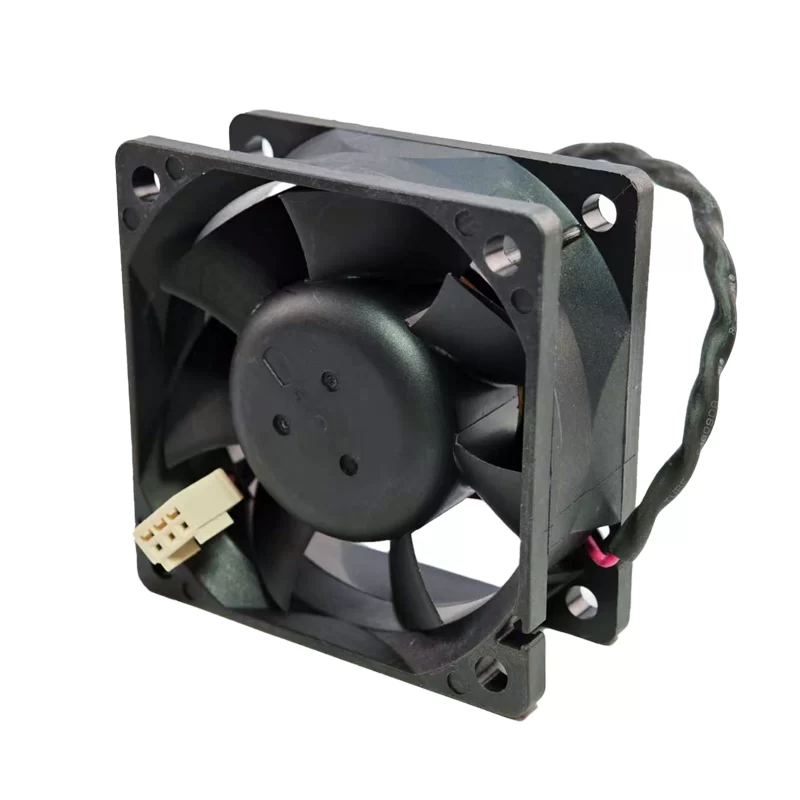

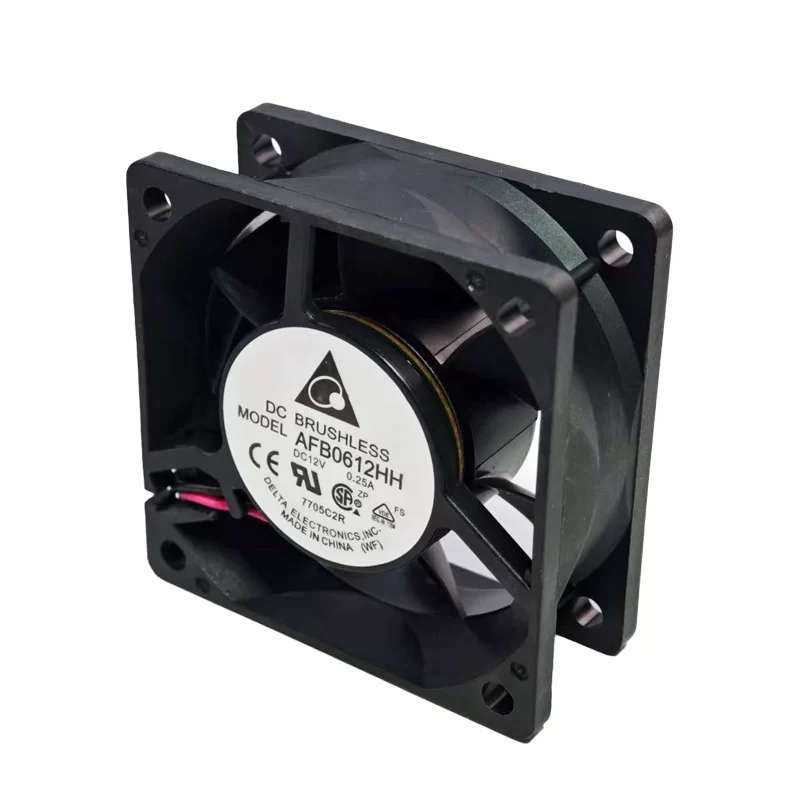

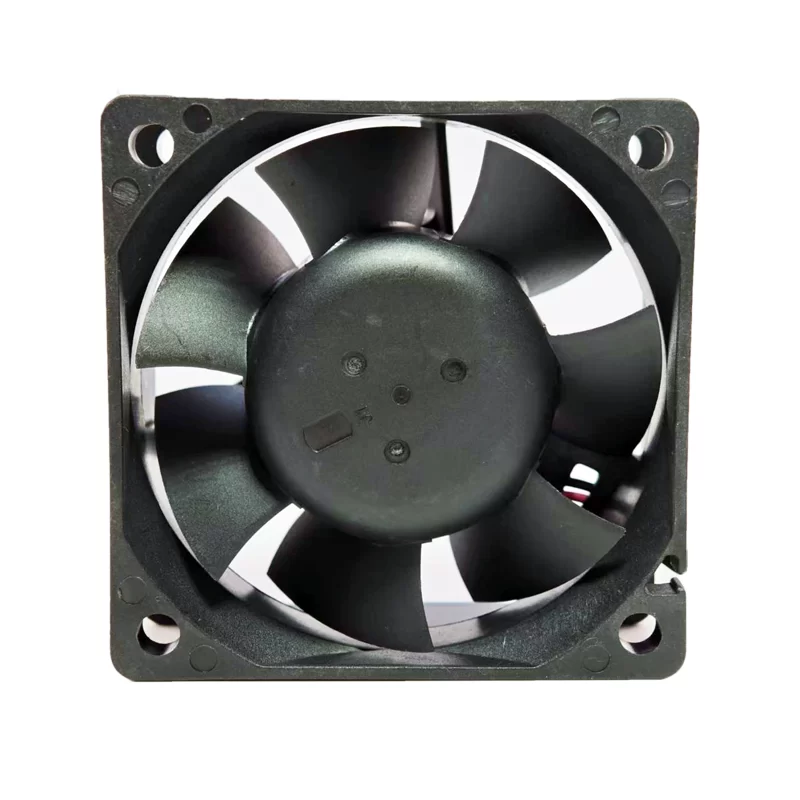

Delta new original and authentic AFB0612HH 12V 0.25A 6025 ball cooling fan
Model: AFB0612HH
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25.4mm
Nominal Voltage: 12V DC
Operating Voltage Range: 4.0V to 13.8V DC
Current: 0.25A
Power Consumption: 3.0W
Speed: 5000 RPM
Airflow: 27.55 CFM
Static Pressure: 0.297 In H2O
Noise Level: 40 dBA
Bearing Type: Dual Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, locked rotor protection.
The Delta AFB0612HH is a high-performance 12V DC axial fan, measuring 60mm x 60mm x 25.4mm, manufactured by Delta Electronics. This fan is engineered for demanding cooling applications that require substantial airflow and static pressure in a compact form factor. It features durable dual ball bearings, contributing to a long operational lifespan of 70,000 hours at 40°C. Drawing 0.25A of current, it consumes 3.0W of power. This fan operates at a high speed of 5000 RPM, delivering a strong 27.55 CFM of airflow and generating 0.297 inches of H2O static pressure, with a moderate 40 dBA noise level. Equipped with 2-wire leads and featuring locked rotor protection, the Delta AFB0612HH is an excellent choice for cooling components in servers, networking equipment, industrial control systems, and high-performance computing devices that require robust and reliable thermal management.
