Description

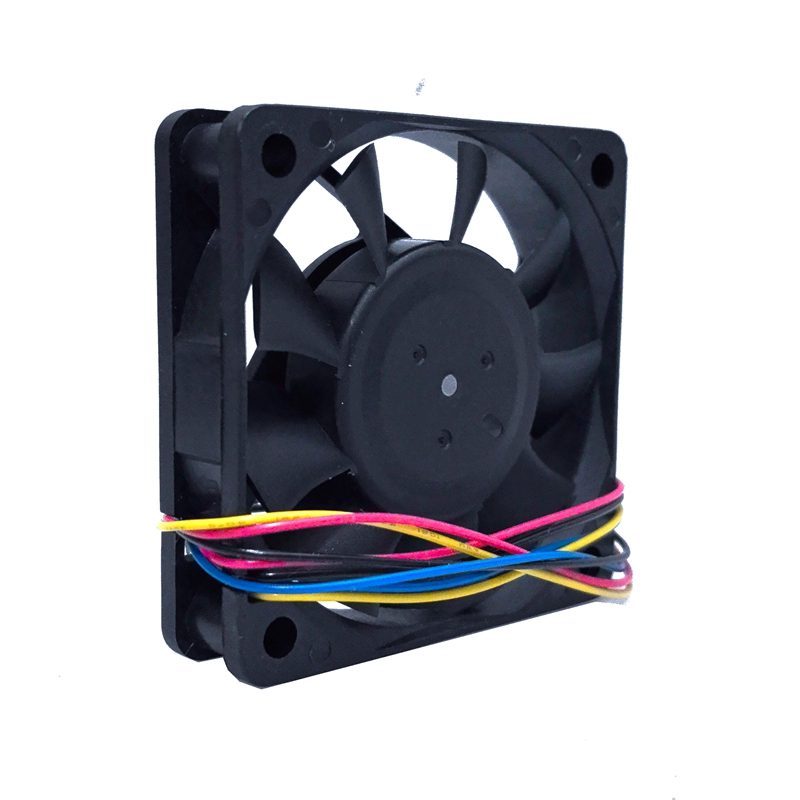

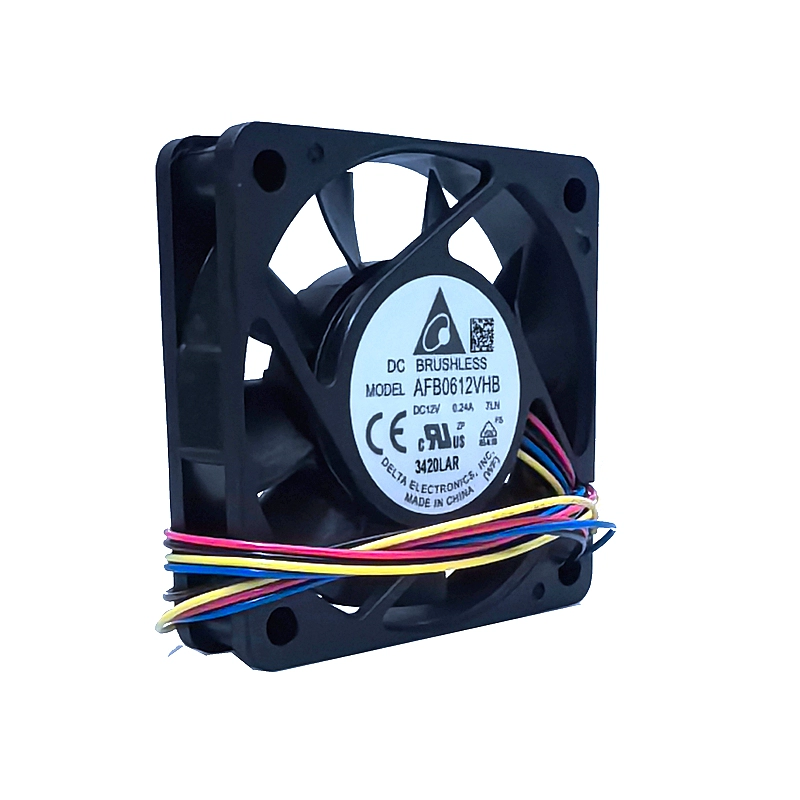

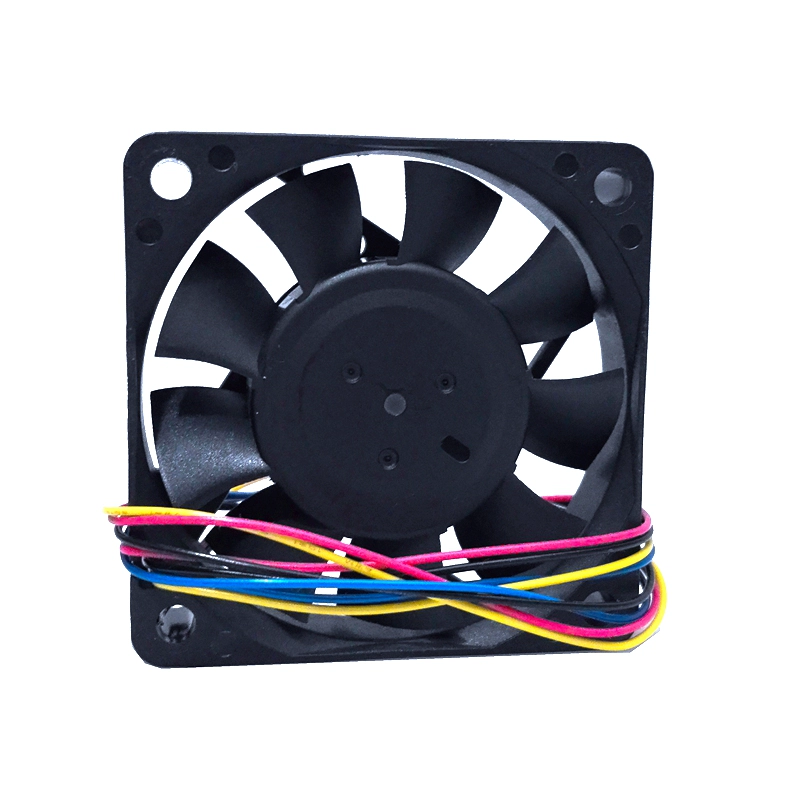

The Delta AFB0612VHB-7LN is a compact 60x60x15mm DC axial fan designed for effective thermal management in electronic components and enclosures. Operating on 12 VDC within a typical voltage range of 7–13.8 VDC, this fan now draws 0.24A of current, consuming 2.88W of power. It achieves a rotational speed of 5000 RPM, delivering an airflow of 19.4 CFM (approximately 0.55 m³/min or 33 m³/h). With a noise level of 37 dB(A) and utilizing durable ball bearings, it ensures reliable and relatively quiet operation. This model now features 4-wire leads for connection, typically including pulse (tachometer) output and PWM control for precise speed management. Its plastic housing and efficient design make it suitable for various applications including computer cooling, small appliances, and industrial control systems.
AFB0612VHB-7LN Fan Parameters
Model Number: AFB0612VHB-7LN
Manufacturer: Delta Electronics
Series: AFB
Type: DC Axial Fan (Tubeaxial)
Dimensions: 60mm x 60mm x 15mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7–13.8 VDC
Rated Current: 0.24A
Power Consumption: 2.88 W
Speed: 5000 RPM
Airflow: 19.4 CFM (0.55 m³/min or 33 m³/h)
Static Pressure: 59.8 Pa (0.240 inch H2O)
Noise Level: 37 dB(A)
Bearing Type: Ball Bearing
Housing Material: Plastic
Termination: 4-Wire Leads
Control Features: Pulse Sensor (Tachometer output), PWM Control
Protection Features: Locked Rotor Sensor
Expected Life: 70,000 hours @ 40°C
Operating Temperature: -10°C to +70°C
Weight: 44.45 g (0.098 lb)
Certifications: CE, CSA, UL, VDE
Application: Computer cooling, small electronic devices, power supplies, industrial control, general enclosure ventilation.
