Description

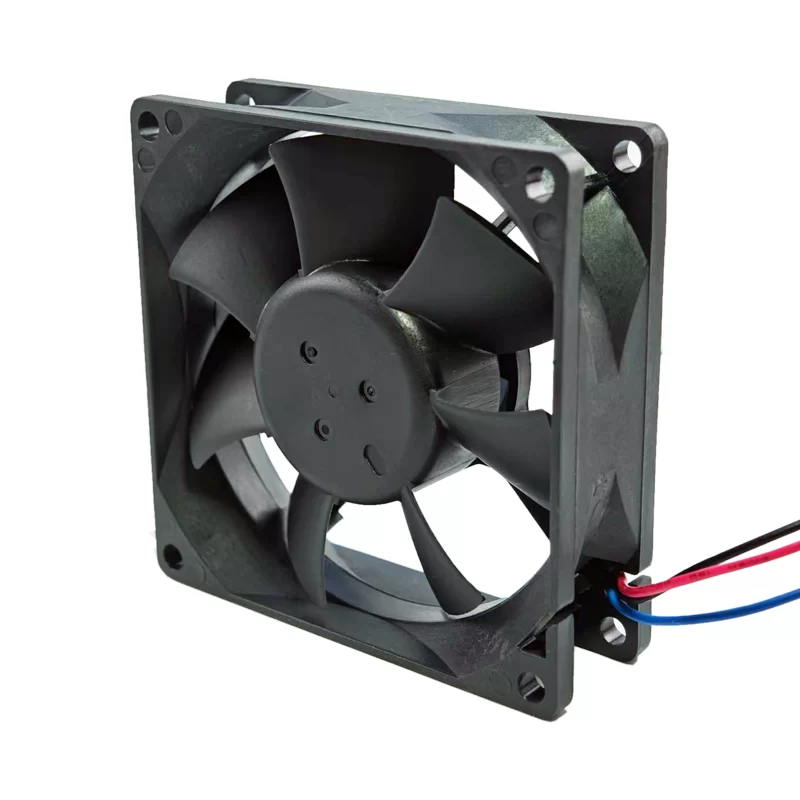

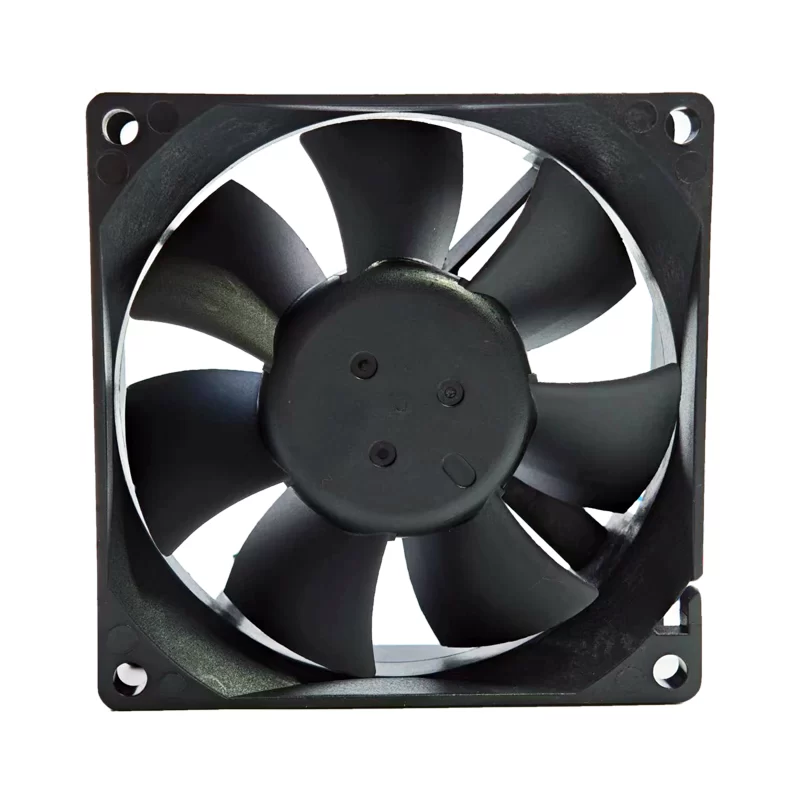

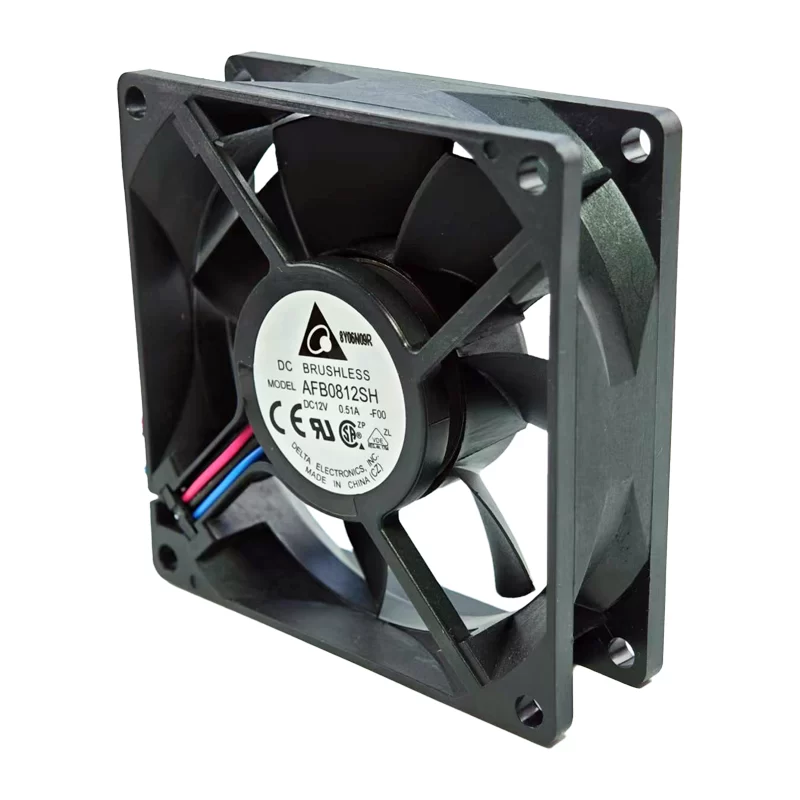

Delta brand new original authentic AFB0812SH-F00 12V 0.51A 8025 8CM ball cooling fan
Model Number: AFB0812SH-F00
Manufacturer: Delta Electronics
Series: AFB
Fan Type: DC Brushless Axial Fan

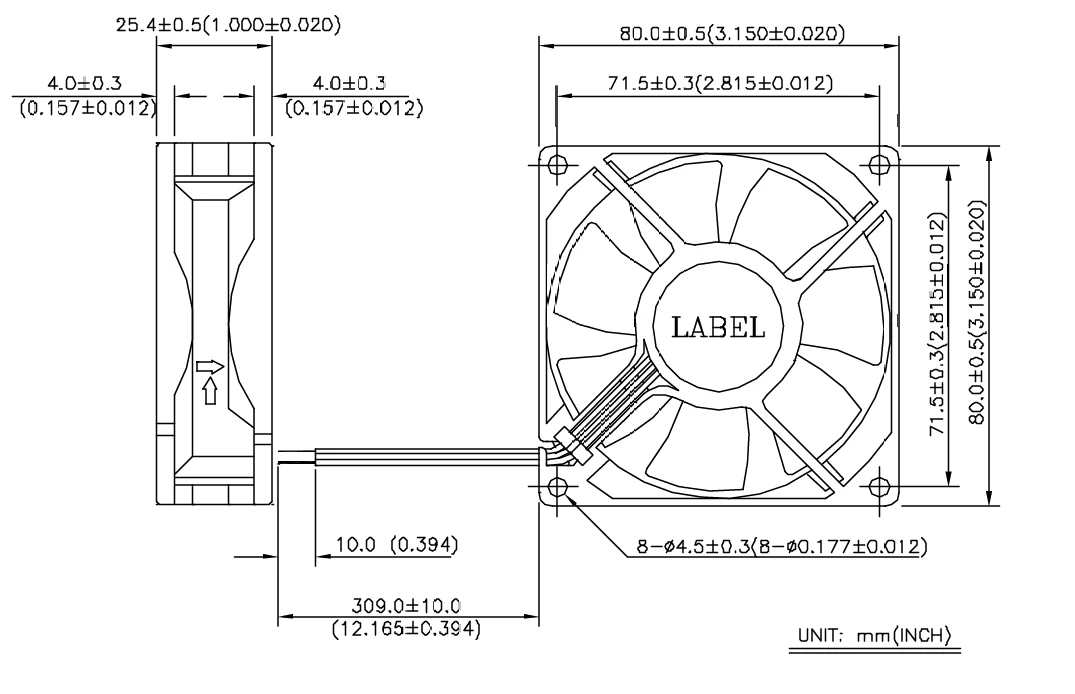

Dimensions L x H x W: 80 mm x 80 mm x 25.4 mm

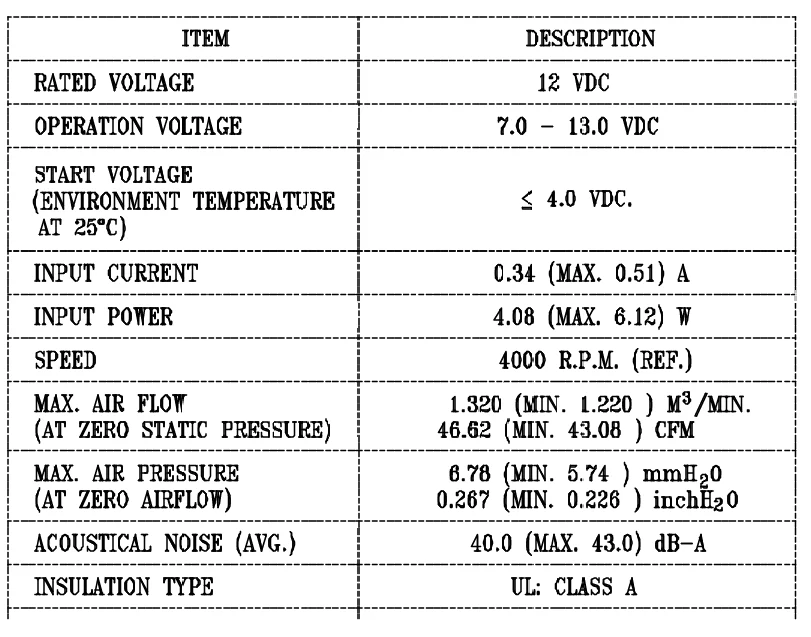

Rated Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.51A
Input Power: 4.08 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 4000 RPM
Maximum Airflow: 46.62 CFM or 1.32 m³/min
Maximum Static Pressure: 0.267 in H2O or 6.78 mmH2O
Noise Level: 40.0 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Locked Rotor Protection, Speed Sensor (Tachometer/Frequency Generator)
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: 80 g
Safety Approvals: CE, CSA, UL, VDE
The Delta AFB0812SH-F00 is a robust 80x80x25.4mm DC axial fan from Delta’s AFB series. Operating on 12VDC, it consumes 4.08W of power with a current draw of 0.51A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a substantial airflow of 46.62 CFM at a speed of 4000 RPM, generating notable static pressure of 0.267 in H2O, with a moderate noise level of 40.0 dBA. The 3-wire configuration provides a tachometer output for real-time speed monitoring, which is crucial for critical systems, and it also includes locked rotor protection for enhanced reliability. This fan is a common and effective choice for cooling various electronic enclosures, power supplies, industrial equipment, desktop PCs, and other applications requiring stable airflow and monitoring capabilities.
