Description

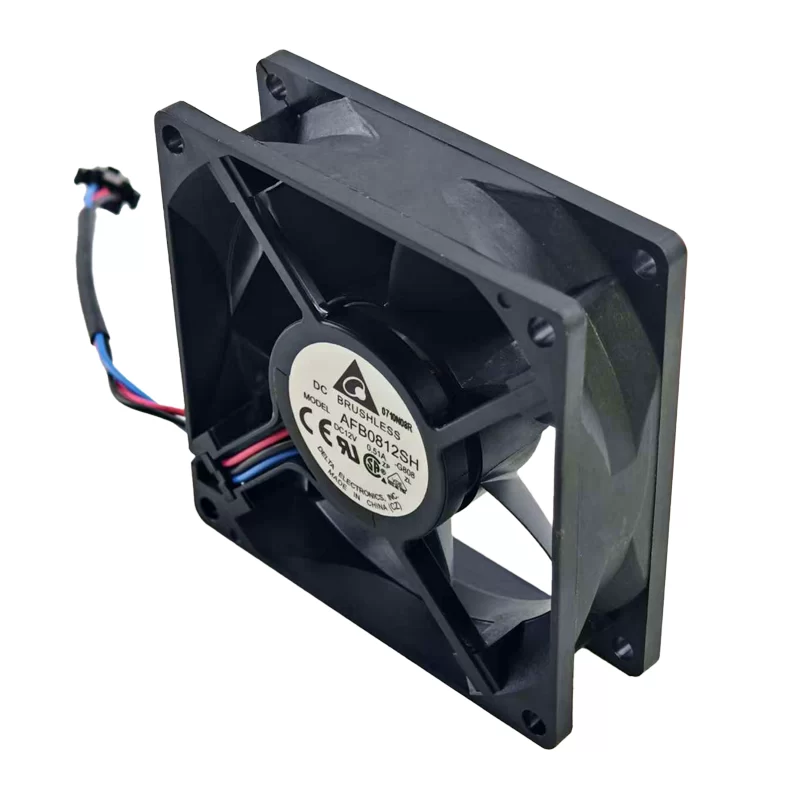

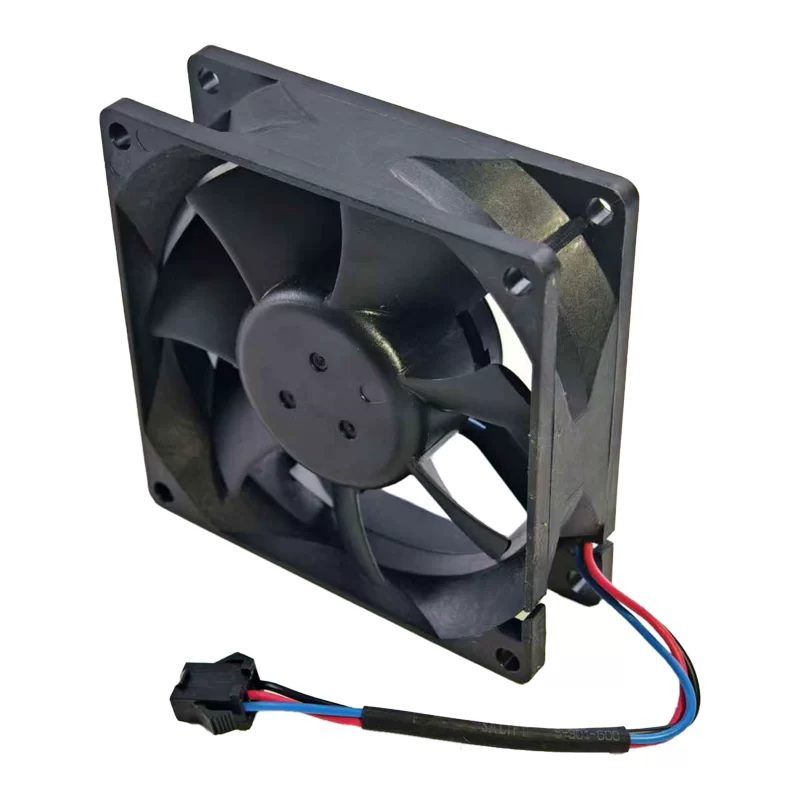

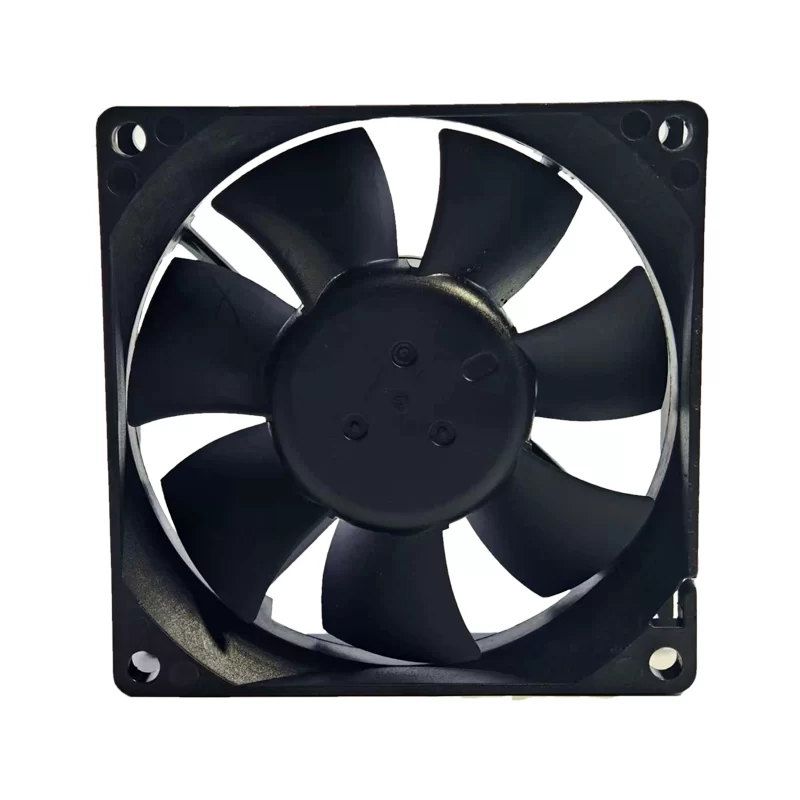

The Delta AFB0812SH-G808 is a DC axial fan measuring 80 x 80 x 25 mm. It operates on 12V DC, with a current rating of 0.34 A and a power consumption of 4.08 W. The fan delivers an airflow of 46.6 CFM (79.1 m³/h) and generates a static pressure of 0.267 inch H₂O (66.5 Pa). It runs at a speed of 4000 RPM with a noise level of 40 dBA. This fan uses ball bearings for enhanced durability and features three-wire leads for speed monitoring.
AFB0812SH-G808 Fan Parameters
Manufacturer: Delta Electronics
Model: AFB0812SH-G808
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.34 A
Label Current: 0.51 A
Power Consumption: 4.08 W
Airflow: 46.6 CFM (79.1 m³/h)
Static Pressure: 0.267 inch H₂O (66.5 Pa)
Speed: 4000 RPM
Noise Level: 40 dBA
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Housing Material: Thermoplastic (UL94-0)
Impeller Material: Thermoplastic (UL94-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 80 g
Application: The AFB0812SH-G808 is a DC axial fan suitable for various electronic cooling applications. Its balance of airflow, static pressure, and noise level makes it a good choice for server cooling, power supplies, industrial control panels, and network equipment where reliable performance and speed monitoring are needed.
