Description

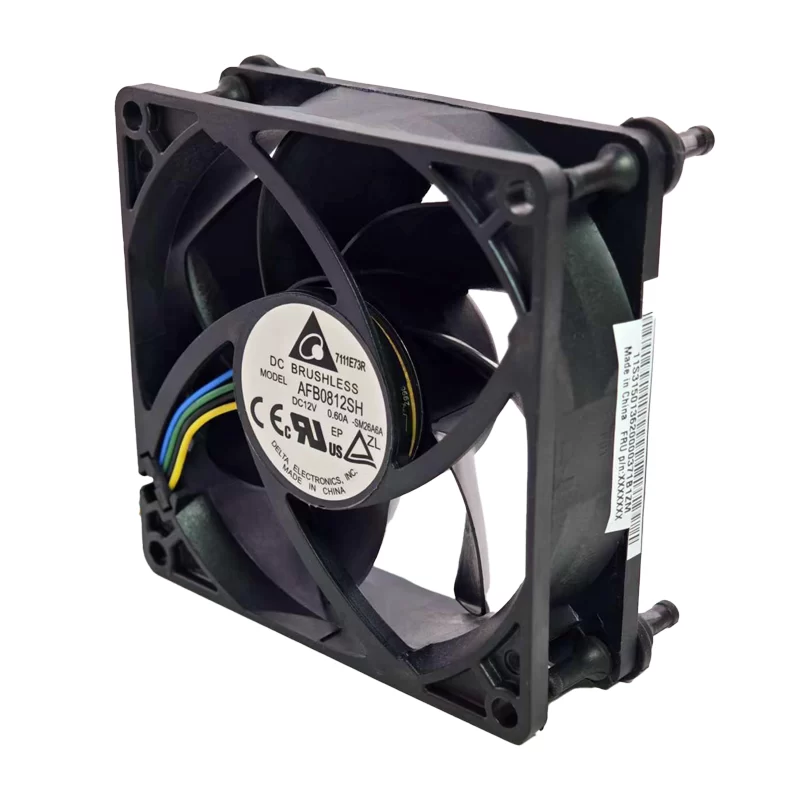

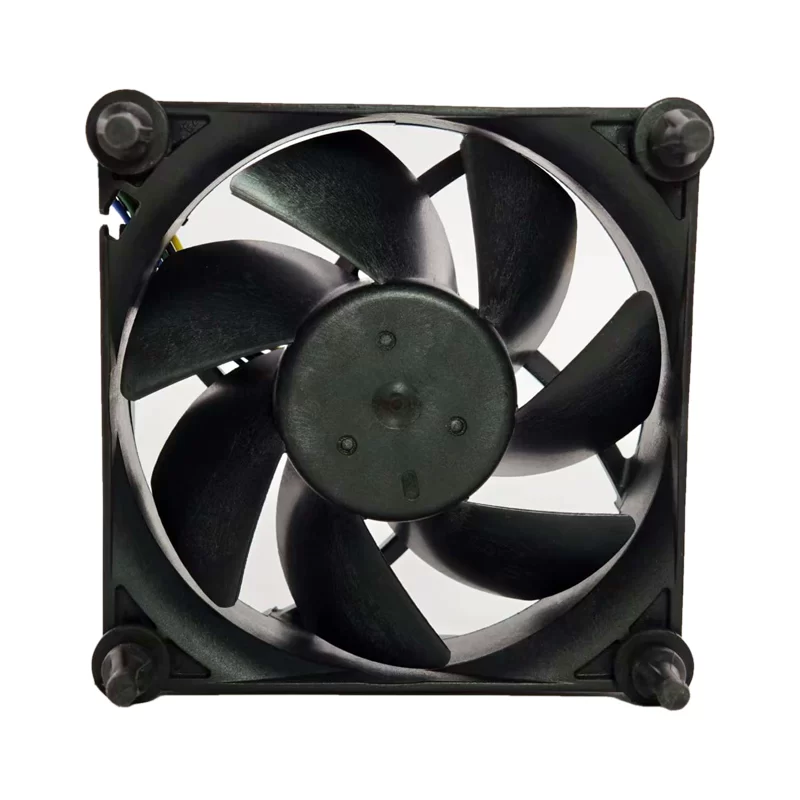

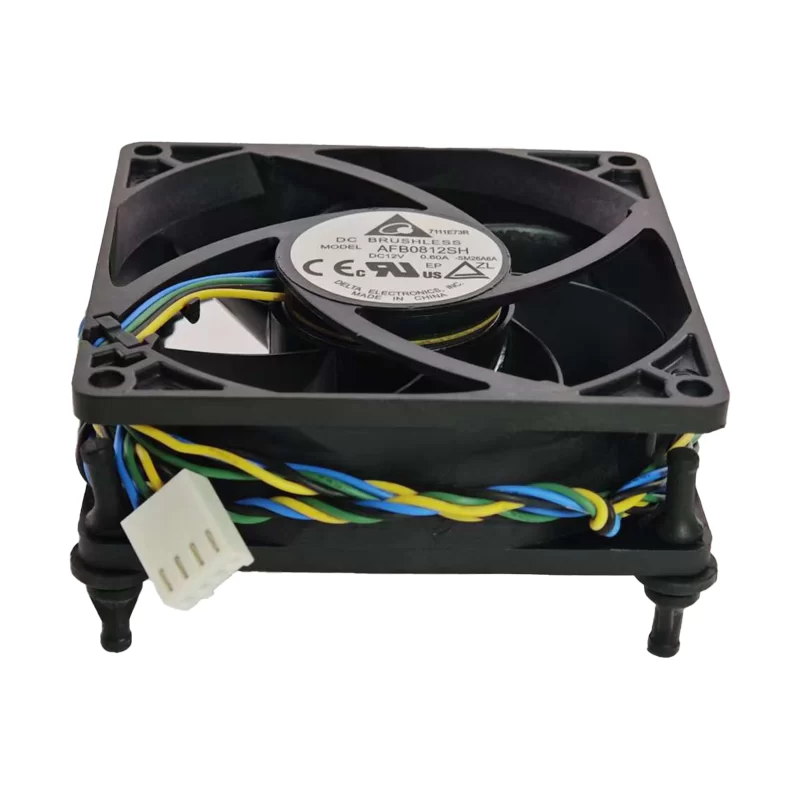

The Delta AFB0812SH-SM26A6A is a high-performance 12V DC axial cooling fan. Measuring 80mm x 80mm x 25mm, this fan from Delta Electronics is designed for efficient cooling in various electronic applications, often found in computer systems and servers. It operates at a rated voltage of 12V DC (operating range 7.0V to 13.6V DC), drawing 0.60A of current for a power consumption of 7.2W. It achieves a rotational speed of 4900 RPM. Its noise level is 30.0 dBA. Featuring durable double ball bearings and a lifespan of 70,000 hours at 40°C, it comes equipped with 4-wire leads for power, ground, PWM speed control, and tachometer output, along with features like locked rotor protection and auto restart. It is designed for operation in temperatures from -10°C to +70°C.
Model Number: AFB0812SH-SM26A6A
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan (High-Performance)
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.6V DC
Rated Current: 0.60A
Rated Power: 7.2W
Speed: 4900 RPM
Airflow: Not specified
Static Pressure: Not specified
Noise Level: 30.0 dBA
Connector: 4-Wire Leads
Bearing Type: Double Ball Bearing
Life Expectancy: 70,000 Hours @ 40°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Weight: Not specified
Features: PWM Control, Tachometer Output (Speed Sensor), Locked Rotor Protection, Auto Restart
Approvals/Certifications: RoHS Compliant
