Description

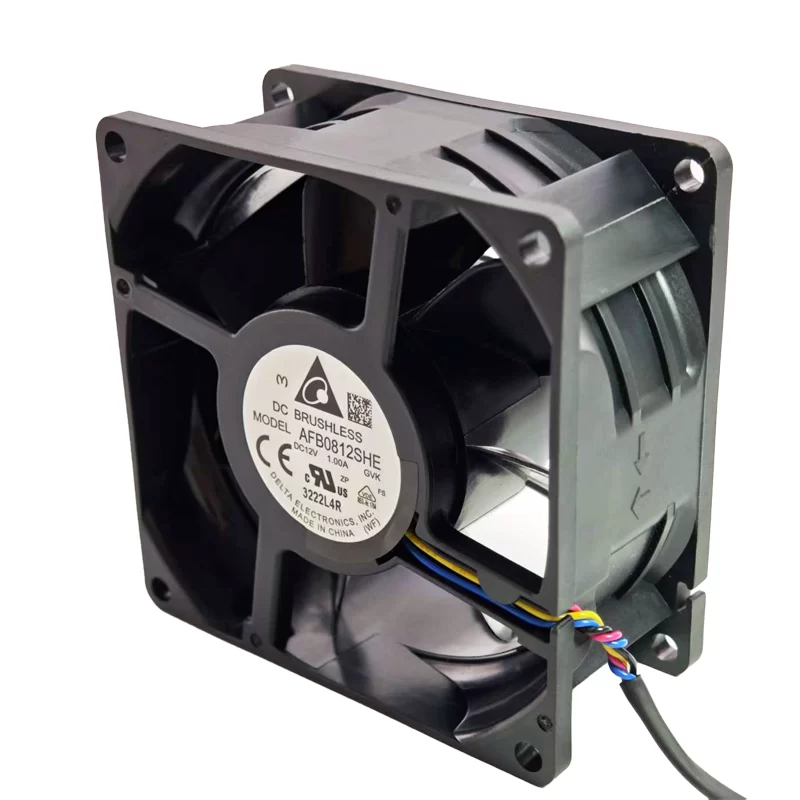

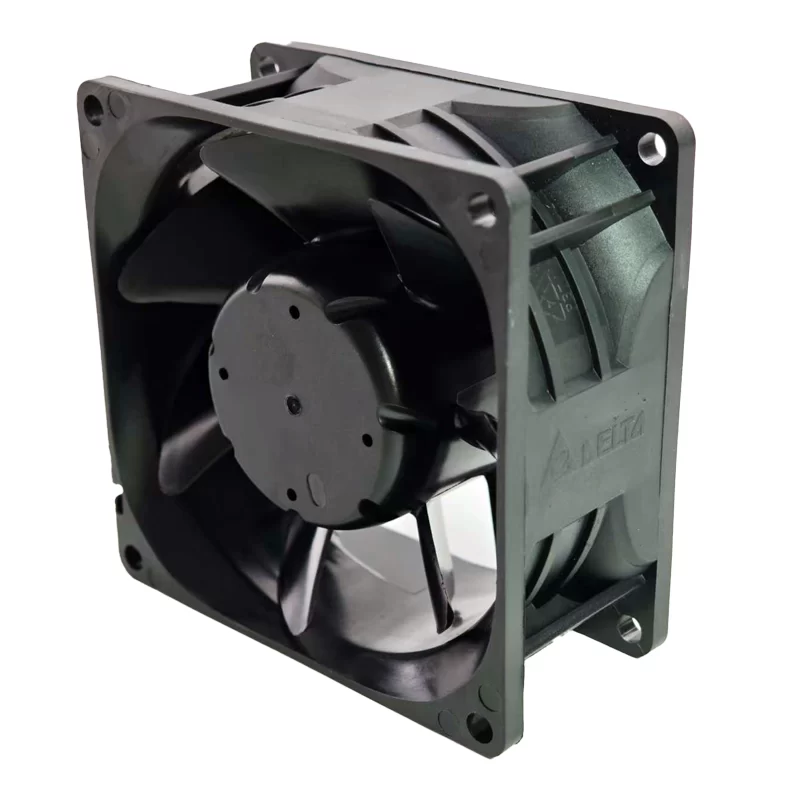

The Delta AFB0812SHE-GVK is an ultra-high-performance 12V DC axial cooling fan. Measuring 80mm x 80mm x 38mm, this fan from Delta Electronics is designed for the most demanding thermal management applications requiring extreme airflow and static pressure, commonly found in high-density servers, power supplies, and critical industrial equipment. It operates at a rated voltage of 12V DC (operating range 6.0V to 13.8V DC), drawing 1.0A of current for a power consumption of 12.0W. It achieves a blistering rotational speed of 6800 RPM, delivering an exceptional airflow of 102.0 CFM and a very high static pressure of 0.873 inch-H2O. Its noise level is 57.0 dBA. Featuring durable double ball bearings and a lifespan of 70,000 hours at 40°C, it comes with 4-wire leads for power, ground, PWM speed control, and tachometer output. It is designed for operation in temperatures from -10°C to +70°C.
Model Number: AFB0812SHE-GVK
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan (Ultra-High-Performance)
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 1.00A
Rated Power: 12.0W
Speed: 6800 RPM
Airflow: 102.0 CFM (2.888 m³/min)
Static Pressure: 0.873 inch-H2O (217.4 Pa)
Noise Level: 57.0 dBA
Connector: 4-Wire Leads
Bearing Type: Double Ball Bearing
Life Expectancy: 70,000 Hours @ 40°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Weight: 156g
Features: PWM Control, Tachometer Output (Speed Sensor), Locked Rotor Protection, High Airflow, High Static Pressure
Approvals/Certifications: CE, CSA, UL, VDE, RoHS Compliant, REACH Compliant
