Description

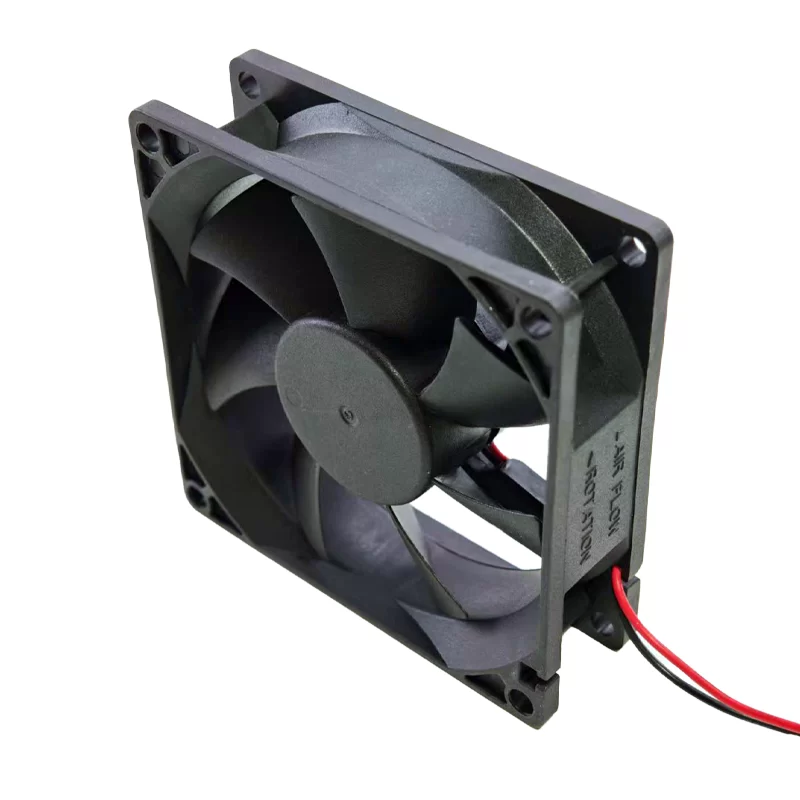

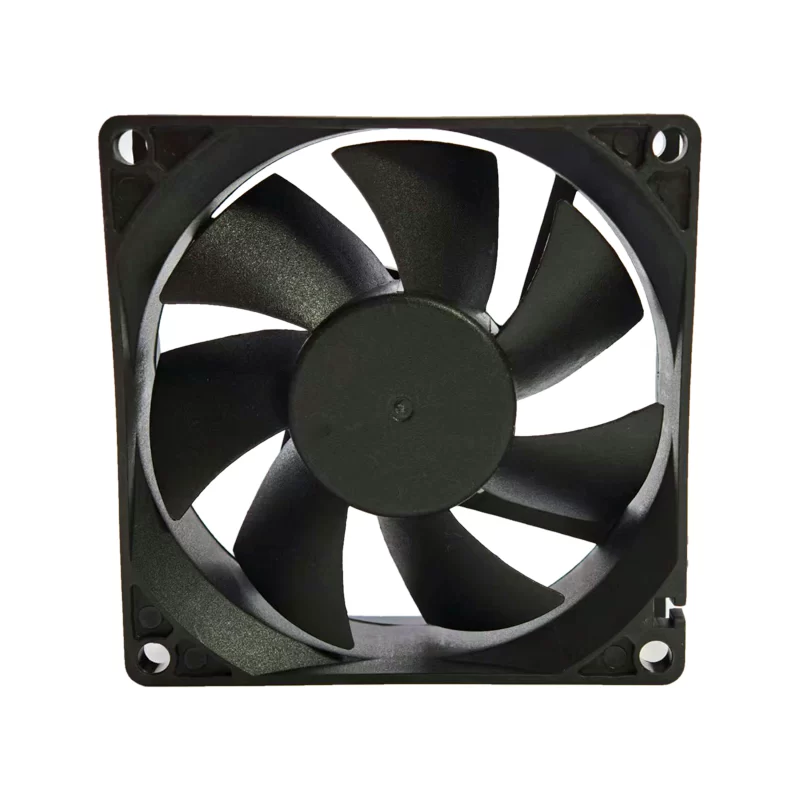

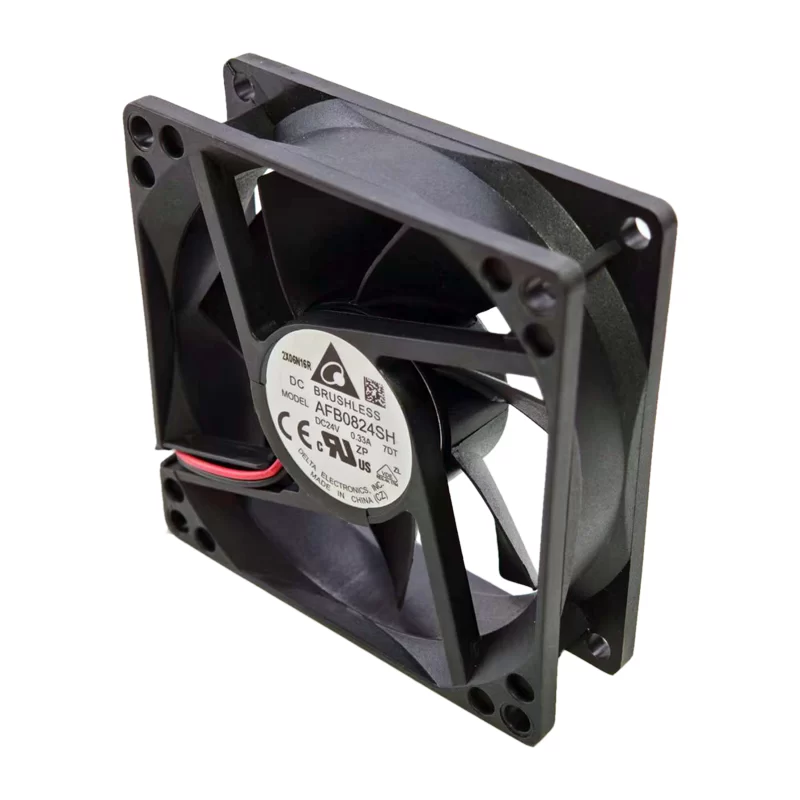

The Delta AFB0824SH-7DT is a high-performance DC Axial Fan with dimensions of 80x80x25mm. It operates on 24VDC, drawing 0.33A of current and consuming 7.92W of power. This fan achieves a high speed of 4000 RPM, delivering a strong airflow of 46.6 CFM with a static pressure of 0.306 Inch-H2O. It operates with a noise level of 40.0 dB(A). Featuring a durable ball bearing system, it is designed for reliable and efficient cooling in demanding applications where space is limited and high airflow is required. This version comes with 2-wire leads for connection.
AFB0824SH-7DT Fan Parameters
Model: AFB0824SH-7DT
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Current Draw: 0.33 A
Power Input: 7.92 W
Fan Speed: 4000 RPM
Airflow: 46.6 CFM
Static Pressure: 0.306 Inch-H2O
Noise Level: 40.0 dB(A)
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours
Connection: 2-wire leads
Application: Server cooling, Networking equipment, Industrial PCs, Power supply units, Other electronic enclosures.
