Description

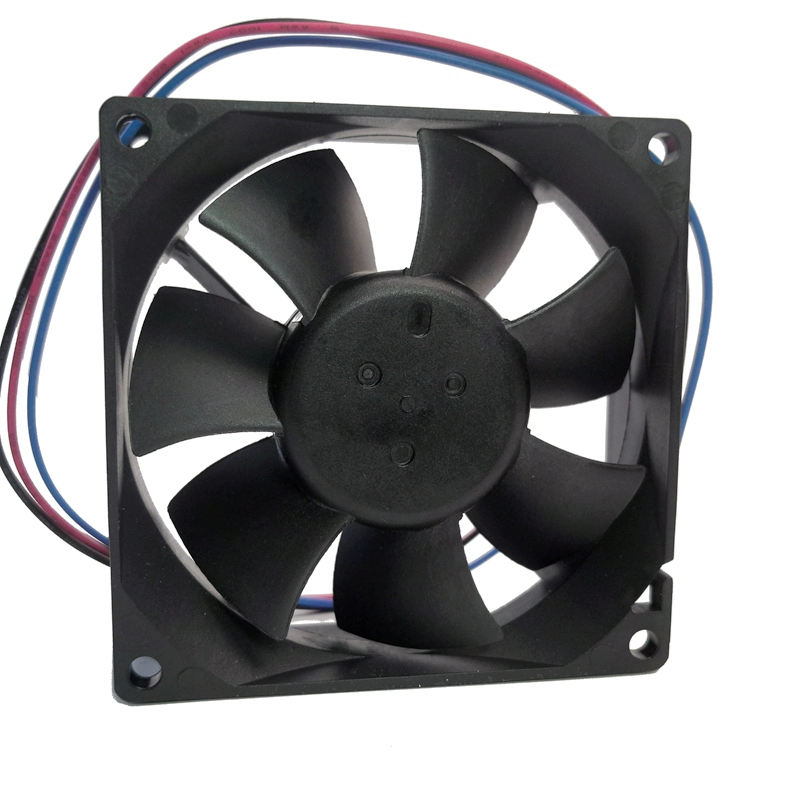

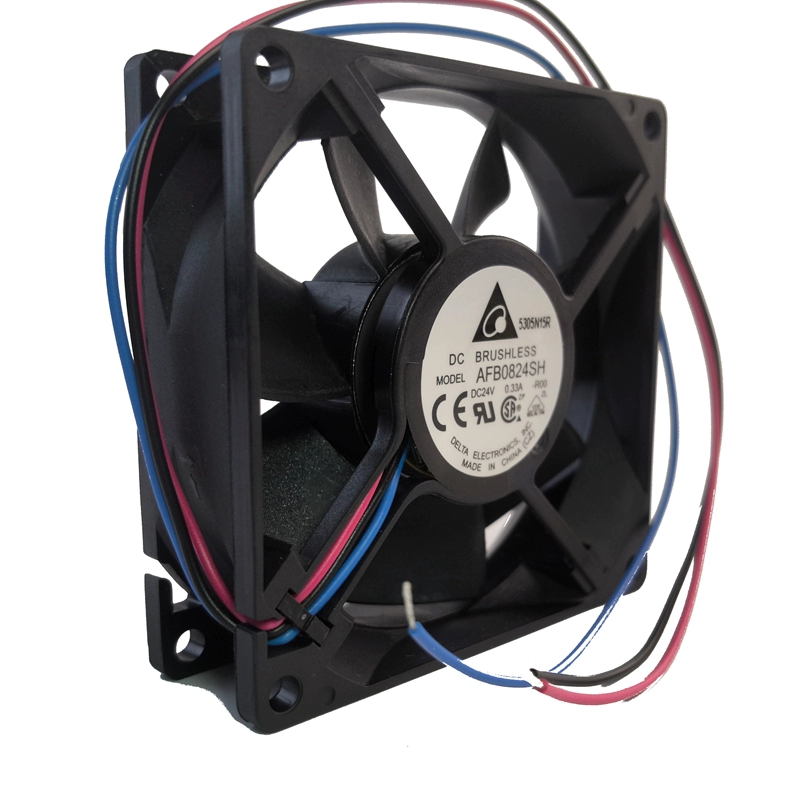

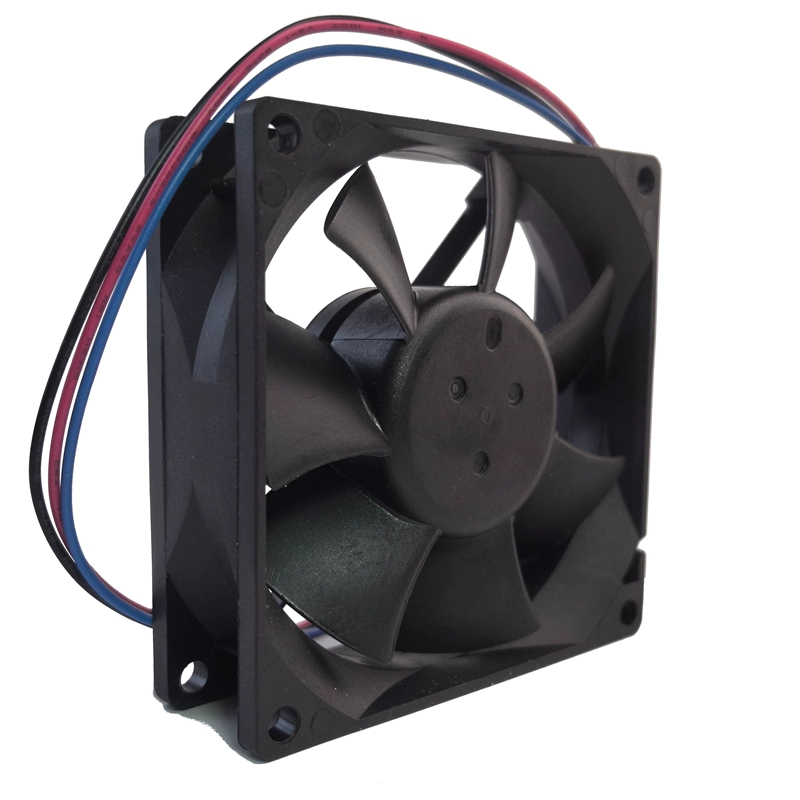

The Delta AFB0824SH-R00 is a high-performance 24V DC axial cooling fan, designed for robust thermal management in various electronic systems and industrial applications. Measuring 80mm x 80mm x 25mm, this fan is a compact yet powerful solution. Operating at a rated current of 0.33A (7.92W), it achieves a high rotational speed of 4000 RPM, delivering substantial airflow of around 46.6 CFM. Despite its high performance, it maintains a relatively moderate noise level of 40 dBA. The fan is equipped with durable ball bearings for a long operational life of 60,000 to 70,000 hours. The “R00” suffix indicates a 3-wire connection that includes a rotation detect signal (tachometer), allowing for speed monitoring.
Model Number: AFB0824SH-R00
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 14V to 26V DC
Rated Current: 0.33A
Rated Power: 7.92W
Speed: 4000 RPM
Airflow: 46.6 CFM (1.32 m³/min)
Static Pressure: 0.267 inch-H2O (6.78 mmH2O)
Noise Level: 40 dBA
Connector: 3-Wire Leads (with Rotation Detect/Rotor Lock Output Signal)
Bearing Type: Ball Bearing
Life Expectancy: 60,000 – 70,000 hours at 40°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor (Rotation Detect Signal)
