Description
Delta new original authentic AFB0824VH 24V 0.21A 8025 inverter cooling fan SH VH
Model Number: AFB0824VH-F00
Manufacturer: Delta Electronics
Series: AFB
Fan Type: DC Brushless Axial Fan

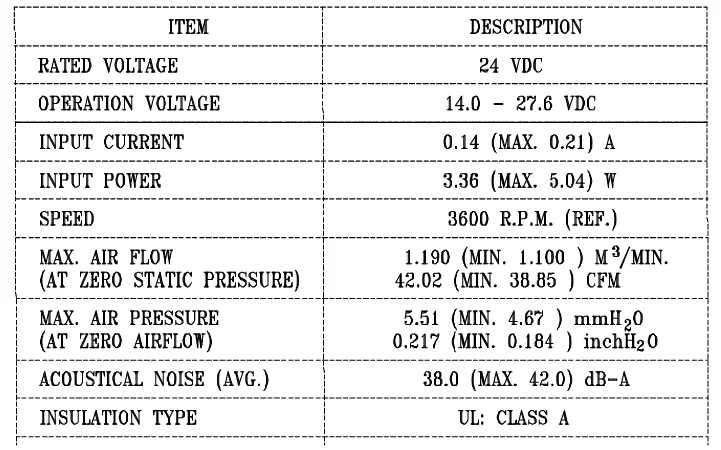

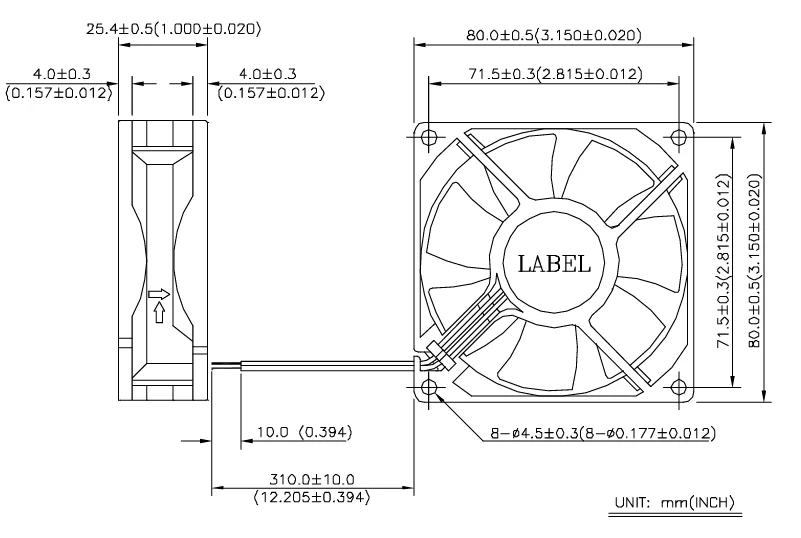

Dimensions L x H x W: 80 mm x 80 mm x 25.4 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14 VDC to 27.6 VDC
Rated Current: 0.14 A
Input Power: 3.36 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 3600 RPM
Maximum Airflow: 42.0 CFM
Maximum Static Pressure: 0.217 in H2O
Noise Level: 38.0 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Locked Rotor Protection, Speed Sensor (Tachometer/Frequency Generator)
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: 80 g
Safety Approvals: CE, CSA, UL, VDE
The Delta AFB0824VH-F00 is a reliable 80x80x25.4mm DC axial fan from Delta’s AFB series. Operating on 24VDC, it consumes 3.36W of power with a current draw of 0.14A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers an airflow of 42.0 CFM at a speed of 3600 RPM, with a moderate noise level of 38.0 dBA. The 3-wire configuration provides a tachometer output for real-time speed monitoring, which is essential for critical systems. It also includes locked rotor protection for enhanced reliability. This fan is a common and effective choice for cooling various electronic enclosures, power supplies, industrial equipment, and other applications requiring stable airflow and monitoring capabilities.
