Description

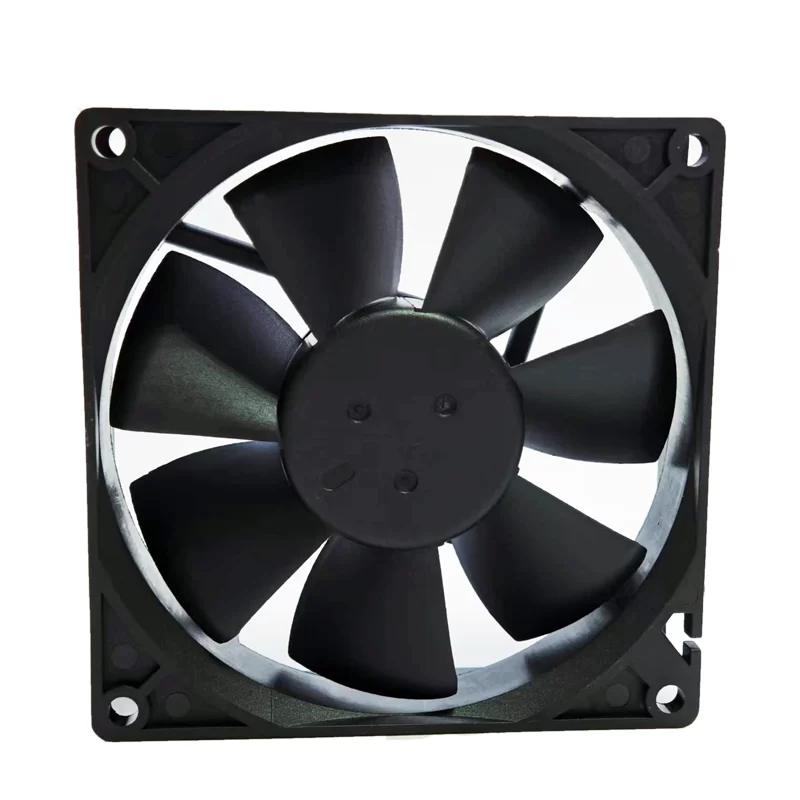

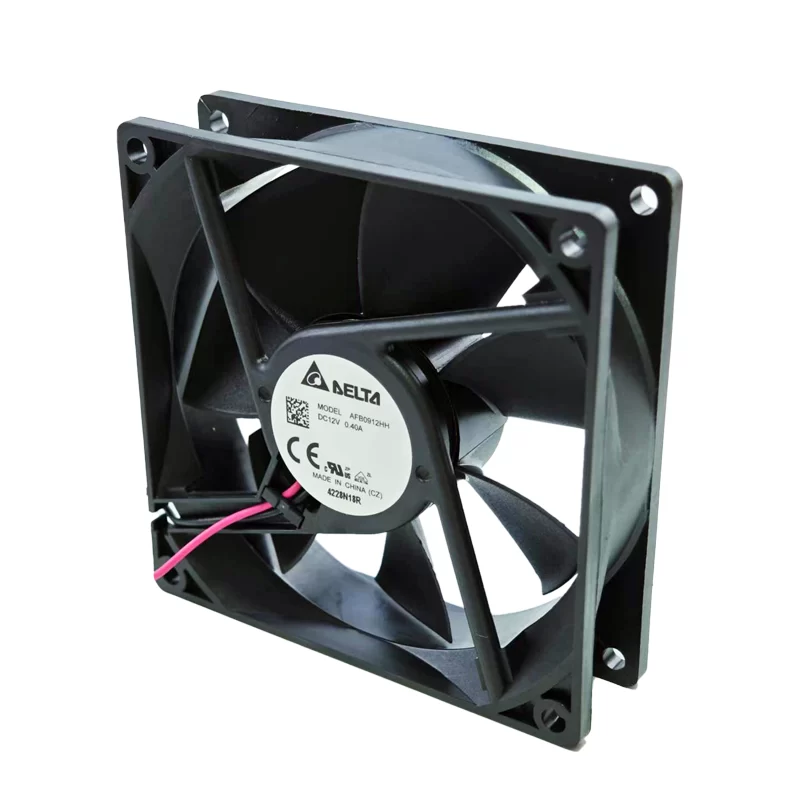

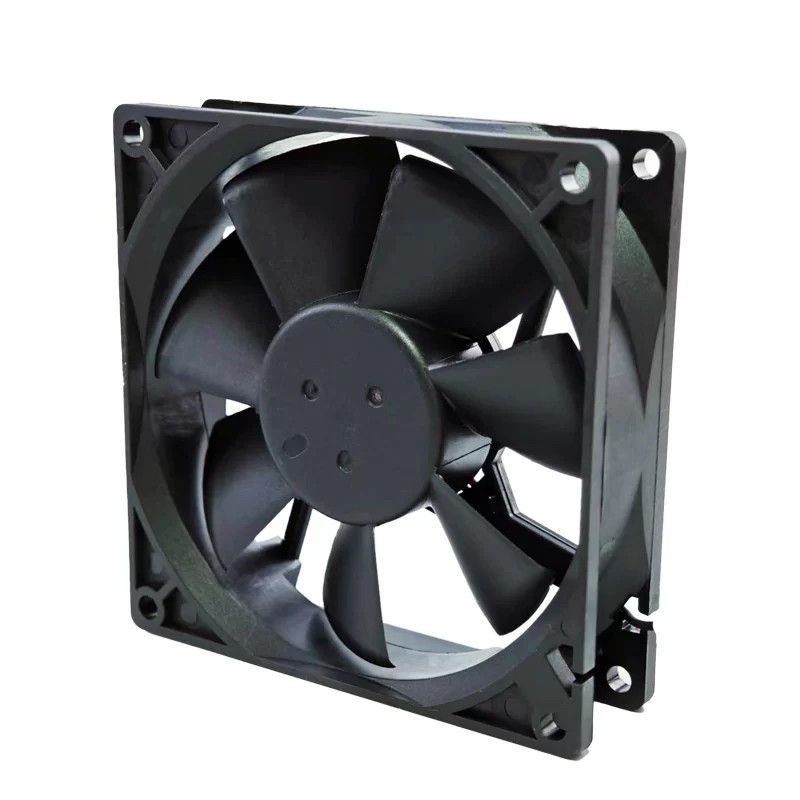

AFB0912HH Delta 12V 0.4A 9225 cooling fan
Model Number: AFB0912HH
Manufacturer: Delta Electronics
Series: AFB
Fan Type: DC Brushless Axial Fan

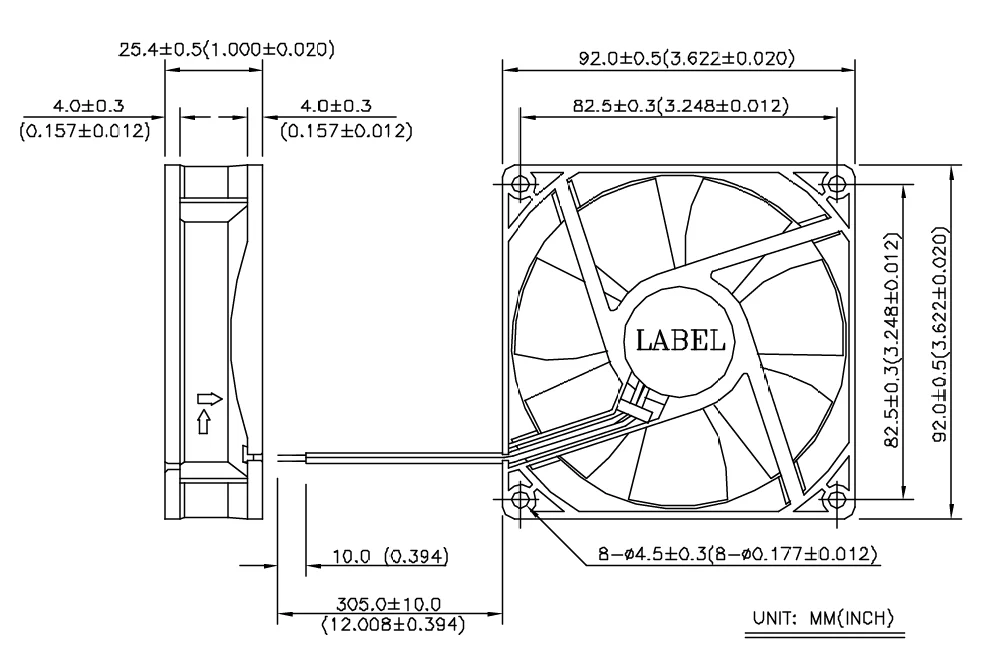

Dimensions L x H x W: 92 mm x 92 mm x 25.4 mm

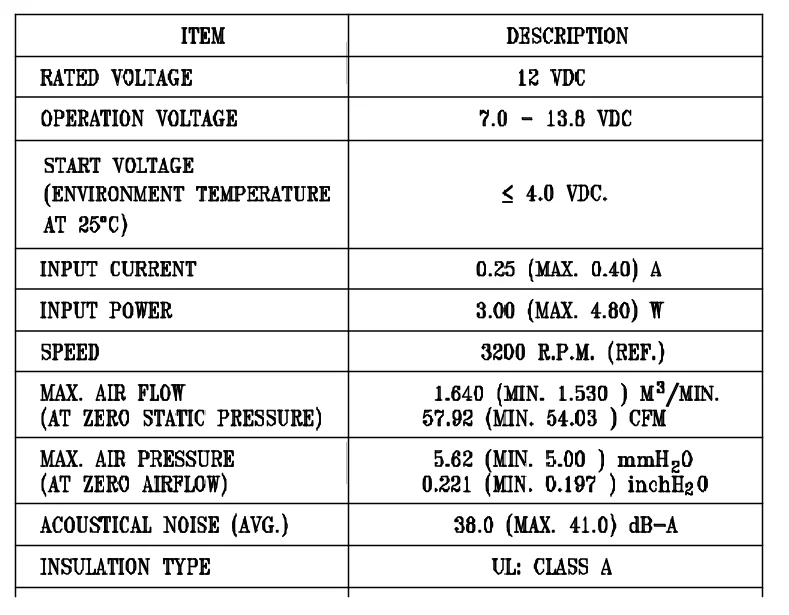

Rated Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.40 A
Input Power: 3.0 W to 4.8 W
Wiring: 2 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 3200 RPM to 4500 RPM
Maximum Airflow: 57.9 CFM to 67.92 CFM
Maximum Static Pressure: 0.221 in H2O
Noise Level: 38 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Locked Rotor Protection
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: 99 g to 115 g
Safety Approvals: CE, CSA, UL, VDE
The Delta AFB0912HH is a high-performance 92x92x25.4mm DC axial fan from Delta’s AFB series. Operating on 12VDC, it consumes 3.0W to 4.8W of power with a current draw from 0.40A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a substantial airflow of 57.9 CFM to 67.92 CFM at speeds ranging from 3200 RPM to 4500 RPM, with a moderate noise level of 38 dBA. The fan includes locked rotor protection for enhanced reliability. This fan is a common and effective choice for cooling various electronic enclosures, desktop PCs, small server cases, power supplies, and other applications requiring robust and consistent cooling.
