Description

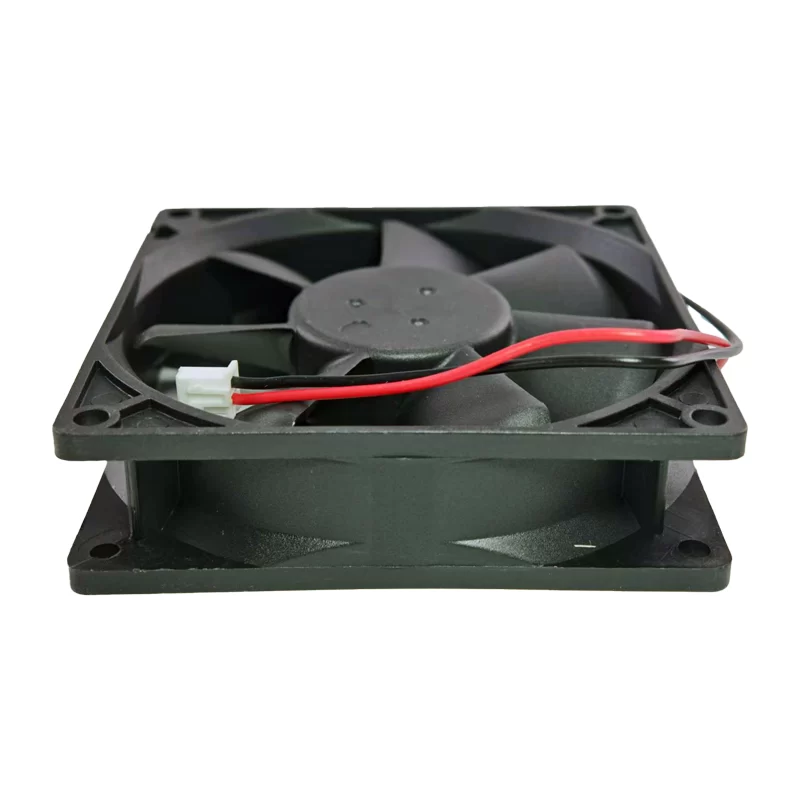

The Delta AFB0924VH is a DC Axial Fan with dimensions of 92x92x25mm, designed for 24VDC operation within a voltage range of 14 to 27.6V. It draws 0.40A (9.6W), spins at 3800RPM, and delivers an airflow of 115.2m³/h (67.8CFM) with a static pressure of 75.2Pa (0.302IN H2O), while producing a noise level of 45dB(A). This fan features durable ball bearings, a frame and impeller made of UL94V-0 rated plastic, and includes motor protection against locked rotor and reverse polarity. It comes with a 2-wire termination. It is widely used in servers, networking equipment, industrial control systems, and other high-performance cooling applications.
AFB0924VH Fan Parameters
Model: AFB0924VH
Manufacturer: Delta Electronics
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 14 .. 27.6 V DC
Rated Current: 0.40 A
Power Consumption: 9.6 W
Speed: 3800 RPM
Airflow: 115.2 m³/h (67.8 CFM)
Static Pressure: 75.2 Pa (0.302 IN H2O)
Noise Level: 45 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 70000 h at 40°C
Termination: 2-wire leads
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Approval: UL, CSA, TUV, CE
Application: Servers, networking equipment, industrial control systems, power supplies, and other high-performance cooling applications.
