Description

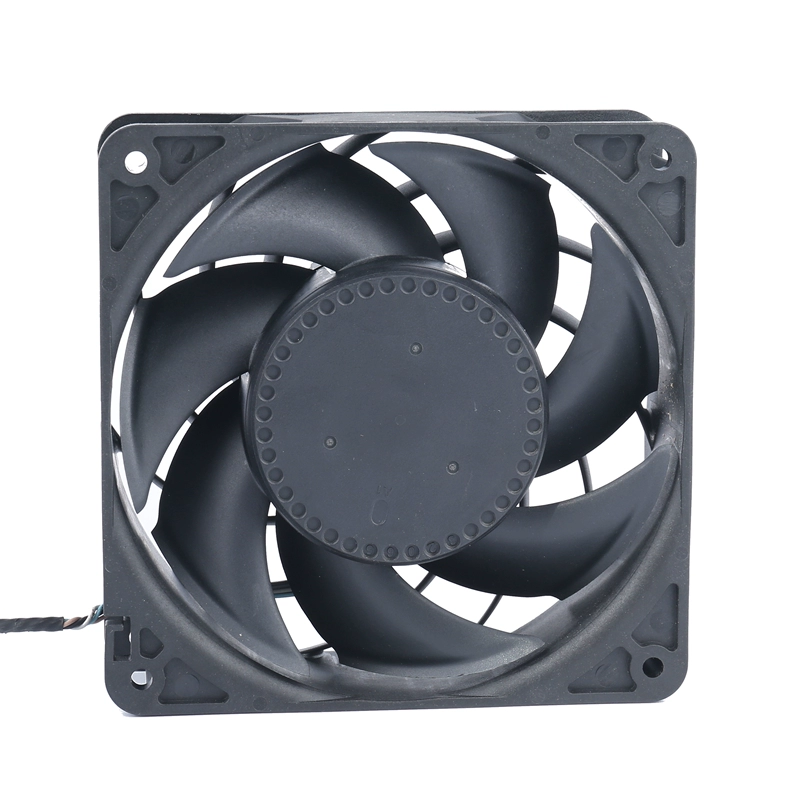

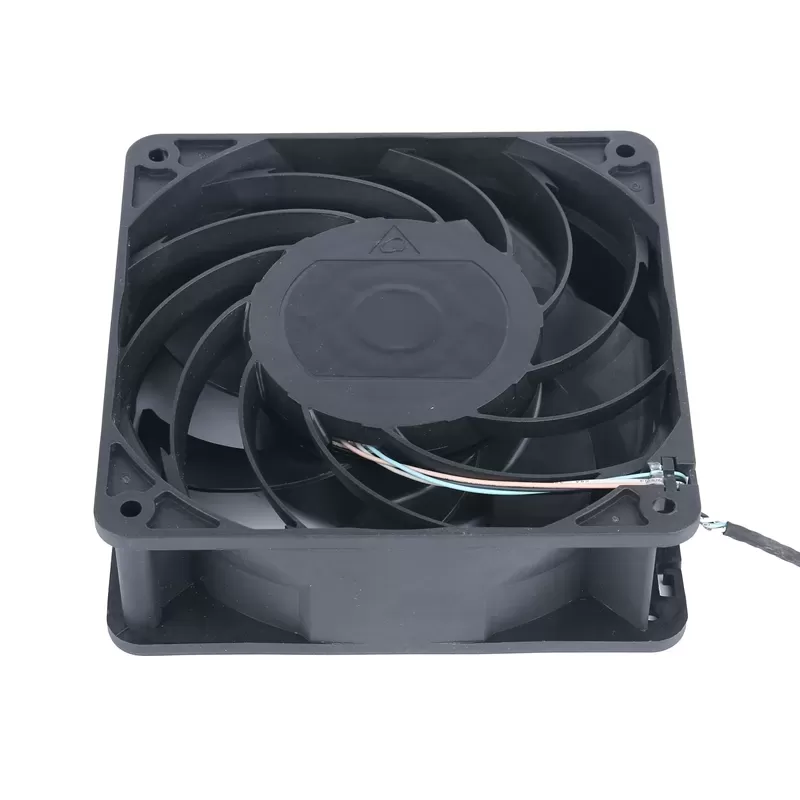

The Delta AFB1212EH-0O is a high-performance DC axial fan with dimensions of 120 x 120 x 25 mm. It operates on 12V DC, drawing 0.70 A of current and consuming 8.0 W of power. This fan runs at a high speed of 4000 RPM, delivering a significant airflow of 148.34 CFM with a static pressure of 15.29 mmH2O. It produces a noise level of 51 dB(A). The fan utilizes a ball bearing for durability and is terminated with four-wire leads which provide power, ground, tachometer signal for speed measurement, and likely PWM speed control input. The fan cable length is 300 MM without terminals. It is constructed from plastic and operates within a temperature range of -10 °C to 60 °C.
AFB1212EH-0O Fan Parameters
Manufacturer: Delta Electronics

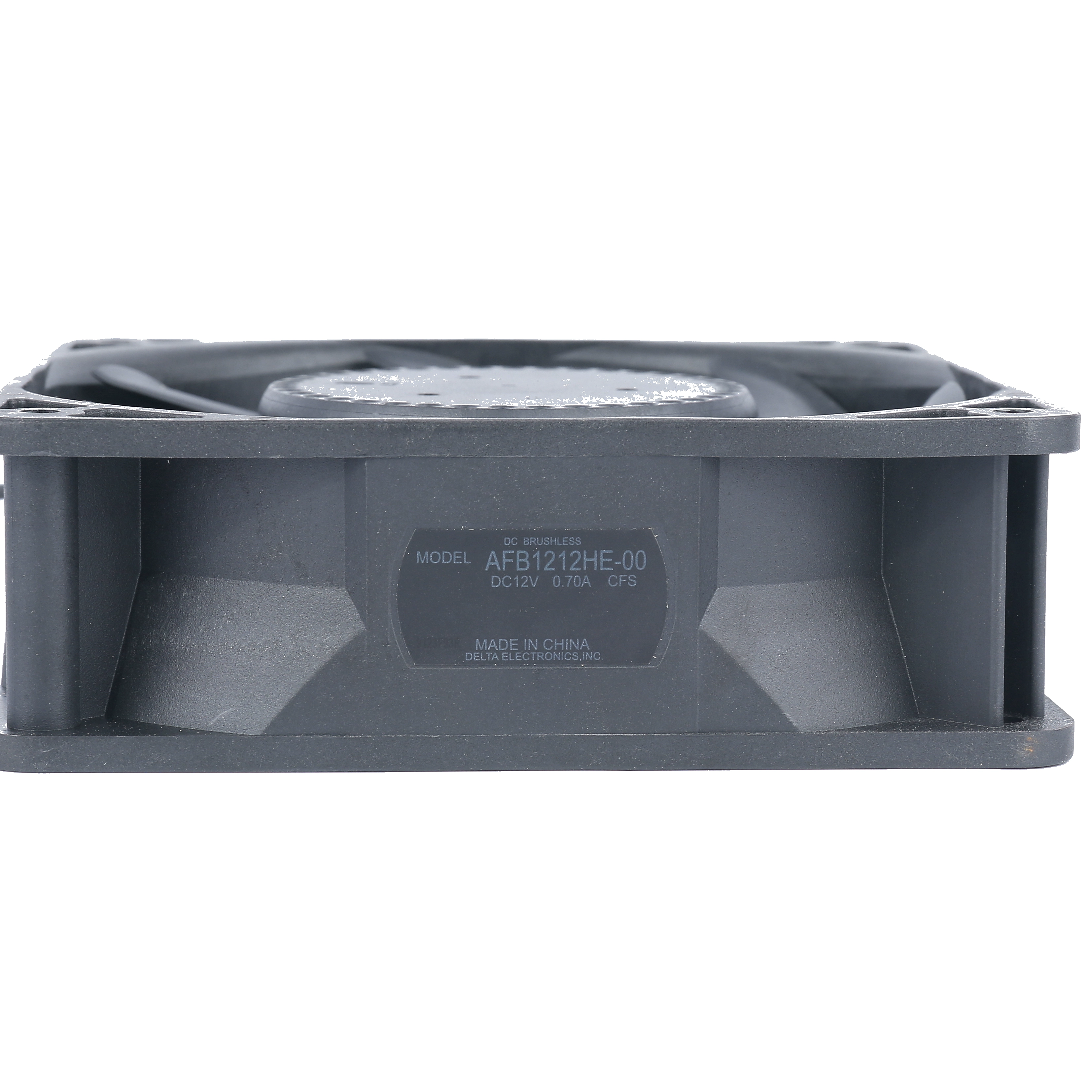

Model: AFB1212EH-0O
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.70 A
Power Consumption: 8.0 W
Airflow: 148.34 CFM
Static Pressure: 15.29 mmH2O
Speed: 4000 RPM
Noise Level: 51 dB(A)
Bearing Type: Ball Bearing
Termination: 4-Wire Leads (includes Tachometer output)
Cable Length: 300 mm (without terminals)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 60 °C
Application
The AFB1212EH-0O fan is designed for applications requiring high airflow and static pressure, such as in projectors, servers, high-performance computing systems, industrial cooling solutions, and ventilation systems where robust cooling is essential.
