Description
Delta AFB1212HHE-4L15 New Original 12V 0.7A 12038 4-wire cooling fan
Model Number: AFB1212HHE-4L15
Manufacturer: Delta Electronics
Series: AFB
Fan Type: DC Brushless Axial Fan

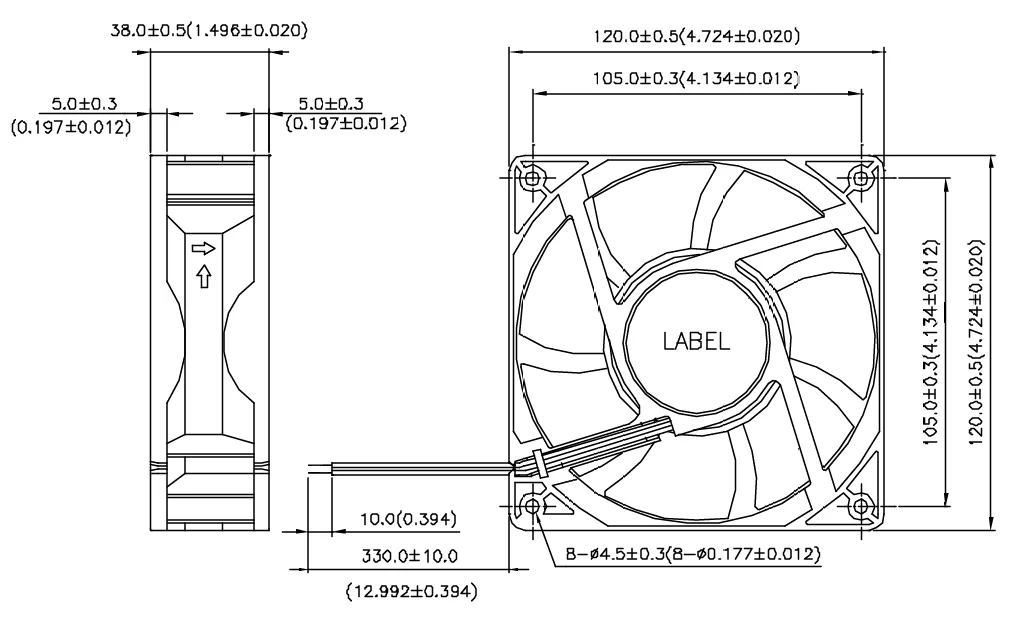

Dimensions L x H x W: 120 mm x 120 mm x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 VDC to 13.2 VDC
Rated Current: 0.4 A
Input Power: 4.8 W
Wiring: 4 Wire Leads
Bearing Type: Dual Ball Bearing
Rotational Speed RPM: 2900 RPM
Maximum Airflow: 120.1 CFM
Maximum Static Pressure: 0.354 in H2O
Noise Level: 44 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Control Functions: PWM Speed Control, Speed Sensor
Protection Functions: Locked Rotor Protection, Over Current Protection, Polarity Protection
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: Approximately 257 g
Safety Approvals: CE, CSA, UL, VDE
The Delta AFB1212HHE-4L15 is a high-performance 120x120x38mm DC axial fan from Delta’s AFB series, engineered for efficient and controllable cooling. Operating on 12VDC, it consumes 4.8W of power with a current draw of 0.4A. This fan features durable dual ball bearings for extended reliability and a long operational life of 70,000 hours at 40°C. It delivers a substantial airflow of 120.1 CFM at 2900 RPM, generating a good static pressure of 0.354 in H2O, with a moderate noise level of 44 dBA.
Its 4-wire configuration is a key feature, providing both PWM speed control for precise fan speed adjustment based on workload and a speed sensor for real-time monitoring of fan operation. The fan also includes robust locked rotor protection, over current protection, and polarity protection, ensuring enhanced system reliability and safety.
This fan is an excellent choice for cooling applications in servers, data centers, high-performance workstations, power supplies, and industrial equipment where effective thermal management with intelligent control and comprehensive protection features are paramount.
