Description

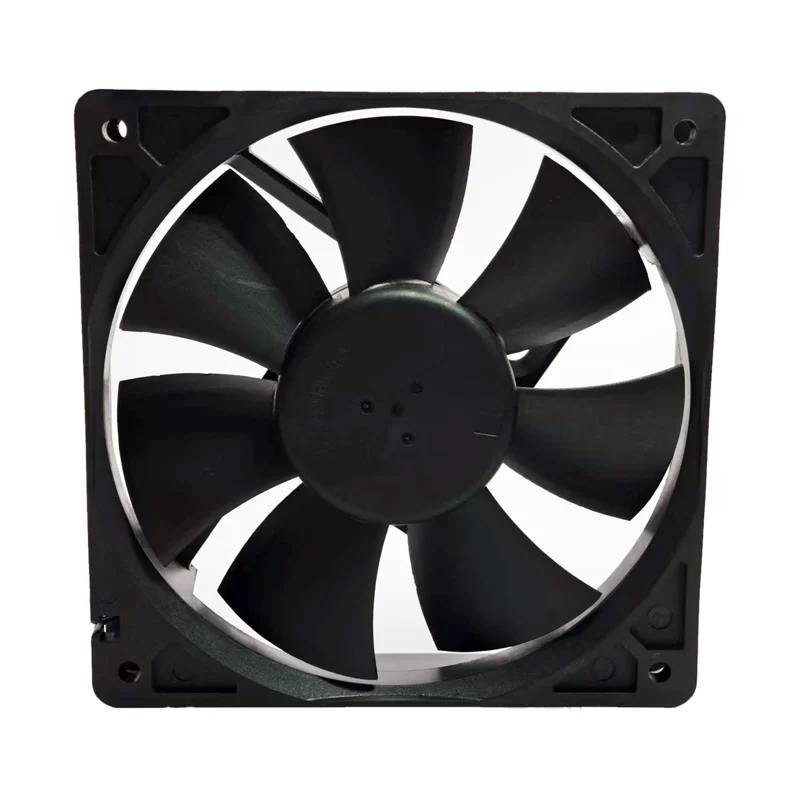

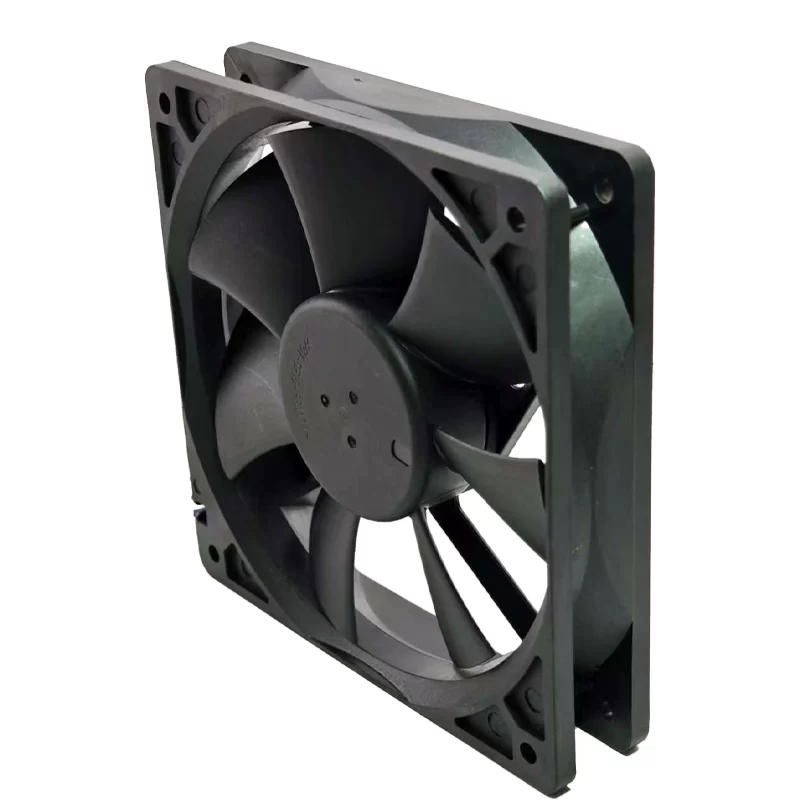

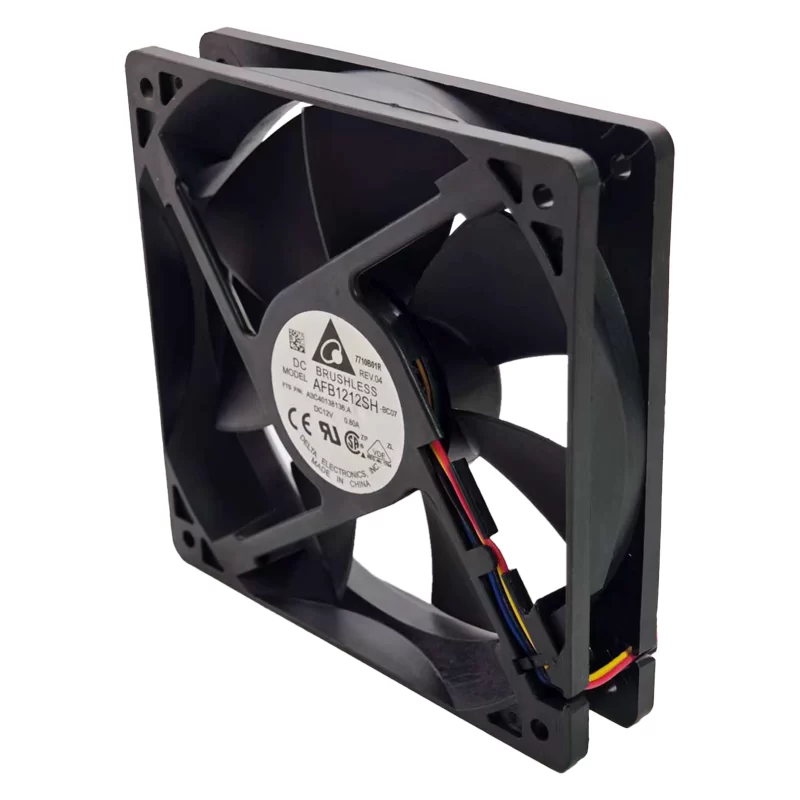

The Delta AFB1212SH-BC07 is a powerful 12V DC axial cooling fan primarily designed for specific OEM applications, such as server systems. Measuring 120mm x 120mm x 25.4mm, this fan from Delta Electronics is engineered for robust thermal management. It operates at a rated voltage of 12V DC (operating range 7.0V to 13.8V DC), drawing 0.80A of current for a power consumption of 9.6W. It achieves a rotational speed of 2900 RPM, delivering an airflow of 113 CFM. Its noise level is 43.5 dBA. Featuring durable double ball bearings and a lifespan of 70,000 hours at 40°C, it comes equipped with 4-wire leads for power, ground, PWM speed control, and tachometer output. It operates in temperatures from -10°C to +60°C.
Model Number: AFB1212SH-BC07
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan (High-Performance)
Dimensions: 120mm x 120mm x 25.4mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.80A
Rated Power: 9.6W
Speed: 2900 RPM
Airflow: 113 CFM (3.203 m³/min)
Static Pressure: Not specified
Noise Level: 43.5 dBA
Connector: 4-Wire Leads
Bearing Type: Double Ball Bearing
Life Expectancy: 70,000 Hours @ 40°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +60°C
Weight: 198g
Features: PWM Control, Tachometer Output (Speed Sensor), Locked Rotor Protection, Auto Restart, High Air Volume
Approvals/Certifications: UL, CSA, VDE, CE, RoHS Compliant, REACH Compliant
