Description

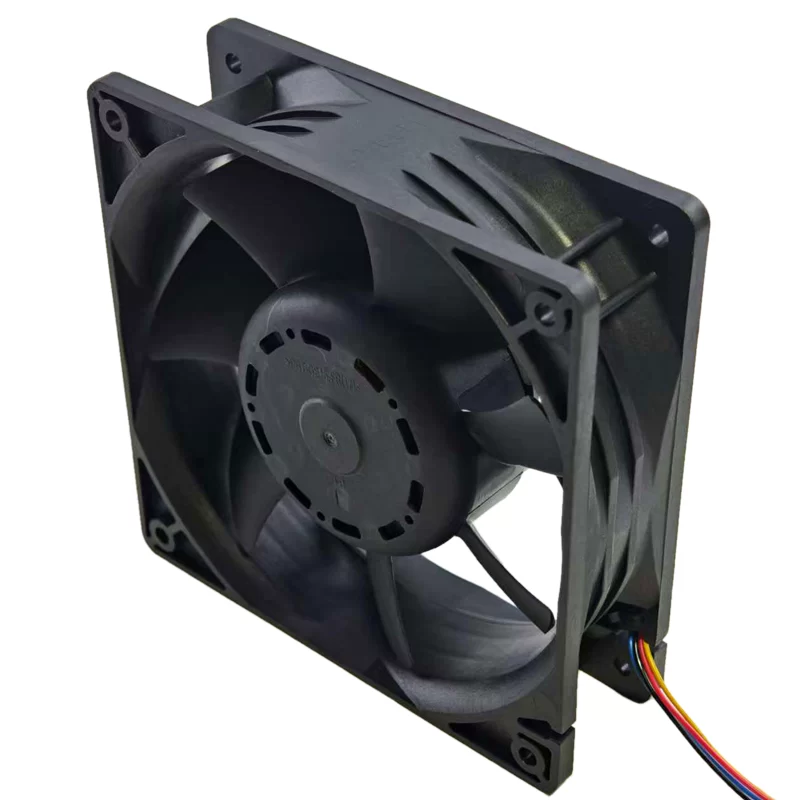

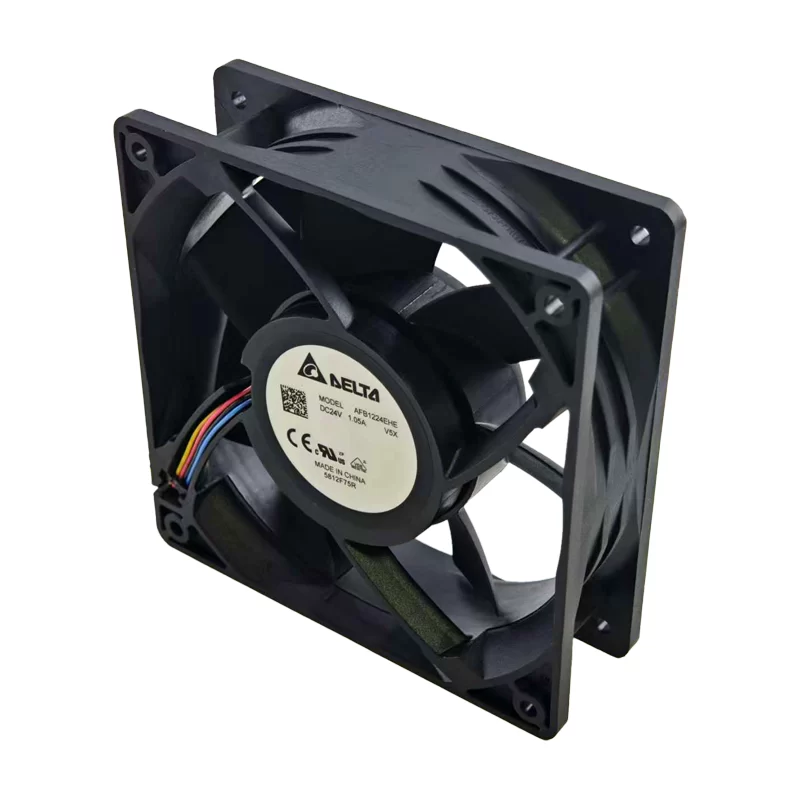

The Delta AFB1224EHE-V5X is a high-performance DC axial fan measuring 120 x 120 x 38 mm and weighing 330 g. It operates on 24V DC, with a label current of 1.05 A and an operational current of 0.85 A, consuming 20.4 W of power. The fan delivers a robust airflow of 212 CFM (360 m³/h) and a high static pressure of 0.844 inch H₂O (210 Pa). It runs at a high speed of 4600 RPM with a noise level of 58.5 dB(A). This fan features four-wire leads for PWM speed control and a tachometer signal, and uses ball bearings for enhanced durability. This high-speed fan is ideal for demanding thermal management in servers and industrial equipment.
AFB1224EHE-V5X Fan Parameters
Manufacturer: Delta Electronics
Model: AFB1224EHE-V5X
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Current Rating: 0.85 A
Label Current: 1.05 A
Power Consumption: 20.4 W
Airflow: 212 CFM (360 m³/h)
Static Pressure: 0.844 inch H₂O (210 Pa)
Speed: 4600 RPM
Noise Level: 58.5 dB(A)
Bearing Type: Ball Bearing
Termination: Four Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Weight: 330 g
Application: The AFB1224EHE-V5X is a high-speed fan designed for extreme cooling in high-performance applications. Its powerful airflow and static pressure are ideal for server racks, data centers, industrial control systems, and high-density electronic enclosures where significant heat dissipation is required.
