AG04012LB157300 ADDA 12V DC Axial Fan

Description

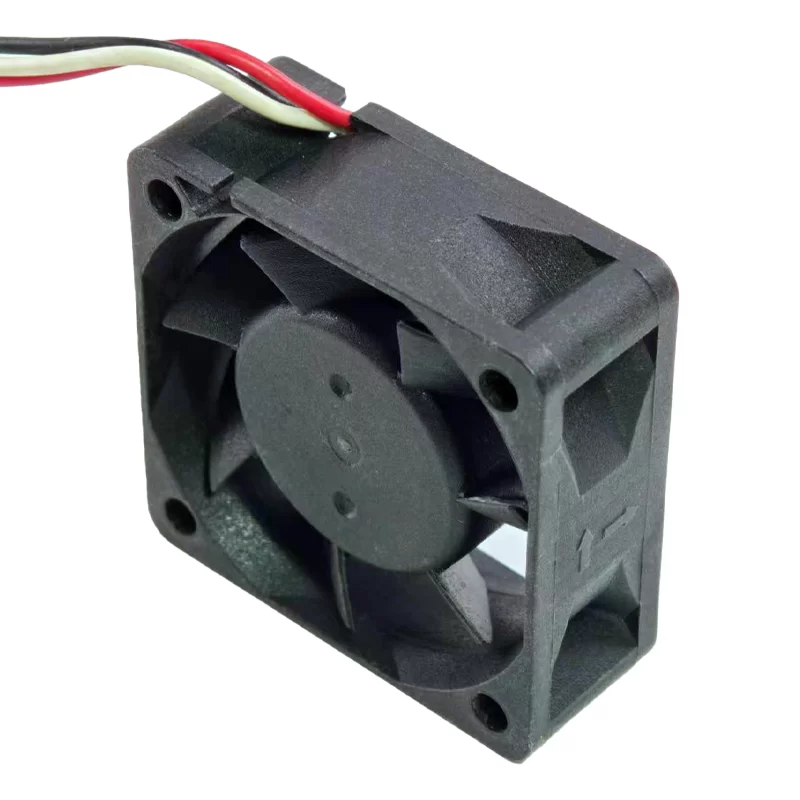

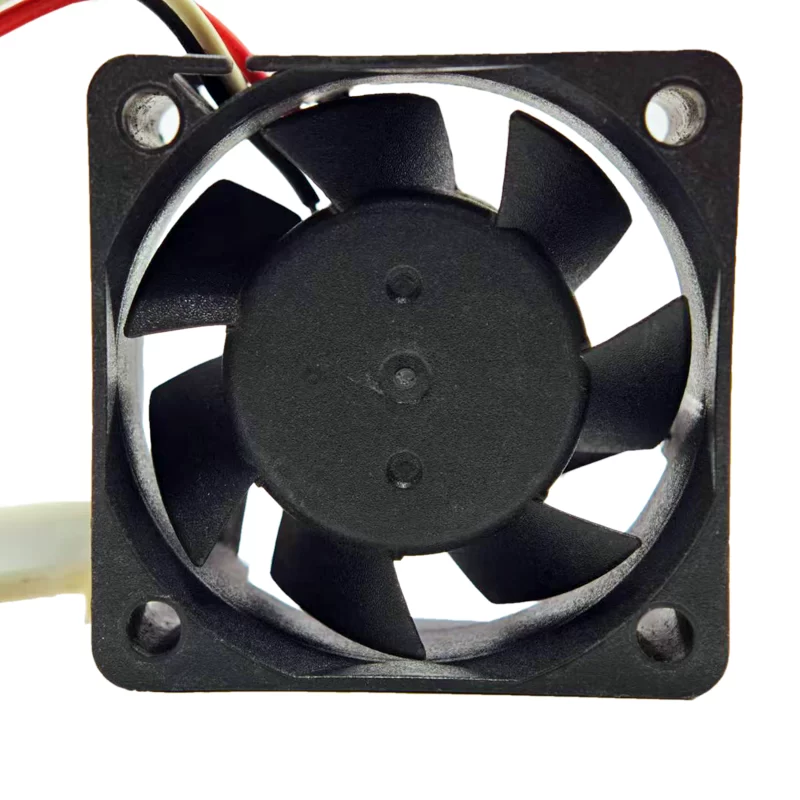

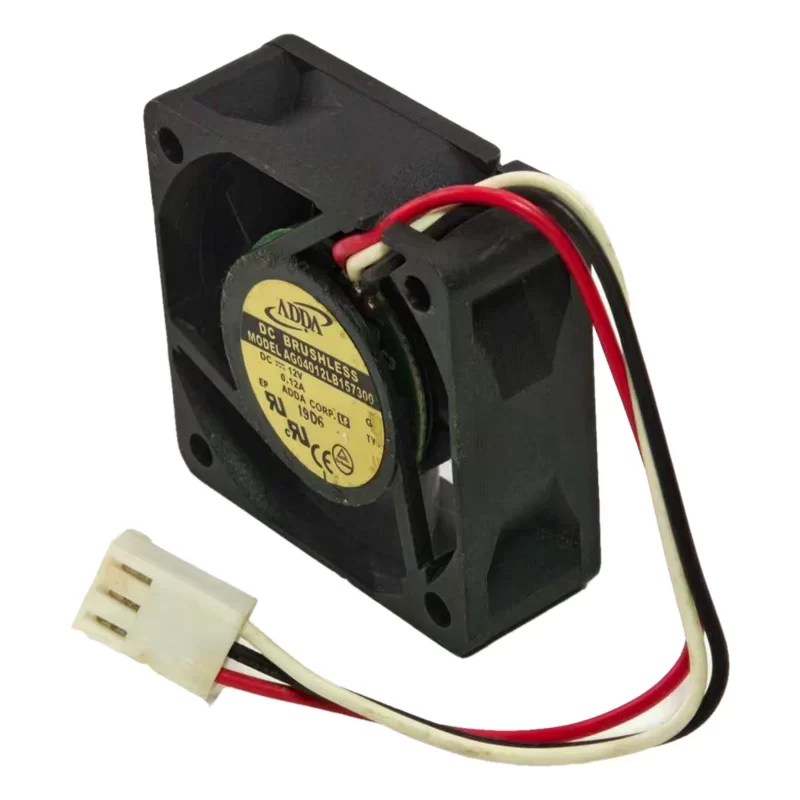

The ADDA AG04012LB157300 is a high-performance DC Axial Fan with dimensions of 40×40×15 mm. Operating at 12 V, this model has a revised Rated Current of 0.12 A, resulting in a Power Consumption of 1.44 W. It delivers an increased Airflow of 20.37 m3/h (11.99 CFM) and Static Pressure of 89.4 Pa (0.352 inAq) at a Nominal Speed of 9,000 RPM. It features a Ball Bearing system, seven blades, and a 3-Wire termination for Frequency Generator (FG) signal output.

AG04012LB157300 Fan Parameters
Model: AG04012LB157300
Manufacturer: ADDA
Type: DC FG Axial Fan
Dimensions: 40×40×15 mm
Operating Voltage: 12 V
Rated Current: 0.12 A
Power Consumption: 1.44 W
Nominal Speed: 9,000 RPM
Airflow: 20.37 m3/h (11.99 CFM)
Static Pressure: 89.4 Pa (0.352 inAq)
Noise Level: 39.6 dB(A)
Bearing Type: Ball
Motor Design: Brushless DC Motor
Number of blades: 7
Termination: 3-Wire
Motor Protection: Motor protective circuit
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Available Features: Frequency Generator (FG)

Application
The AG04012LB157300 is primarily used in compact electronic enclosures, small form factor PCs, server power supplies, mini ITX systems, embedded devices, and industrial equipment where space is extremely limited and a reliable cooling fan with moderate airflow capability is required.
