AG06024XB257202 ADDA 24V DC Axial Fan

Description

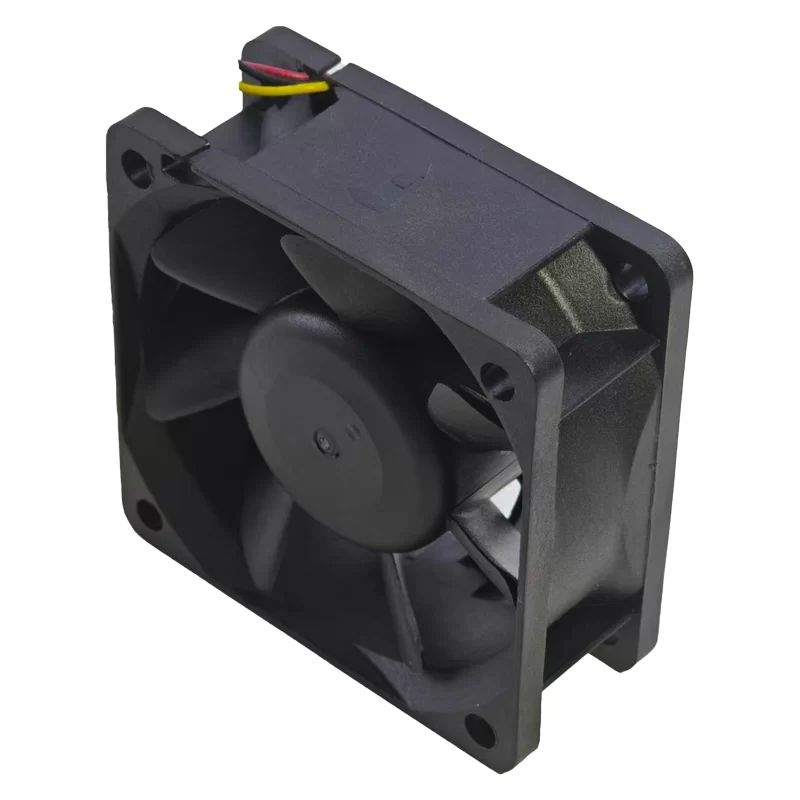

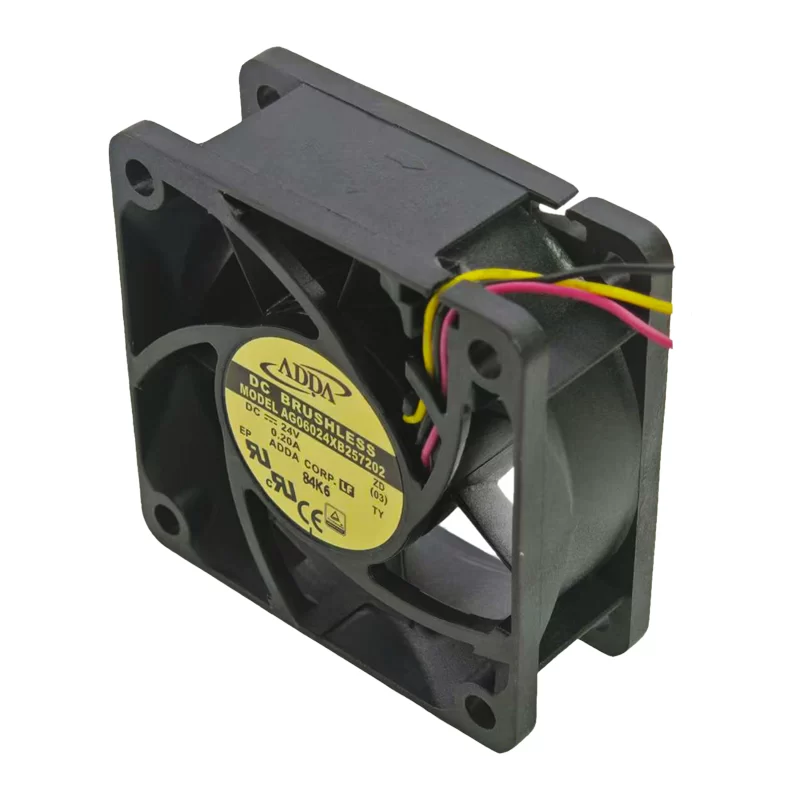

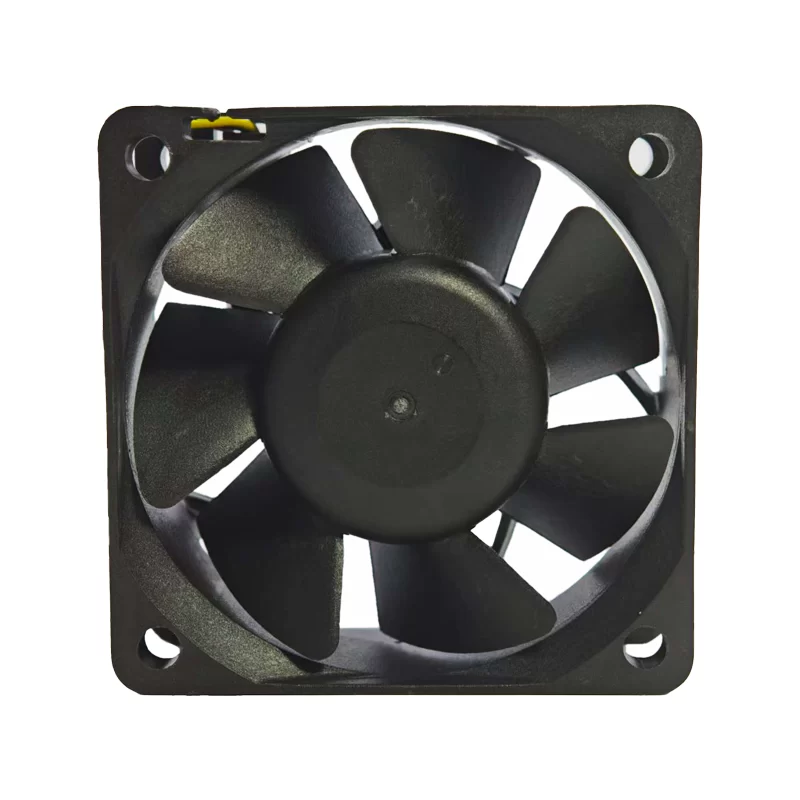

The ADDA AG06024XB257202 is a compact DC axial fan with dimensions of 60x60x25mm. It operates on 24VDC with a current draw of 0.20A. It features a brushless motor, along with a plastic impeller and frame made of UL94V-0 rated material, ensuring durability. With its 3 wire leads, it provides versatile connectivity. Designed to operate within a temperature range of -10 to 70°C, this fan offers a long life expectancy of 70,000 hours, providing reliable cooling performance for various electronic applications.

AG06024XB257202 Fan Parameters
Manufacturer: ADDA
Model: AG06024XB257202
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Current Rating: 0.20 A
Motor Type: Brushless
Termination: 3 Wire Leads
Impeller Material: Plastic UL94V-0
Frame Material: Plastic UL94V-0
Operating Temperature: -10 ~ 70°C
Lifetime @ Temp: 70,000 Hours
Application: This ADDA DC axial fan is suitable for cooling applications in various electronic devices requiring a compact and reliable fan solution.
