AG09212UB257110 ADDA 12V DC Axial Fan

Description

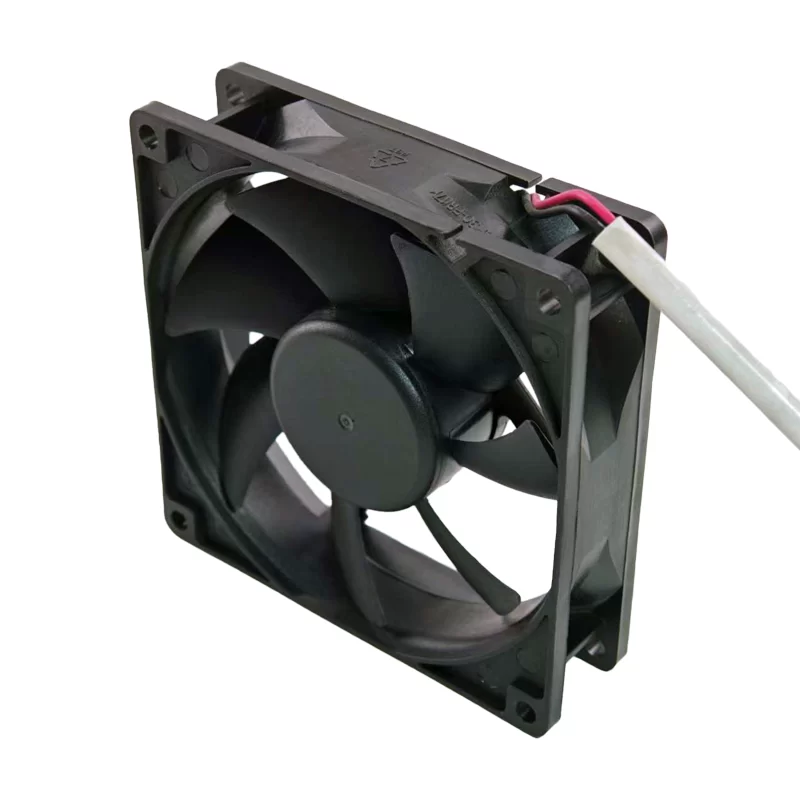

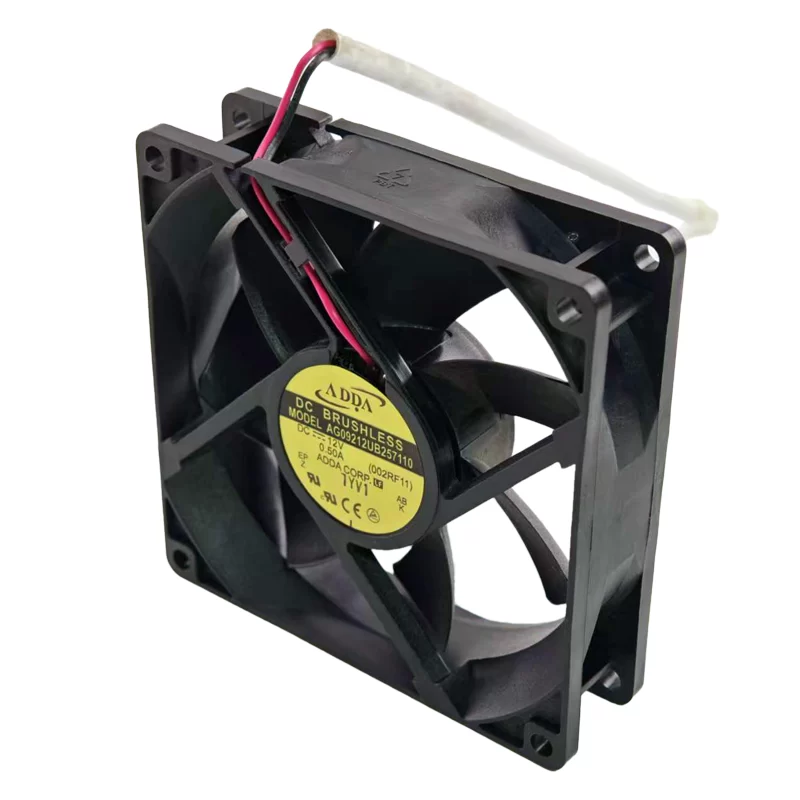

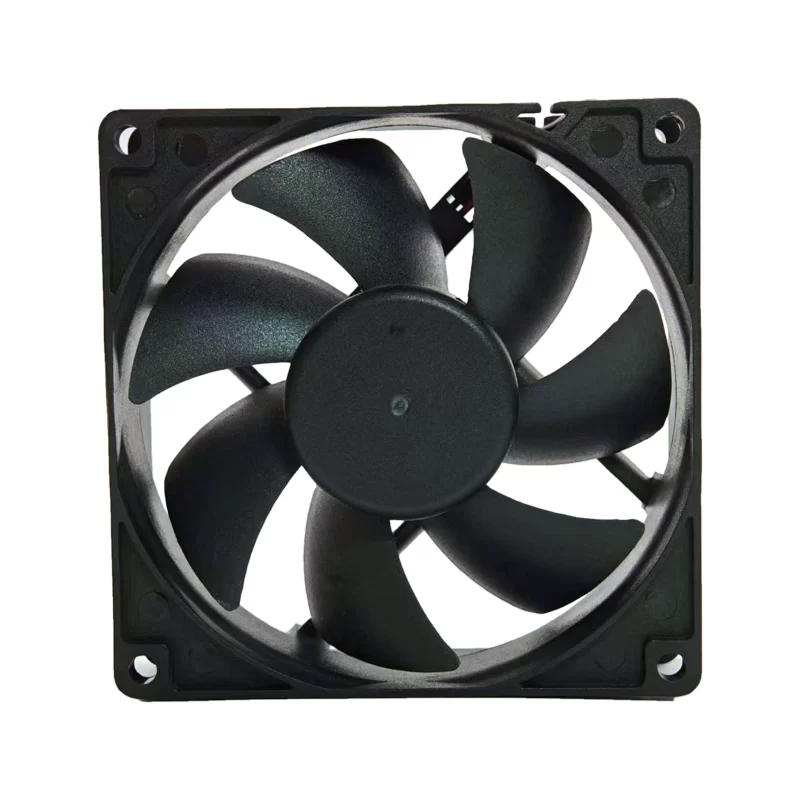

The ADDA AG09212UB257110 is a DC axial fan with dimensions of 92 x 92 x 25 mm. It operates on a rated voltage of 12V DC within a range of 7-13.8V, drawing 0.50 A of current and consuming 6.0 W of power. This fan delivers a powerful airflow of 105 CFM and a static pressure of 0.655 inch-H₂O (163Pa) at a speed of 4500 RPM. It operates at a noise level of 50 dB(A) and features a ball bearing with a service life of up to 70,000 hours at 40°C. The fan housing and impeller are constructed from thermoplastic PBT.

AG09212UB257110 Fan Parameters
Manufacturer: ADDA
Model: AG09212UB257110
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7-13.8 V
Current Rating: 0.50 A
Power Consumption: 6.0 W
Airflow: 105 CFM
Static Pressure: 0.655 inch-H₂O
Speed: 4500 RPM
Noise Level: 50 dB(A)
Weight: 0.125 kg
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Operating Temperature: -10 °C to 60 °C
Service Life: 70000 h at 40 °C
Approval: UL, cUL, TUV, CE

Application
The AG09212UB257110 fan is suitable for a wide range of cooling applications, including high-performance computing, server cooling, and other applications that require efficient ventilation.
