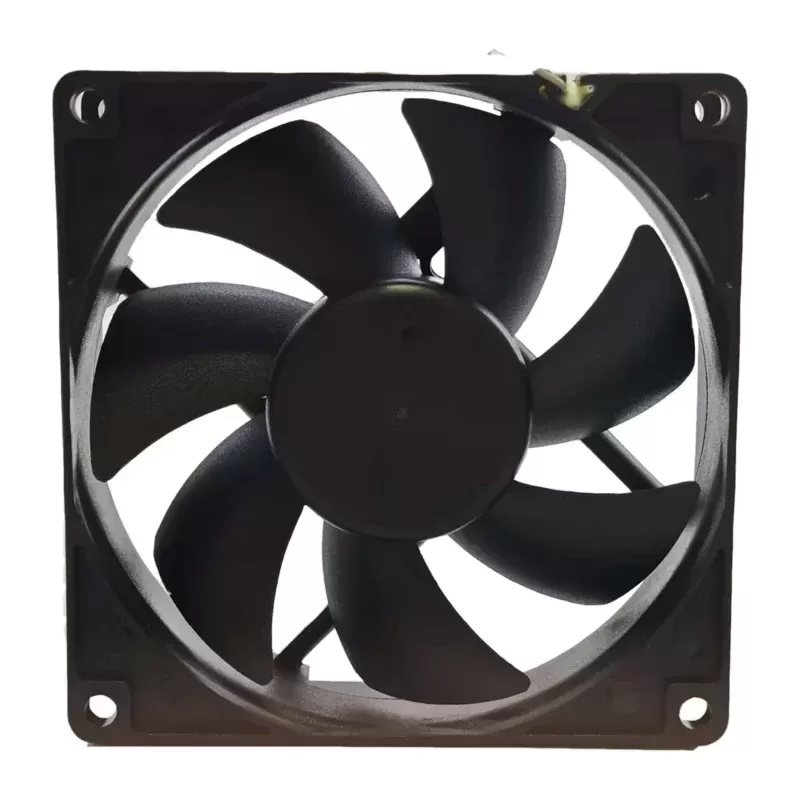

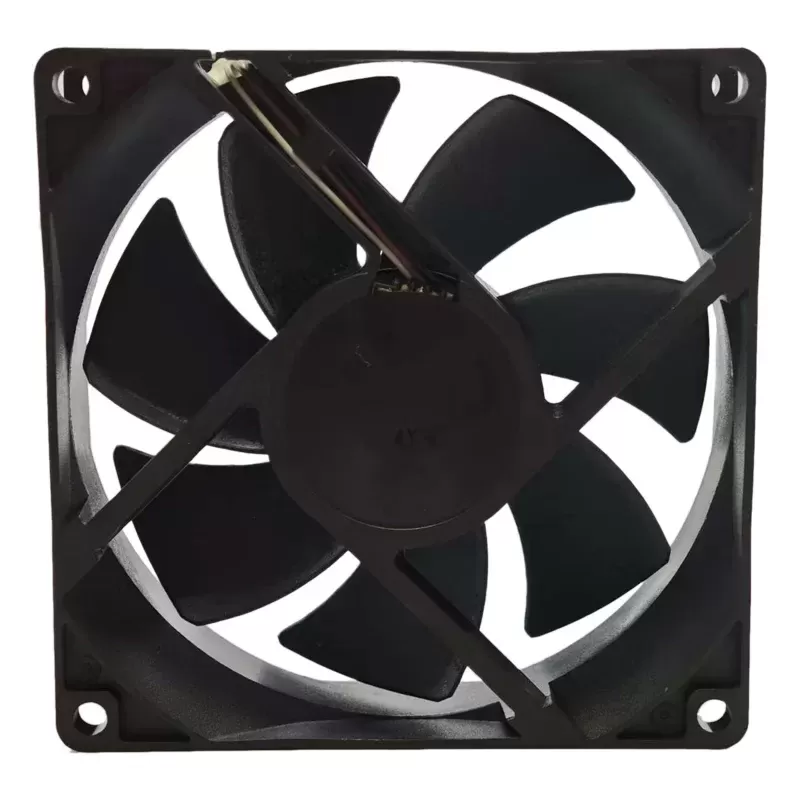

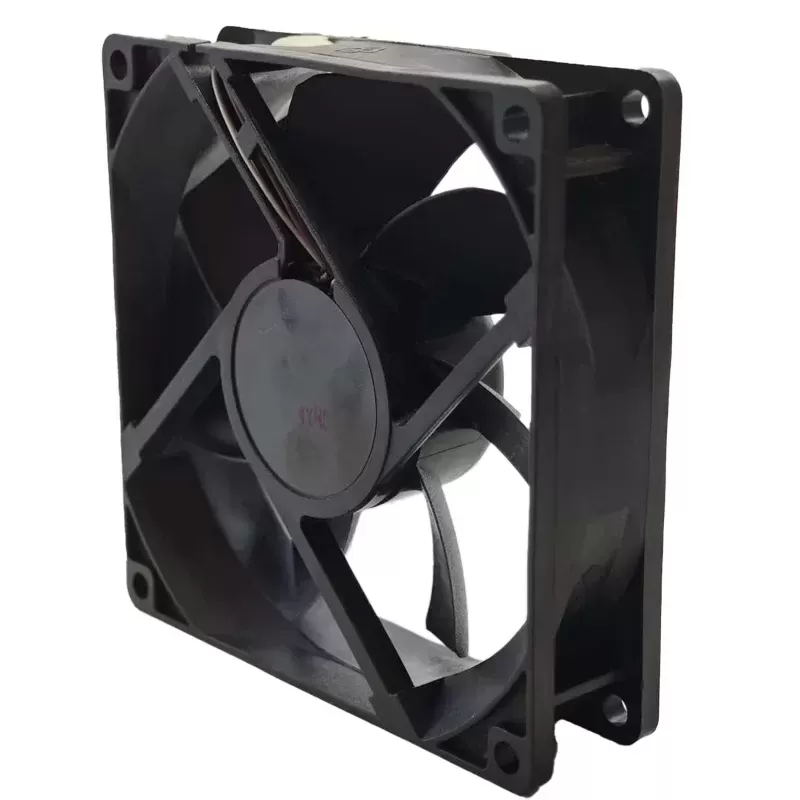

AG09212UB257310 ADDA 12V 0.5A projector cooling fan

Description

The ADDA AG09212UB257310 is a 12V DC axial fan, measuring 92mm x 92mm x 25mm, manufactured by ADDA Corporation. This fan is designed to provide effective airflow for various electronic cooling applications. It features durable ball bearings, contributing to a reliable operational lifespan of 60,000 hours.

Drawing 0.50A of current, it consumes 6.0W of power. This fan operates at a speed of 3600 RPM, delivering 71.003 CFM of airflow and generating 0.445 inches of H2O static pressure. It produces a noise level of 42 dBA. This model comes with 3-wire leads, including a tachometer output for real-time RPM monitoring. The ADDA AG09212UB257310 is a suitable choice for cooling components in power supplies, industrial equipment, computer systems, and other electronic enclosures where efficient and reliable airflow is needed.
Brand new original ADDA AG09212UB257310 9225 12V 0.5A projector cooling fan

Model: AG09212UB257310
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 92mm x 92mm x 25mm
Nominal Voltage: 12V DC
Current: 0.50A
Power Consumption: 6.0W
Speed: 3600 RPM
Airflow: 71.003 CFM
Static Pressure: 0.445 In H2O
Noise Level: 42 dBA
Bearing Type: Ball Bearing
Life Expectancy: 60,000 Hours
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, tachometer output for speed monitoring.
