AG09212UB257311 ADDA 12V DC Axial Fan

Description

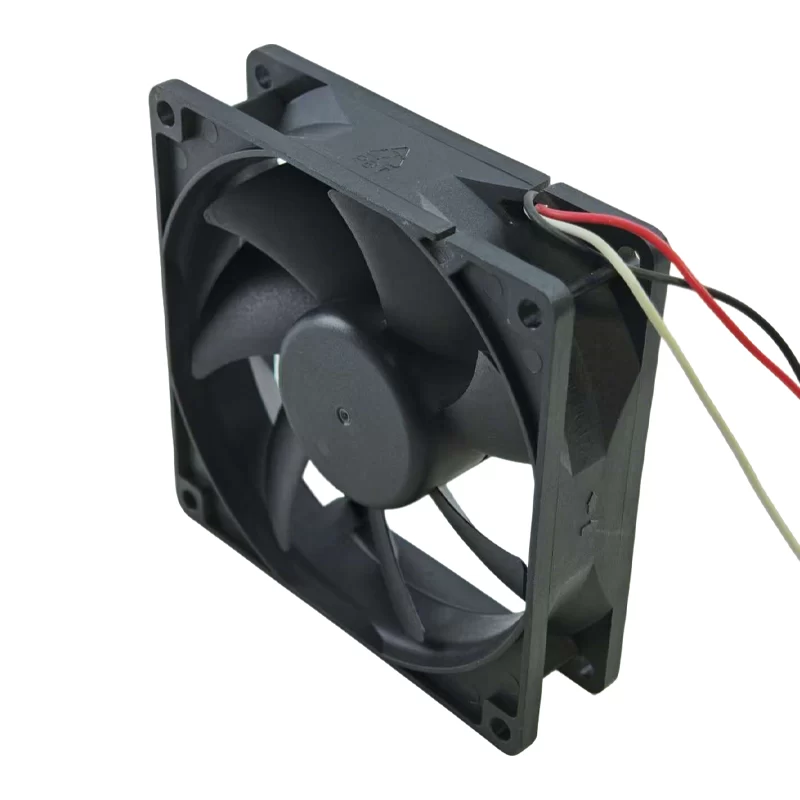

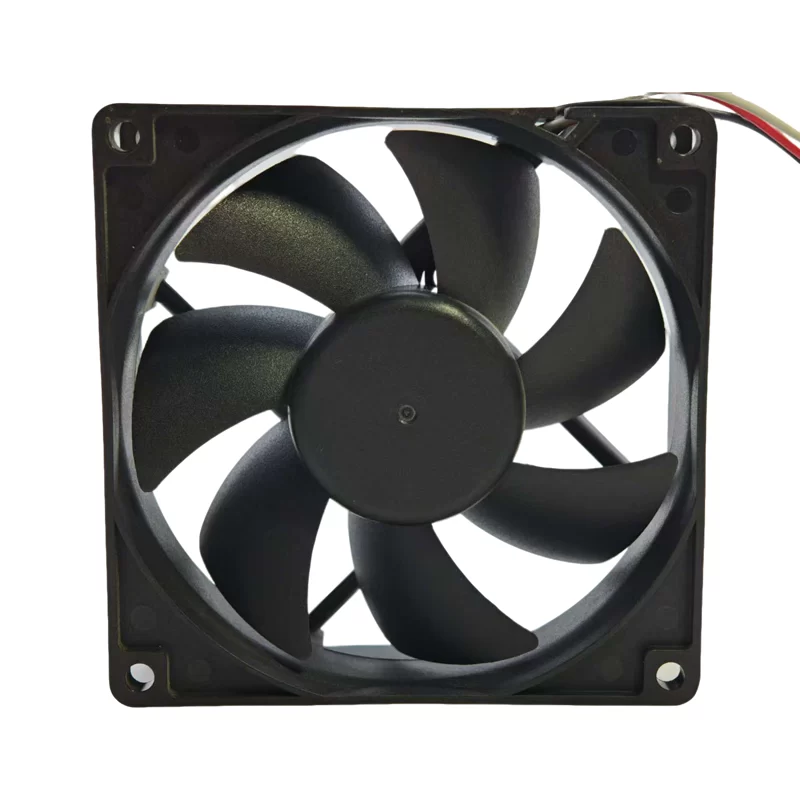

The ADDA AG09212UB257311 is a high-performance DC axial fan measuring 92 x 92 x 25 mm. It operates on 12V DC, drawing 0.50 A of current and consuming 6.0 W of power. The fan delivers a powerful airflow of 101.9 CFM (173 m³/h) and a high static pressure of 0.605 inch H₂O (150 Pa). It runs at a high speed of 5200 RPM with a noise level of 53.0 dB(A). This fan uses a reliable ball bearing system and is terminated with three-wire leads, typically providing a tachometer signal for speed monitoring.

AG09212UB257311 Fan Parameters
Manufacturer: ADDA
Model: AG09212UB257311
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.50 A
Power Consumption: 6.0 W
Airflow: 101.9 CFM (173 m³/h)
Static Pressure: 0.605 inch H₂O (150 Pa)
Speed: 5200 RPM
Noise Level: 53.0 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 60 °C

Application
The AG09212UB257311 is designed for high-performance cooling applications that require exceptional airflow and static pressure. It is commonly used in servers, networking equipment, industrial computers, and high-density electronic systems to dissipate heat efficiently.
