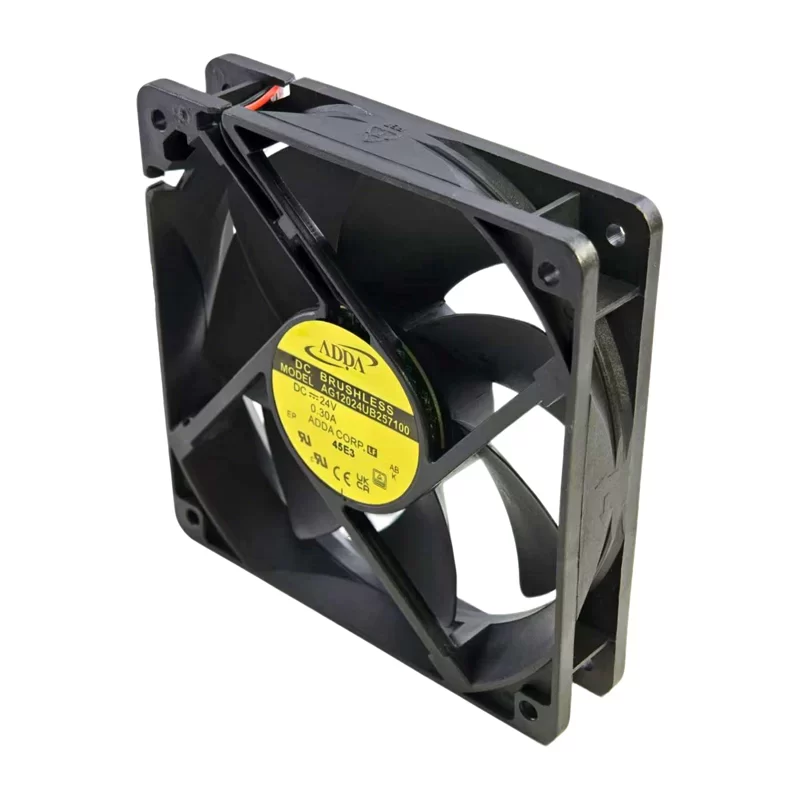

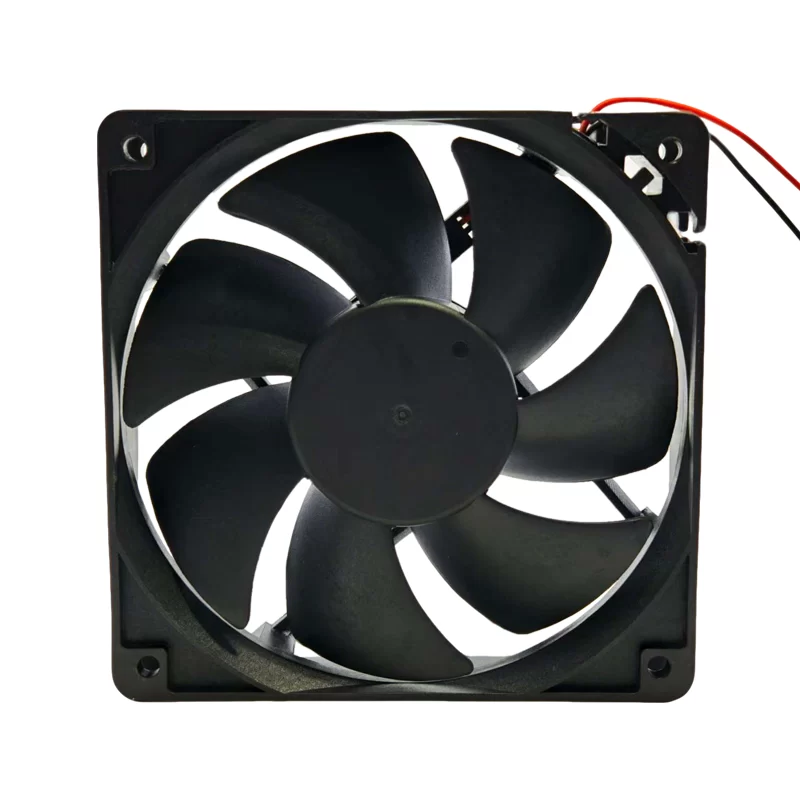

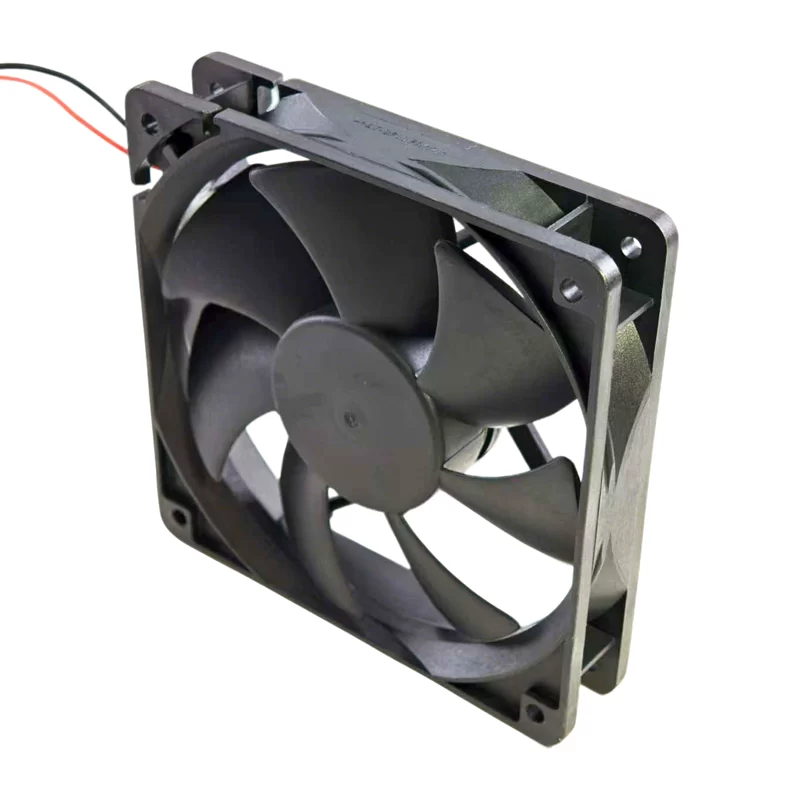

AG12024UB257100 ADDA 24V DC Axial Fan

Description

The ADDA AG12024UB257100 is a DC axial fan with dimensions of 120 x 120 x 25 mm. It operates on 24V DC, drawing 0.30 A of current and consuming 7.2 W of power. The fan provides an airflow of 106.272 CFM (3.007 CMM) and generates a static pressure of 0.392 INAq (9.956 mmAq). It runs at a speed of 3600 RPM with a noise level of 49.10 dB(A). The fan uses ball bearings for enhanced durability and features two-wire leads. This fan is suitable for cooling applications requiring good airflow and moderate static pressure.

AG12024UB257100 Fan Parameters
Manufacturer: ADDA Corporation
Model: AG12024UB257100
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 24V DC
Current Rating: 0.30 A
Power Consumption: 7.2 W
Airflow: 106.272 CFM (3.007 CMM)
Static Pressure: 0.392 INAq (9.956 mmAq)
Speed: 3600 RPM
Noise Level: 49.10 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic (UL94-0)
Impeller Material: Thermoplastic (UL94-0)
Operating Temperature: -10 °C ~ 60 °C
Weight: 185 g
Application: The AG12024UB257100 is a versatile DC axial fan designed for various cooling tasks. Its balanced performance makes it suitable for applications requiring a good volume of airflow and moderate static pressure, such as telecommunication equipment, industrial control systems, and general electronic enclosures. It provides reliable thermal management for components that generate moderate heat.
