Description

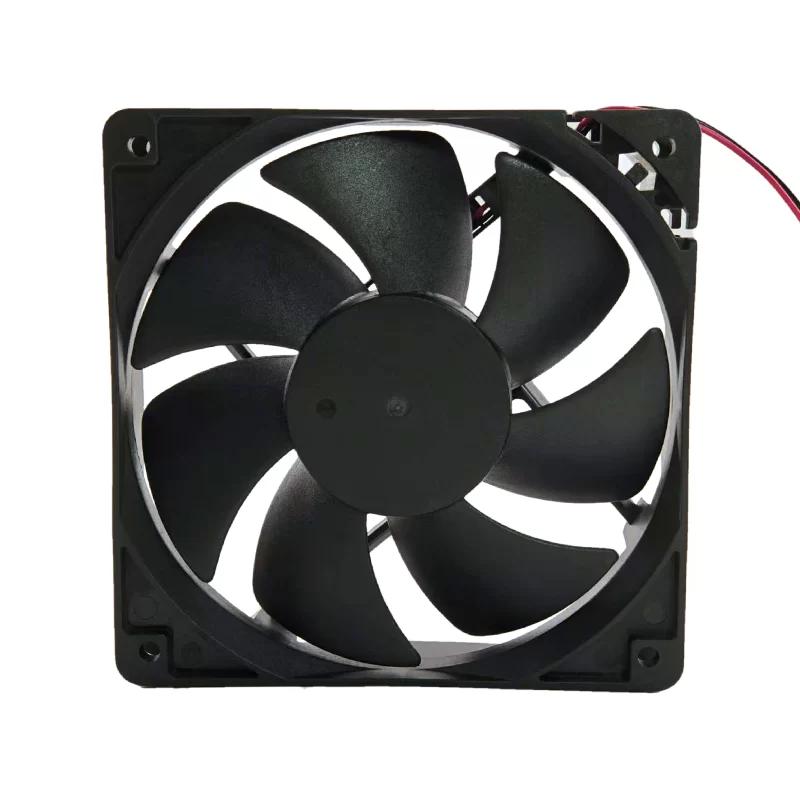

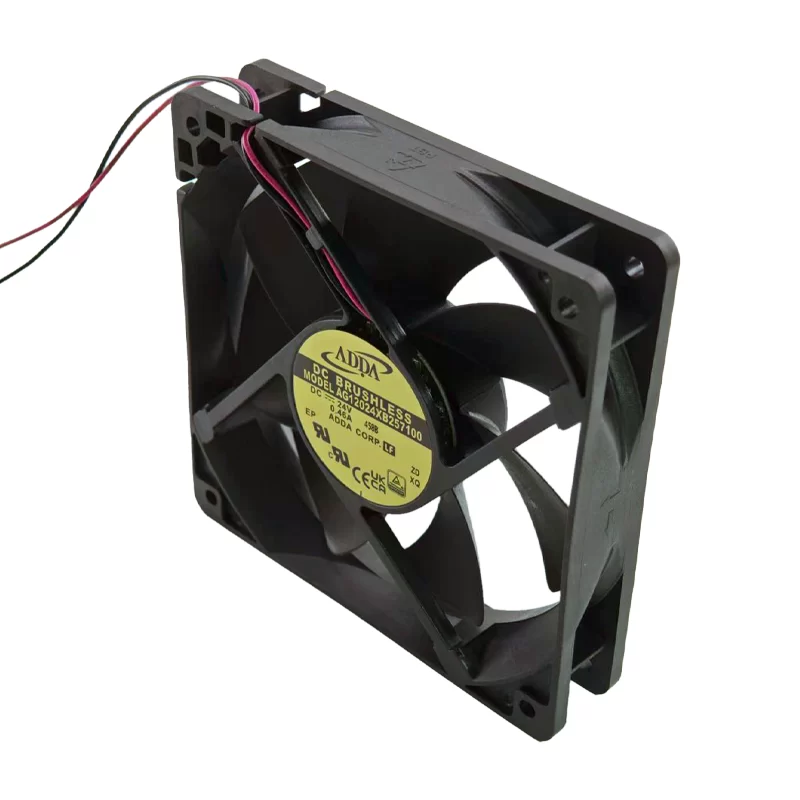

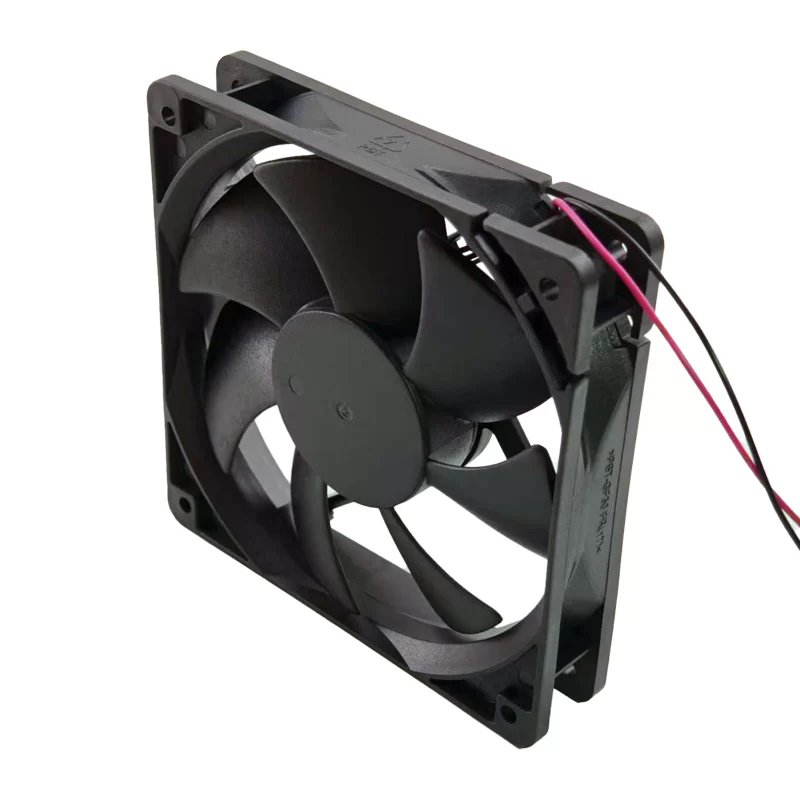

The ADDA AG12024XB257100 is a high-performance DC axial fan, measuring 120 x 120 x 25 mm, built with a durable Plastic (PBT) frame and a 7-blade impeller for reliable operation in demanding industrial environments. It runs on 24 V DC, drawing 0.46 A for a power consumption of 11.04 W. The fan’s high rotational speed of 5100 RPM generates a substantial maximum airflow of 138.3 CFM (235 m3/h). This model uses a double ball bearing system for long operational life and connects via a 2-wire termination.
AG12024XB257100 Fan Parameters
Manufacturer: ADDA
Model: AG12024XB257100
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 24 V DC
Current Rating: 0.46 A
Power Consumption: 11.04 W
Airflow: 138.3 CFM (235 m3/h)
Speed: 5100 RPM
Number of blades: 7
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Bearing Type: Double Ball Bearing
Termination: 2-Wire Leads
Bearing Type: Ball bearing
Application
This fan is optimized for high-power thermal solutions and is frequently used in industrial machinery, power inverters, server racks, and control panel enclosures that require maximum airflow to prevent thermal shutdown.
