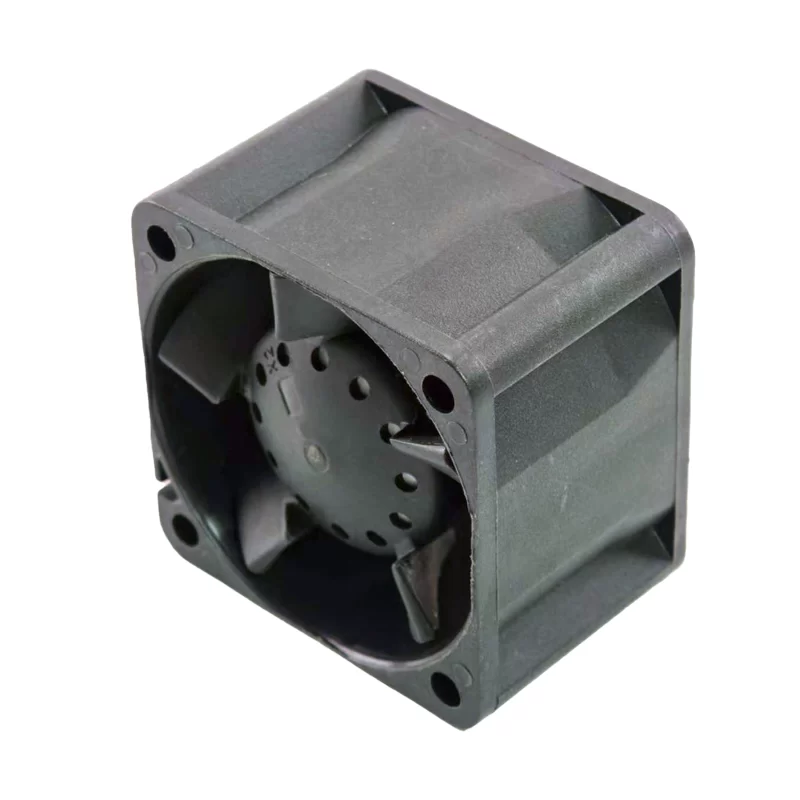

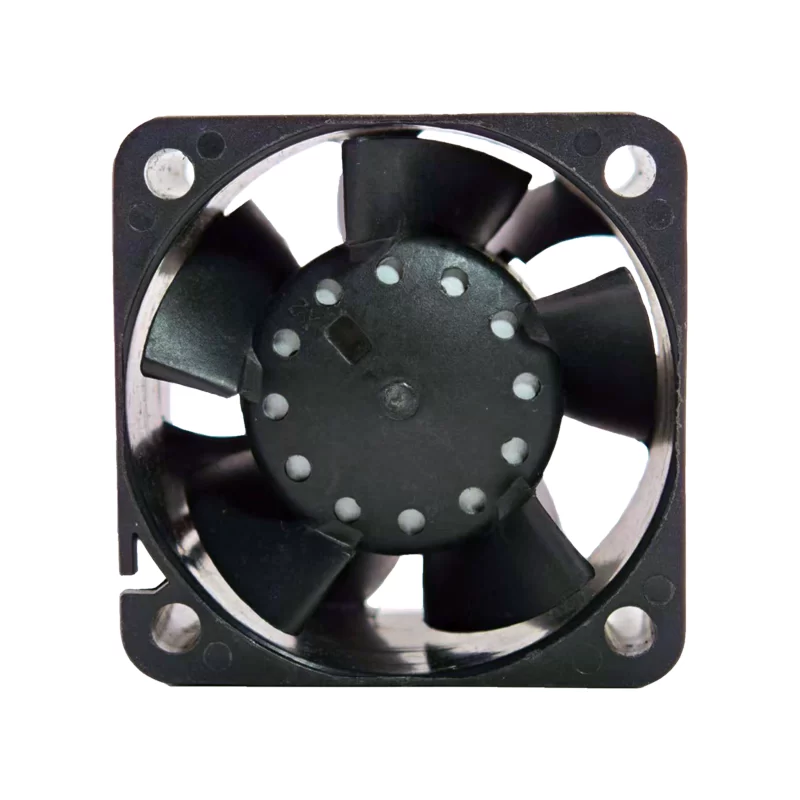

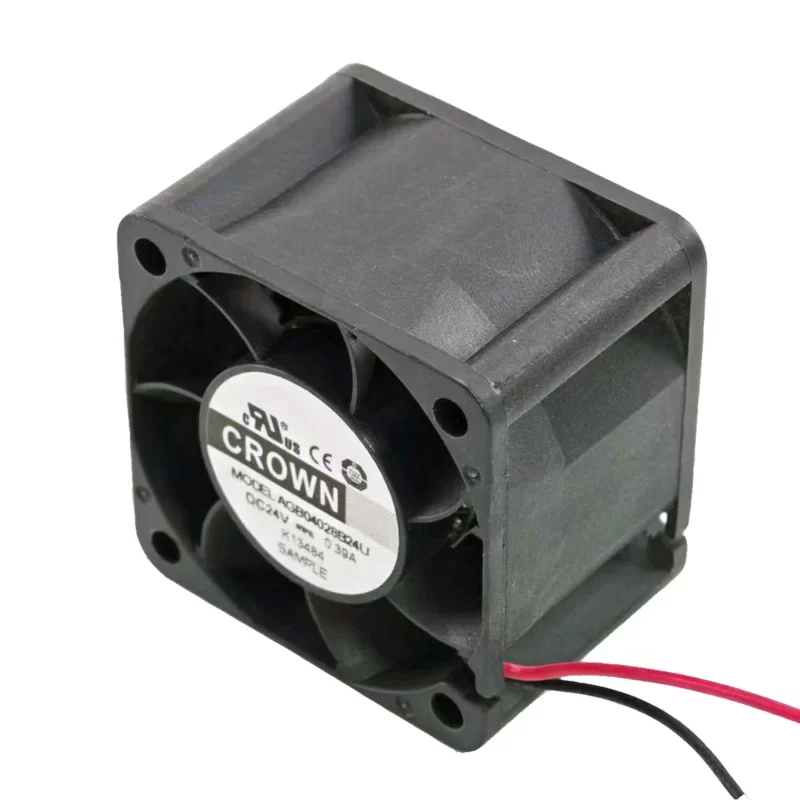

AGB04028B24U CORWN 24V DC Axial Fan

Description

The AGB04028B24U is a high-performance DC Axial Fan manufactured by CORWN, with dimensions of 40×40×28 mm. It operates on a 24 VDC voltage (operating range 14.0−26.4 V) and uses a Ball Bearing system to achieve a high speed of 13,000 RPM. Drawing a rated current of 0.27 A, the fan delivers a powerful airflow of 40.2 m3/h (23.8 CFM) and generates a high static pressure of 330.5 Pa (1.32 inH2O). The fan is designed with 5 blades and maintains a maximum noise level of 54 dB(A).

AGB04028B24U Fan Parameters
Model: AGB04028B24U
Manufacturer: CORWN
Fan Type: DC Axial Fan
Dimensions: 40×40×28 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0−26.4 V
Rated Current: 0.27 A
Rated Speed: 13,000 RPM
Airflow: 40.2 m3/h (23.8 CFM)
Static Pressure: 330.5 Pa (1.32 inH2O)
Noise Level: 54 dB(A)
Weight: 58 g
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Operating Temperature: −10 ∘C to 70 ∘C
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Number of blades: 5
Motor Design: Brushless DC Motor

Application
The AGB04028B24U is used in applications that require moving a large volume of air at high speed, often through moderately restrictive passages. Its performance profile is well-suited for high-density cooling in equipment such as network servers, power supplies, telecom systems, and industrial automation controllers where both high flow and high system resistance need to be managed.
