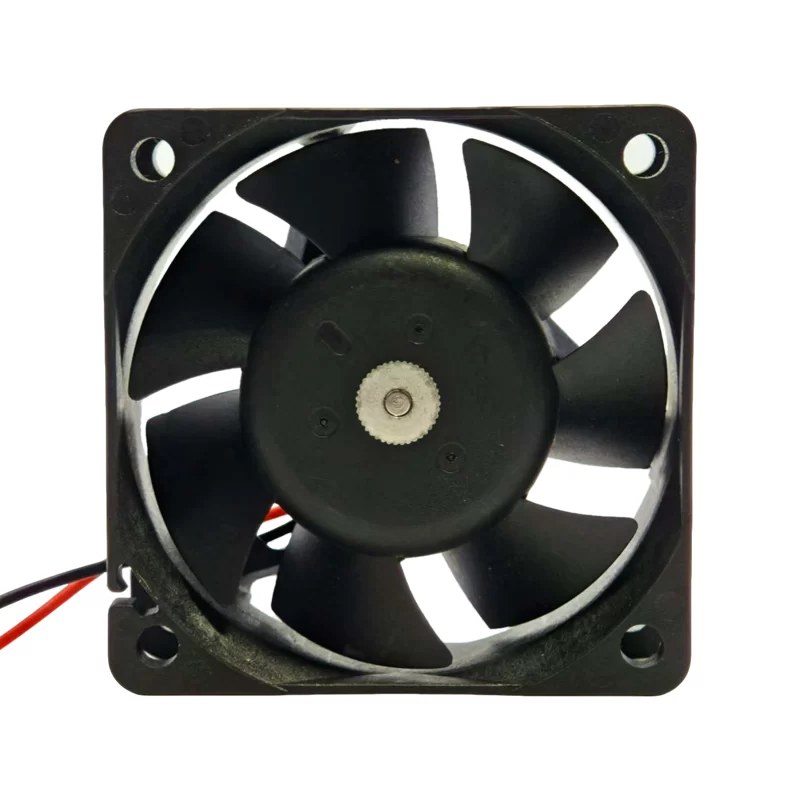

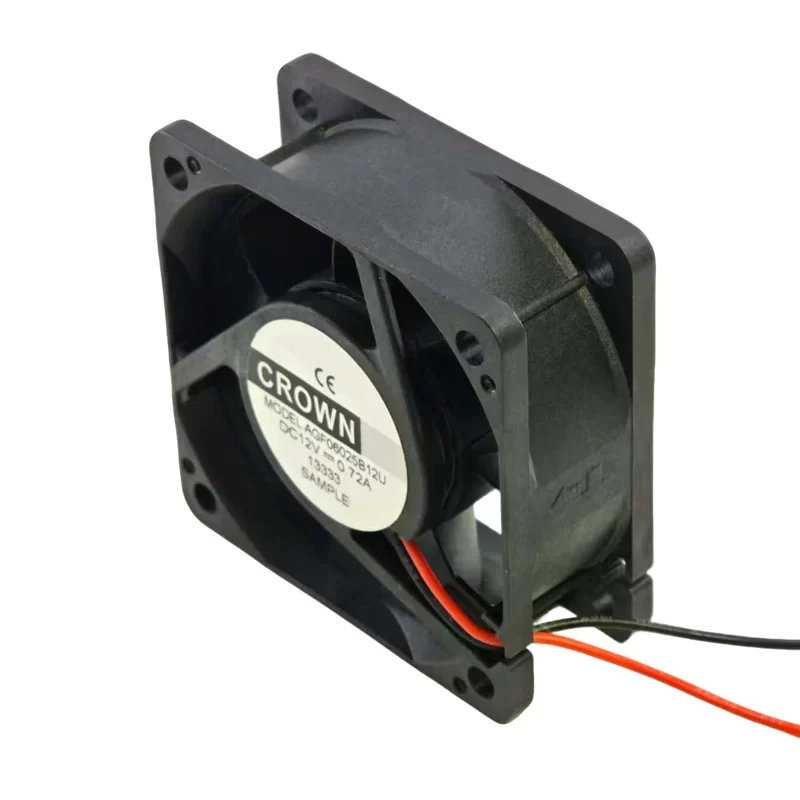

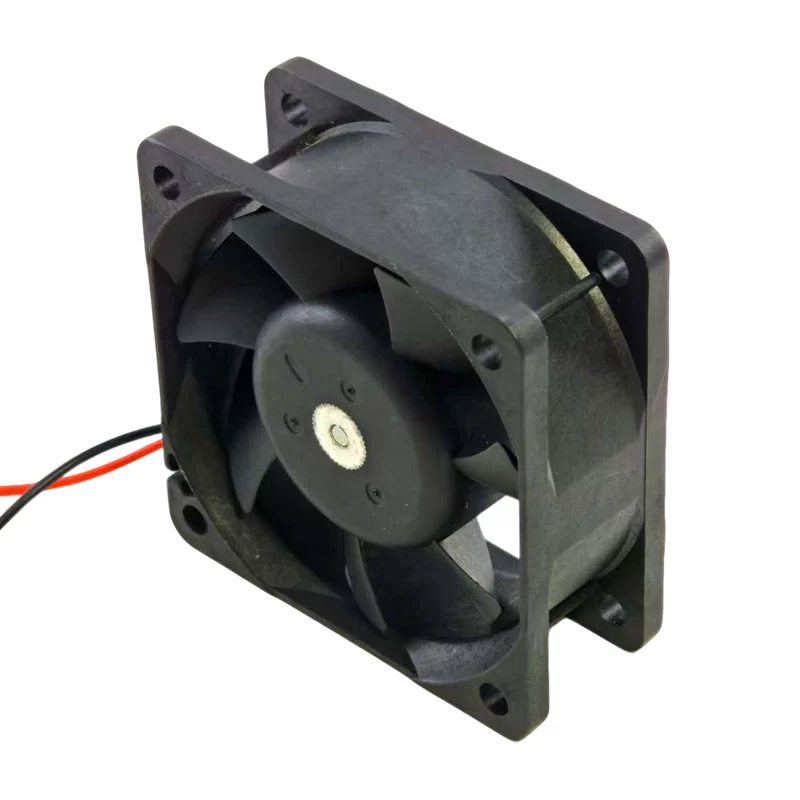

AGF06025B12U CROWN 12V DC Axial Fan

Description

The CROWN AGF06025B12U is a DC axial fan designed for efficient cooling. Measuring 60 x 60 x 25 mm, it operates at 12V DC. This fan offers two current specifications: a label current of 0.72A and a current rating of 0.45A, with a total power consumption of 8.64W. It delivers an airflow of 43.8 CFM (1.24 m³/min) and a static pressure of 0.56 inch H₂O (14.22 mmH₂O) at a speed of 6800 RPM. The noise level is 56 dB(A). It features a plastic frame and plastic impeller, both rated 94V-0, and uses a ball bearing for durability. The fan weighs 78 g and is terminated with two-wire leads.

AGF06025B12U Fan Parameters
Manufacturer: CROWN
Model: AGF06025B12U
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12V DC
Label Current: 0.72 A
Current Rating: 0.45 A
Power Consumption: 8.64 W
Airflow: 43.8 CFM
Airflow Metric: 1.24 m³/min
Static Pressure: 0.56 inch H₂O
Static Pressure Metric: 14.22 mmH₂O
Speed: 6800 RPM
Noise Level: 56 dB(A)
Weight: 78 g
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The AGF06025B12U fan is suitable for applications requiring high airflow and static pressure in a compact form factor, such as in server cooling, high-performance computing, industrial equipment, and power supplies.
