Description

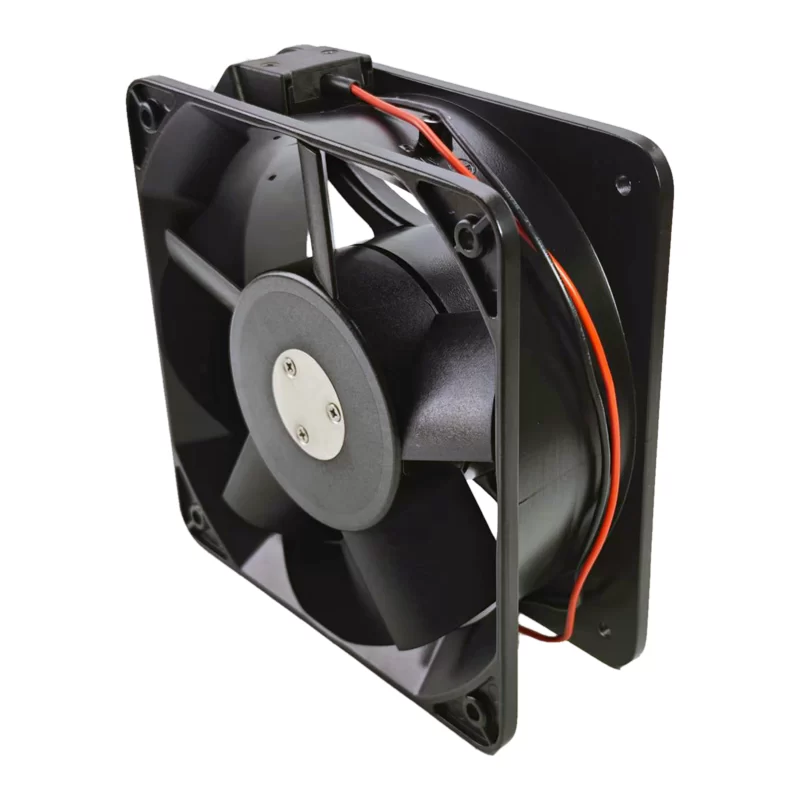

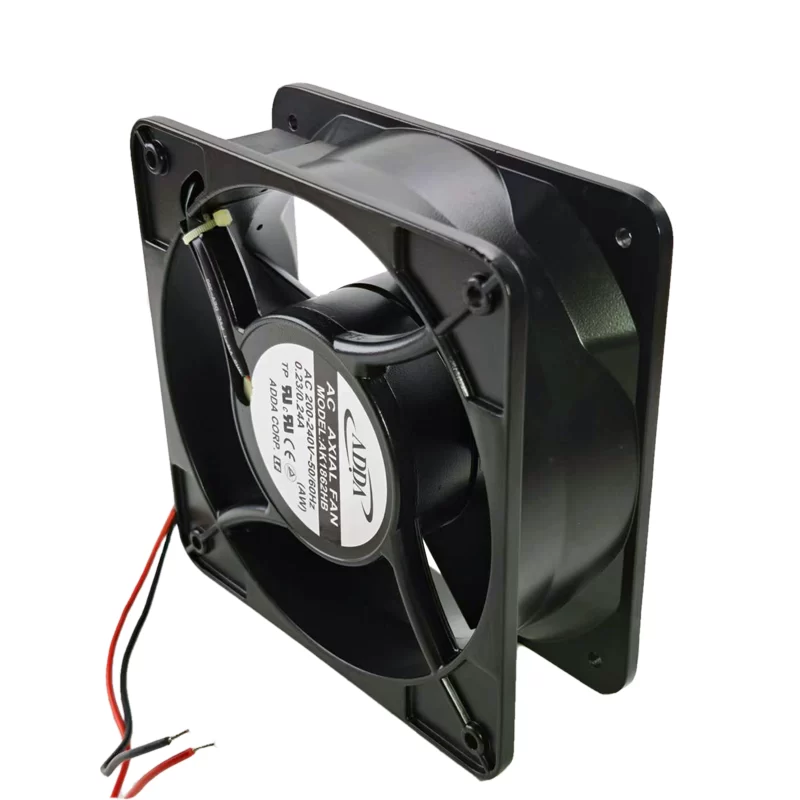

The ADDA AK1862HB is an AC Axial Fan with dimensions of 180x180x65mm. It operates across a nominal voltage range of 200-240V, providing distinct performance characteristics at both 50Hz and 60Hz. At 50Hz, it draws 0.23A of current with a power consumption of 52.9W, achieving a speed of 2800RPM, an airflow of 350CFM, a static pressure of 0.701inH2O, and a noise level of 70dBA. When operating at 60Hz, it draws 0.24A of current with a power consumption of 55.2W, reaching a speed of 3200RPM, an airflow of 410CFM, a static pressure of 0.851inH2O, and a noise level of 72dBA. This fan utilizes a ball bearing and features wire leads for termination. It is suitable for robust cooling applications in industrial equipment, large electronic enclosures, and HVAC systems requiring adaptable performance across different power frequencies.
AK1862HB Fan Parameters
Model: AK1862HB
Manufacturer: ADDA
Type: AC Axial Fan
Dimensions: 180 x 180 x 65 mm
Nominal Voltage: 200-240 V AC
Frequency: 50/60 Hz
Current Draw (50Hz): 0.23 A
Current Draw (60Hz): 0.24 A
Power Consumption (50Hz): 52.9 W
Power Consumption (60Hz): 55.2 W
Airflow (50Hz): 350 CFM
Airflow (60Hz): 410 CFM
Static Pressure (50Hz): 0.701 in H2O
Static Pressure (60Hz): 0.851 in H2O
Speed (50Hz): 2800 RPM
Speed (60Hz): 3200 RPM
Noise (50Hz): 70 dBA
Noise (60Hz): 72 dBA
Bearing: Ball bearing
Termination: Wire Leads
Weight: 1800 g
Application: Industrial equipment, electronic enclosures, HVAC systems.
