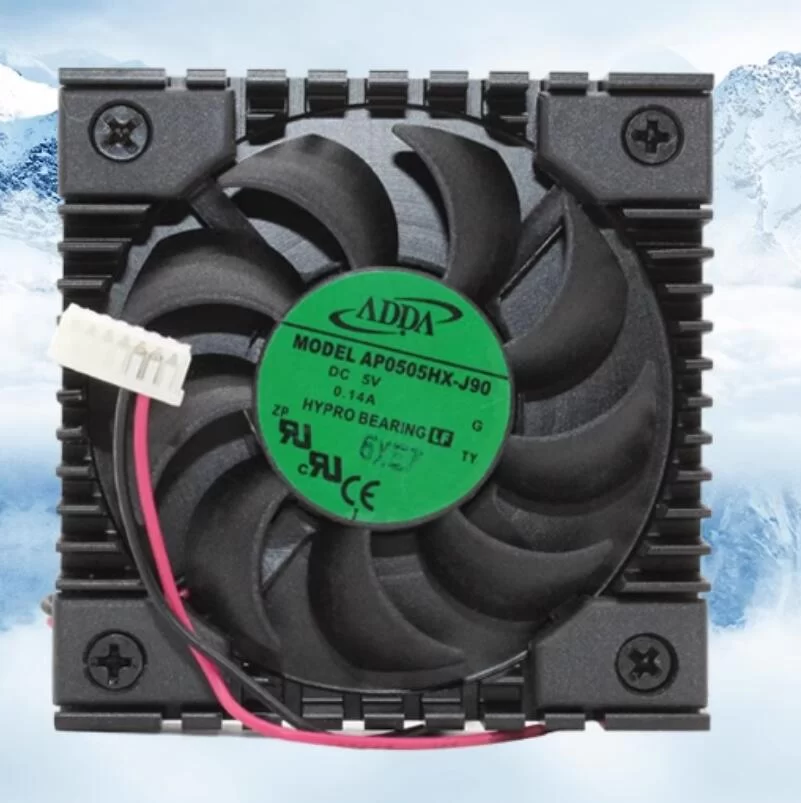

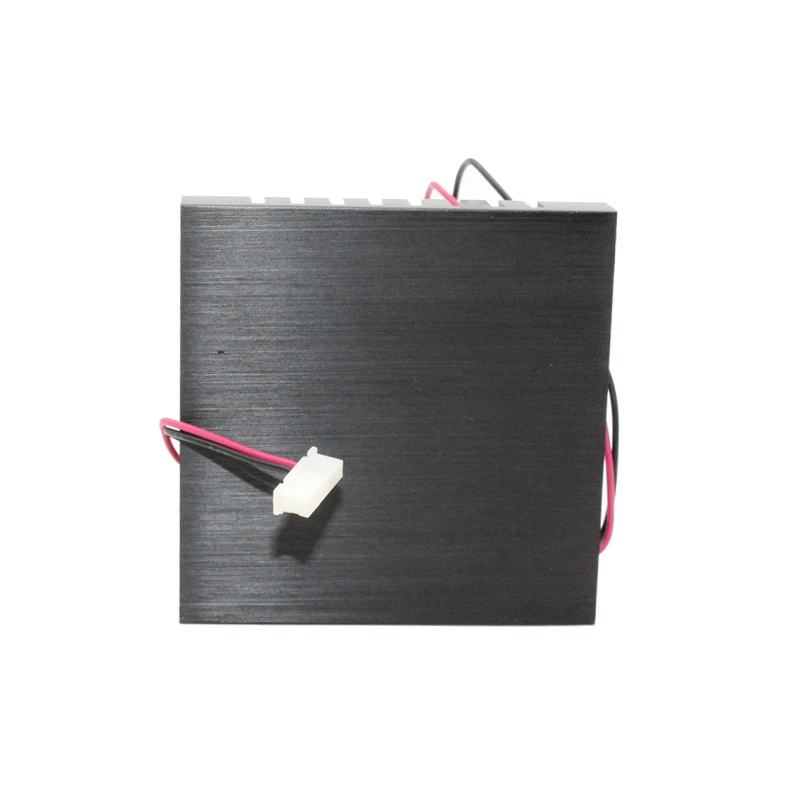

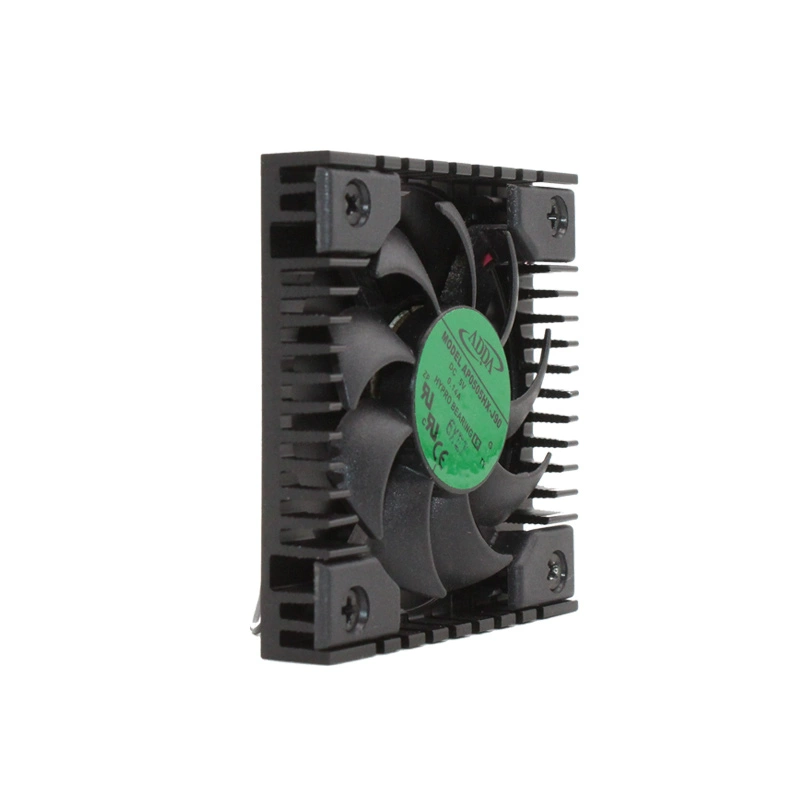

AP0505HX-J90 DC 5V 0.14A ADDA chip radiator 5cm cooling fan

Description

AP0505HX-J90 DC 5V 0.14A ADDA chip radiator 5cm cooling fan new original
Model Number: AP0505HX-J90
Manufacturer: ADDA Corporation
Series: AP 50×8 Series
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 50 mm x 50 mm x 8 mm
Rated Voltage: 5 VDC
Rated Current: 0.14 A
Input Power: 0.70 W
Wiring: 2 Wire Leads
Bearing Type: Hypro Bearing
Rotational Speed RPM: 6300 RPM
Maximum Airflow: 9.2 CFM
Maximum Static Pressure: 0.26 in H2O
Noise Level: 32.6 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Motor protective circuit
Mass: 25.3 g
The ADDA AP0505HX-J90 is an ultra-thin and compact 50x50x8mm DC axial fan from ADDA Corporation, primarily utilized as a chip cooler. Operating on 5VDC, it consumes 0.70W of power with a current draw of 0.14A. This fan employs Hypro Bearing technology for a balance of durability and relatively quiet operation at 32.6 dBA. It delivers a significant airflow of 9.2 CFM at a high speed of 6300 RPM, generating sufficient static pressure for its thin profile. Its extremely slim design makes it ideal for tight spaces in various electronic devices such as laptops, notebooks, tablets, embedded systems, and custom PCB assemblies where direct component cooling is necessary and space is at a premium.
