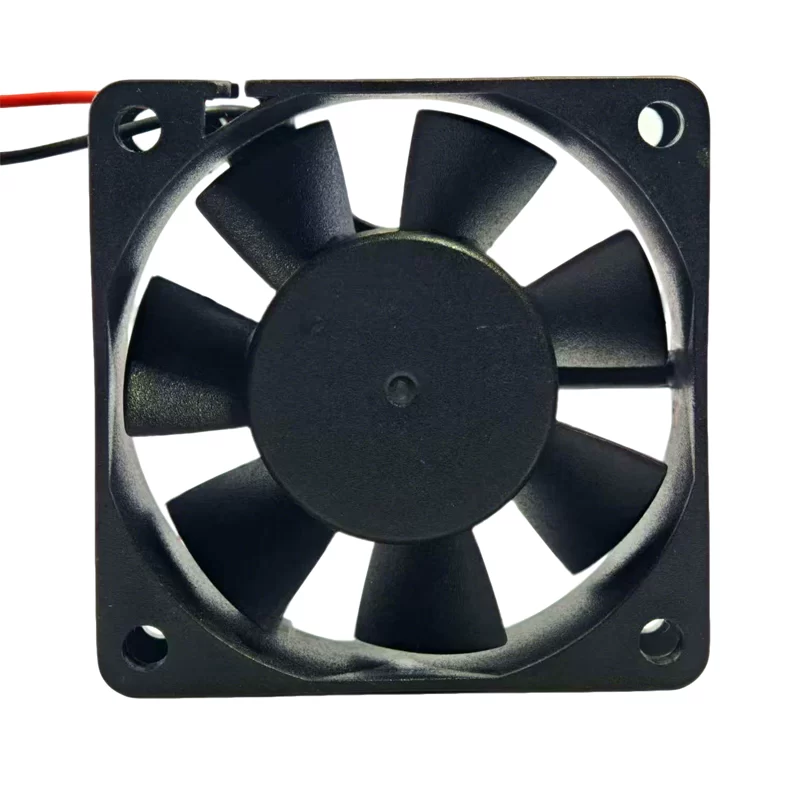

AQ0624UB-A71GL ADDA 12V DC Axial Fan

Description

The ADDA AQ0624UB-A71GL is a DC axial fan with dimensions of 60 x 60 x 25 mm. It operates on 12V DC, drawing 0.16 A of current and consuming 3.84 W of power. This fan runs at a speed of 5000 RPM, delivering an airflow of 27 CFM with a static pressure of 0.230 inch H₂O. It produces a noise level of 40 dBA. The fan uses ball bearings for reliability and is terminated with two-wire leads. It operates within a temperature range of -10 °C to 70 °C.

AQ0624UB-A71GL Fan Parameters
Manufacturer: ADDA
Model: AQ0624UB-A71GL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.16 A
Power Consumption: 3.84 W
Airflow: 27 CFM
Static Pressure: 0.230 inch H₂O
Speed: 5000 RPM
Noise Level: 40 dBA
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Weight: 64 g

Application
The AQ0624UB-A71GL fan is suitable for applications requiring reliable cooling in a compact form factor, such as in computer cases, network switches, power supplies, and other small electronic devices.
