Description

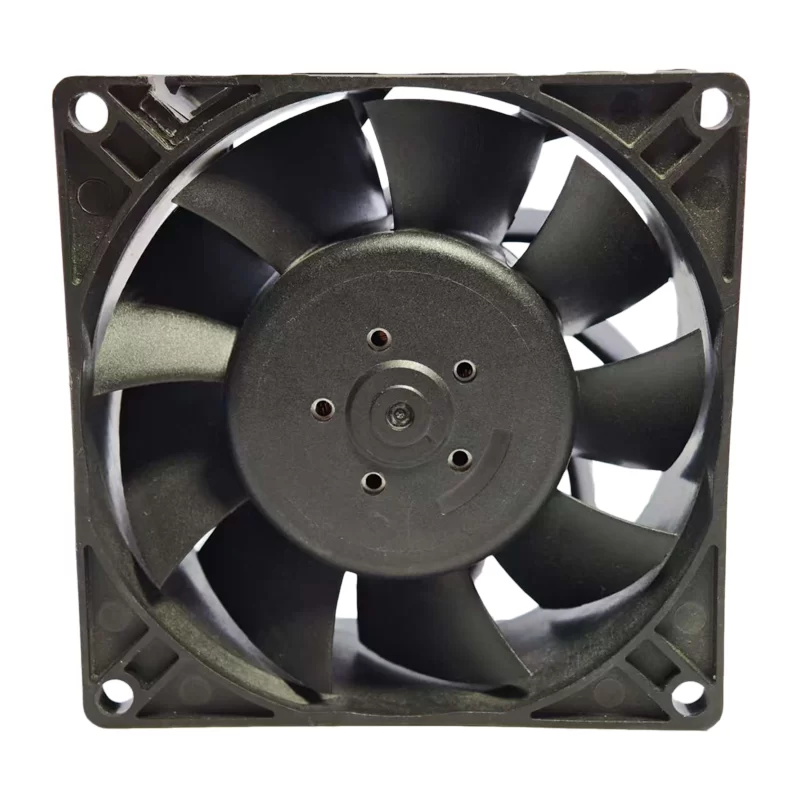

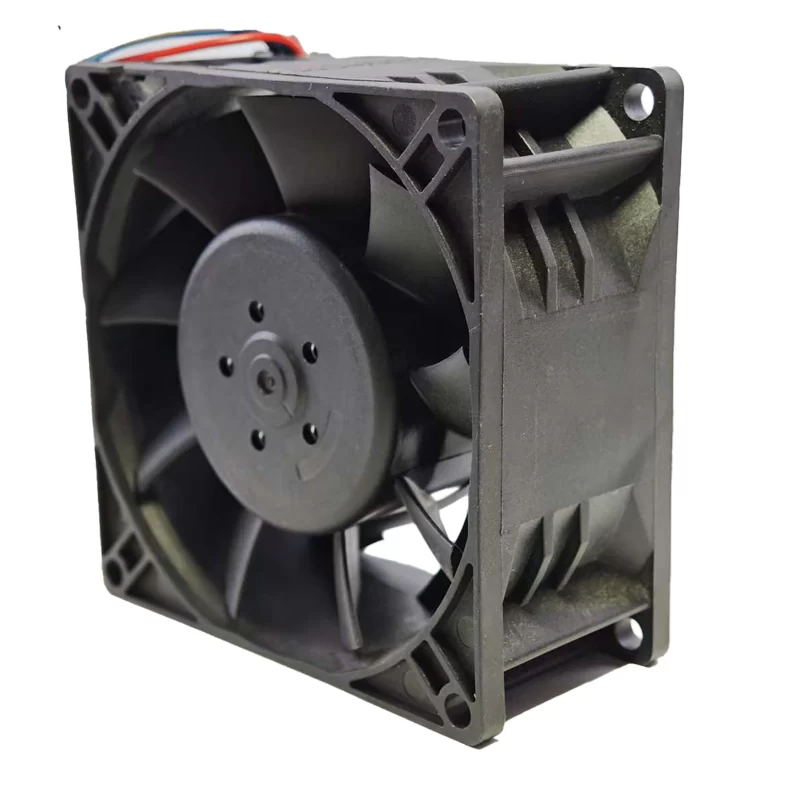

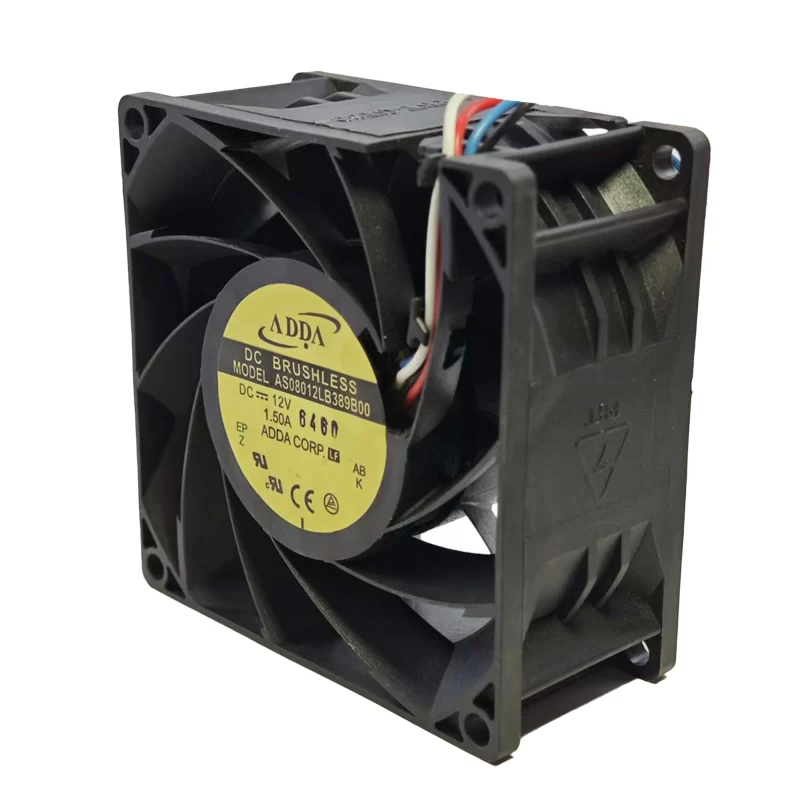

The ADDA AS08012LB389B00 is a high-performance 12V DC axial fan with dimensions of 80x80x38mm, designed for applications requiring substantial airflow and static pressure. Equipped with ball bearings, it guarantees a long operational life of 70,000 hours at 40°C, ensuring robust reliability. This fan delivers an impressive 89.823 CFM of airflow and a significant static pressure of 1.26 In H2O, making it exceptionally effective in cooling dense electronic components within servers, high-performance computing systems, and networking equipment where heat dissipation is critical. Despite its powerful performance, it operates at a noise level of 60 dBA, balancing cooling capacity with acoustic considerations.
Manufacturer: ADDA Corporation
Model: AS08012LB389B00
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 38mm
Nominal Voltage: 12V DC
Current: 1.50A
Power Consumption: 15.0W
Speed: 7000 RPM
Airflow: 89.823 CFM
Static Pressure: 1.26 In H2O
Noise Level: 60 dBA
Bearing Type: Ball Bearing
Termination: 4-wire (often includes a tachometer/FG signal for RPM monitoring, and sometimes PWM for speed control)
Life Expectancy: 70,000 hours at 40°C
Frame and Blade Material: Thermoplastic PBT (UL94V-0 flame rating)
Features: Motor protection, polarity protection, Auto-Restart, FG (Fan Good/Tachometer) signal
Safety Approvals: CE, UL, cUL, TUV
